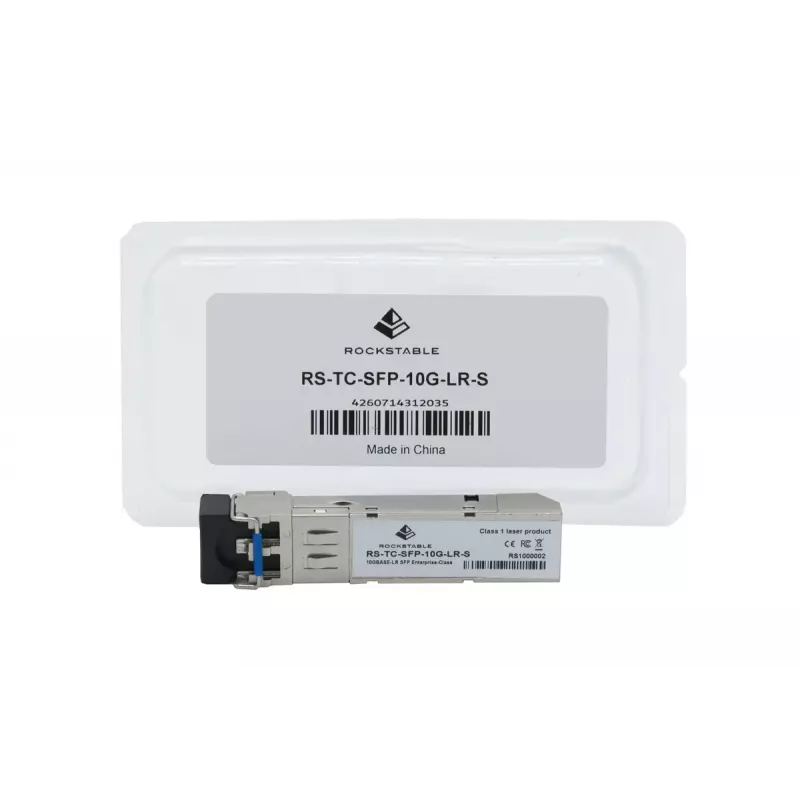

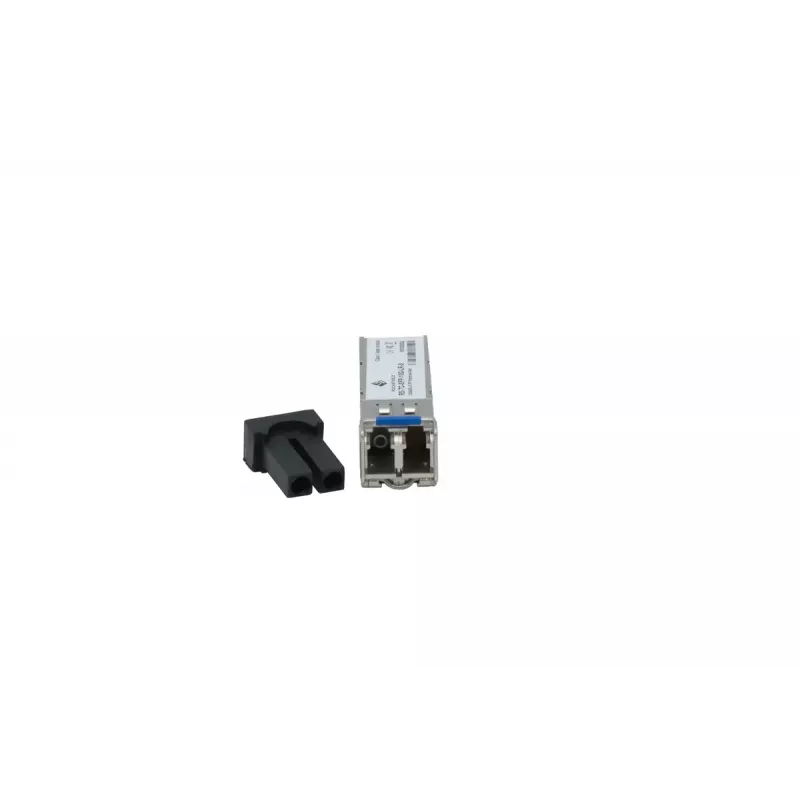

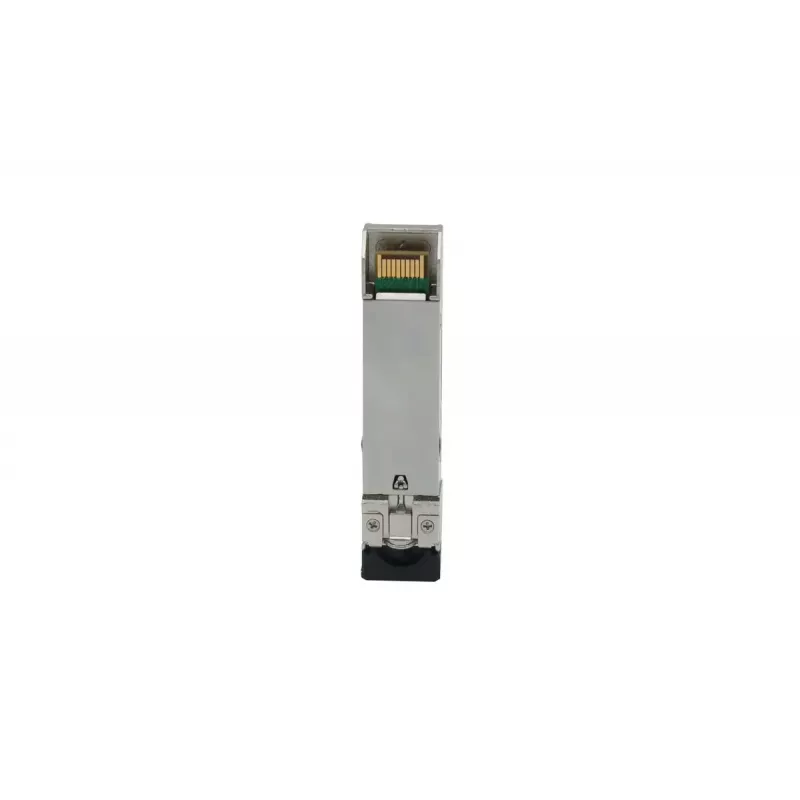

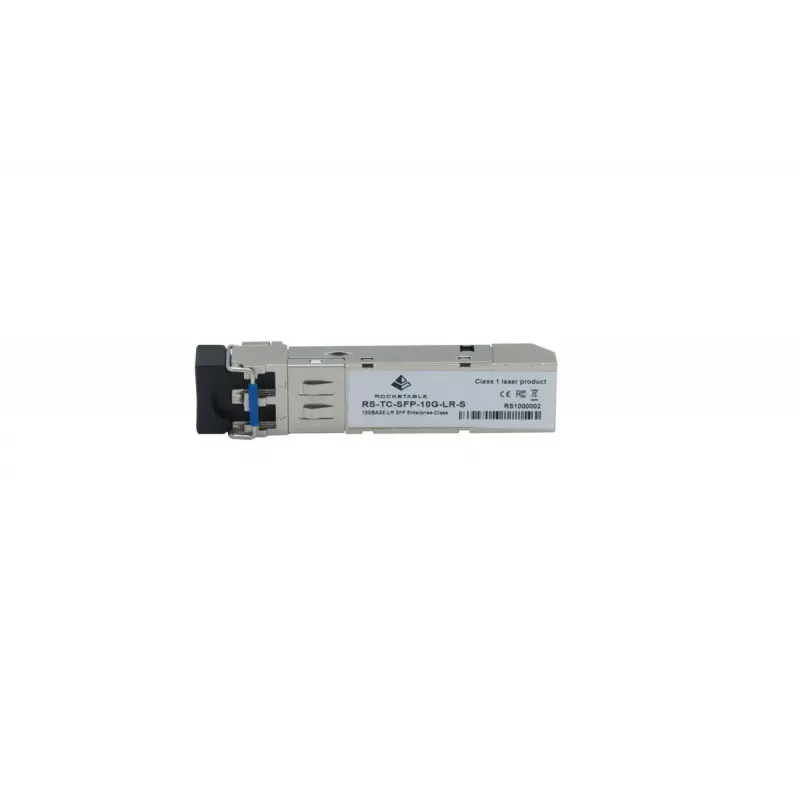

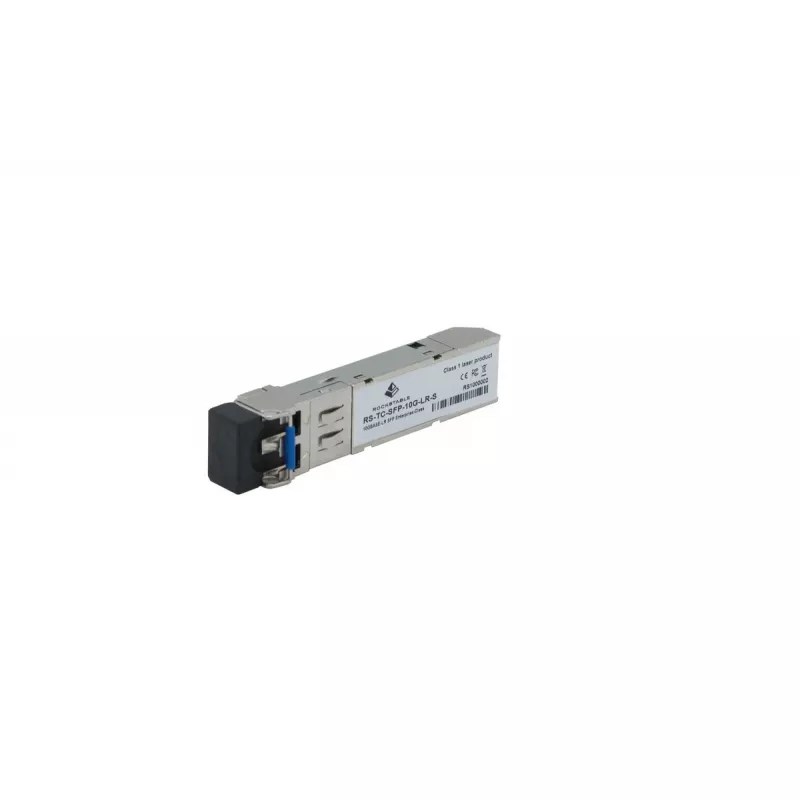

Transceptor SFP+ 10GBASE-LR de fibra óptica Rockstable — 10 Gbit/s, 1310 nm, LC, 10 km

Rockstable 10GBASE-LR SFP+ transceiver is a single-mode fiber module that supports 10 Gbit/s Ethernet over a 1310 nm wavelength. Designed for installation in SFP+ ports with LC (UPC) connectors and PC-polished fiber interfaces, this module enables long-reach links up to 10 000 meters. The module is intended for use in environments that require reliable 10 GbE uplinks, data center interconnects and campus backbone links, and it is supplied as a single unit with a compact form factor suitable for standard SFP+ cages.

Advantages

The transceiver provides a standardized 10GBASE-LR interface with LC connections and PC polishing to ensure physical compatibility with single-mode fiber infrastructures. It supports full 10 Gbit/s line rate and a typical reach of up to 10 km, allowing consolidation of long-distance Ethernet links without intermediate fiber conversion. Its SFP+ form factor saves space in network equipment and facilitates hot-swap replacement in active racks.

Suitable for

• Long-reach 10 Gigabit Ethernet uplinks between switches and routers
• Data center interconnection over single-mode fiber spans
• Campus backbone and enterprise fiber links up to 10 km
• Server to switch or switch to switch 10 GbE connections in SFP+ ports

Key specifications

• Nominal data rate: 10 000 Mbit/s
• Operating wavelength: 1310 nm
• Maximum link distance: up to 10 000 m on single-mode fiber
• Connector type: LC with UPC (PC polishing)
• Form factor: SFP+ transceiver module for standard SFP+ cages
• Typical unit weight: 0.075 kg (pack of one)

How to use

Install the transceiver into an available SFP+ slot on a compatible switch, router or network interface card, ensuring the module is fully seated and latched. Connect single-mode LC fiber patch cords with matching UPC connectors to the module ports, observing correct transmit/receive orientation. After physical installation, verify link status via the host device LEDs or management interface and configure relevant interface parameters such as speed and duplex if required by the equipment. Handle the module carefully and keep protective dust caps on the fiber connectors when not in use.

Recommendations

For reliable long-distance performance, use single-mode fiber of appropriate specification, maintain clean LC connector endfaces, and avoid excessive bending of the fiber. Verify compatibility with the host device's SFP+ slot and consult the switch or router documentation for any required firmware or configuration settings before deployment.
