Transceptor SFP BlueOptics 10052H-BO fibra óptica 1250 Mbit/s

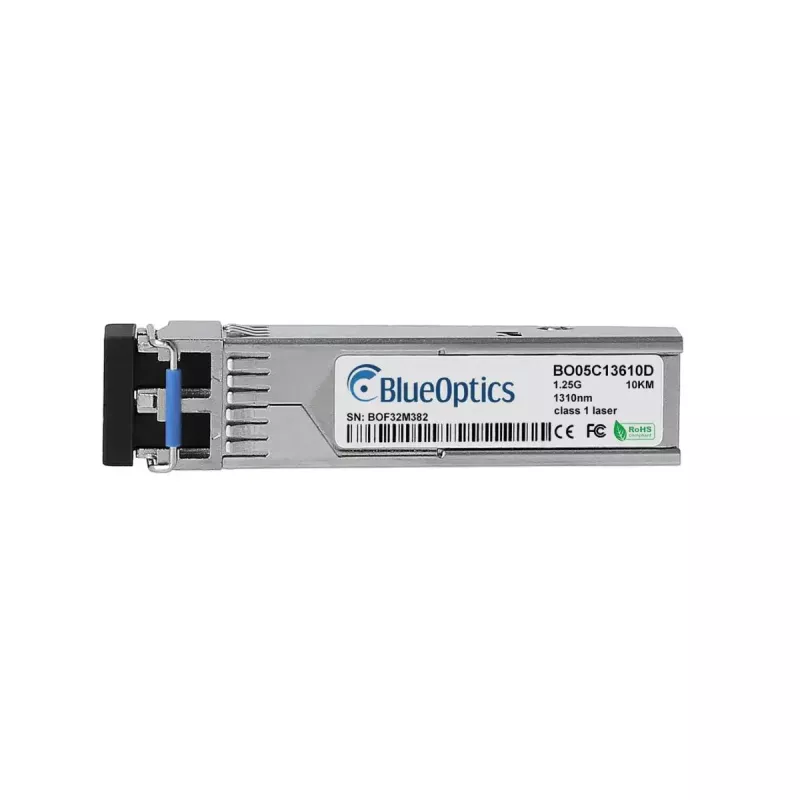

The BlueOptics 10052H-BO SFP transceiver is a compact fiber optic module designed for 1250 Mbit/s optical links. It uses an SFP interface and a nickel-coloured metal housing, and it is intended for insertion into SFP-capable network equipment that supports 1000BASE-LX-style single-mode fiber connections. The module supports LC duplex connections and is built to industry MSA standards for interoperability with major networking platforms.

Advantages

The transceiver offers a standardized SFP form factor for hot-pluggable installation and a lightweight design of approximately 20 g. It is compliant with international quality and safety standards (RoHS, CE, FCC, ISO9001) and is tested for compatibility with platforms that support the original Extreme Networks 10052H 1000BASE-LX modules. The BlueOptics module is manufactured to MSA specifications to ensure electrical and mechanical interoperability and supports optical transmission over single-mode fiber.

Suitable for

• Single-mode fiber uplinks between switches and routers
• Long-distance Ethernet links up to typical 10 km range when used with appropriate single-mode fiber
• Data centre connections and network equipment requiring SFP 1000BASE-LX compatibility
• Replacement or spare transceiver for hardware that accepts 1000BASE-LX SFP modules

Key specifications

• Interface type: SFP (hot-pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Fiber type: single-mode (LC duplex connector, transmit and receive on separate fibers)
• Typical supported application protocols: Ethernet and related high-speed optical transport
• Housing colour / material: nickel-coloured metal
• Weight: 0.02 kg

How to use

Power off or follow your device vendor’s hot-swap instructions before inserting or removing the SFP transceiver. Align the module with the SFP slot and gently insert until it latches; connect LC duplex single-mode patch cords to the transmitter and receiver ports, observing correct polarity. Configure the host device for the desired interface and verify link status through the switch or router management interface. If available, enable Digital Diagnostics Monitoring (DDM/DOM) in the host device to read supply voltage, optical power and temperature parameters for ongoing monitoring.

Recommendations

Use quality single-mode fiber and LC duplex patch cords rated for long-reach connections, and ensure the host hardware supports 1000BASE-LX SFP modules and DDM/DOM if diagnostics are required. Follow manufacturer guidelines for ESD protection and handling to maintain long-term reliability.
