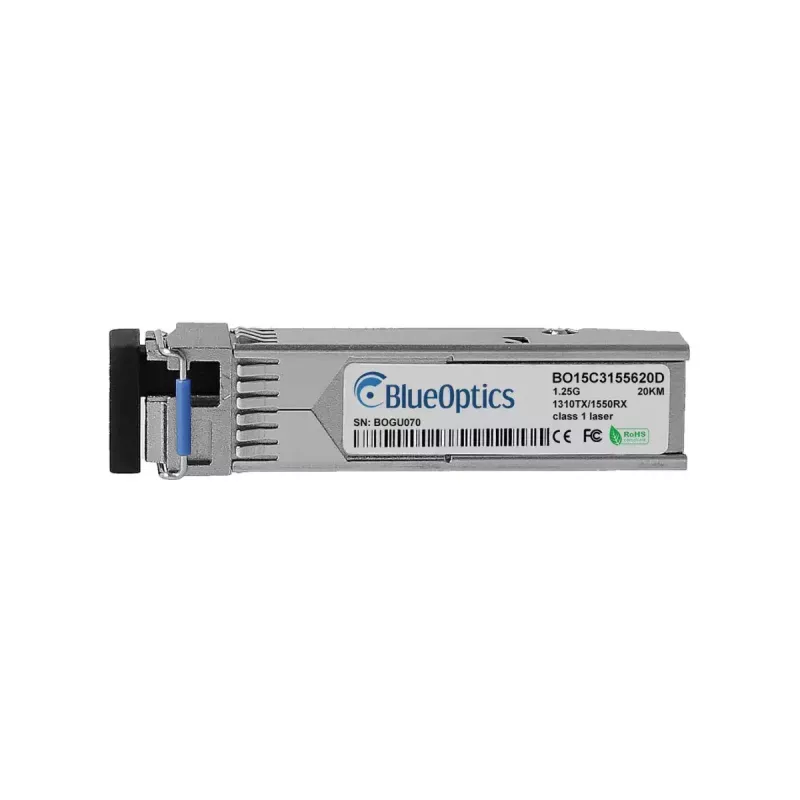

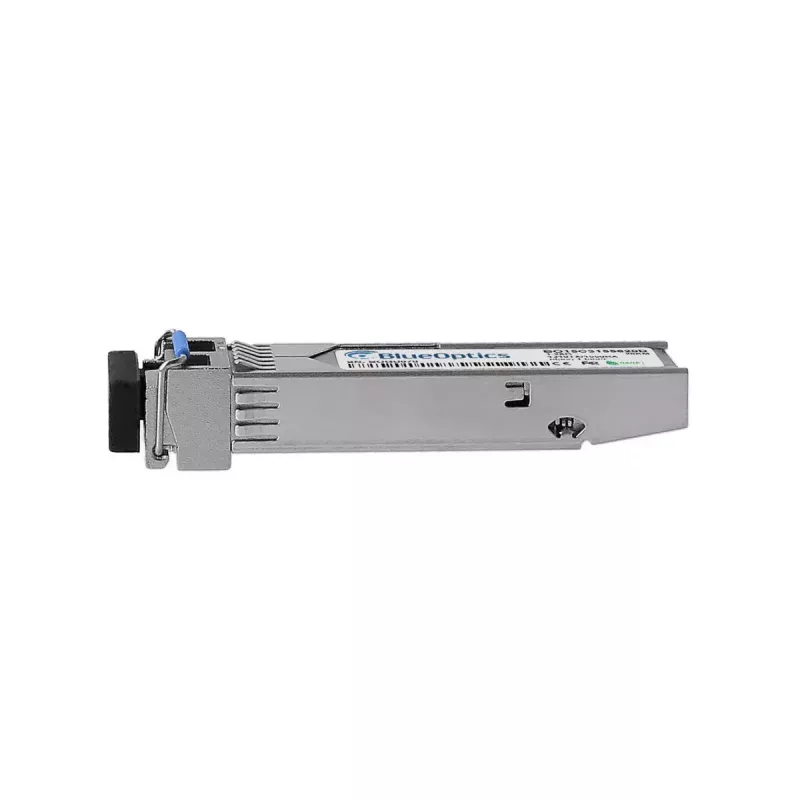

Transceptor SFP BlueOptics 507509-BO fibra óptica 1250 Mbit/s

The BlueOptics 507509-BO fiber optic SFP transceiver provides a compact, hot-pluggable interface for fiber network links with a maximum data transfer rate of 1250 Mbit/s. Its SFP form factor and silver housing allow installation in a wide range of switches, routers and optical modules that accept SFP ports. The module is specified with a high MTBF of 1,000,000 hours and complies with CE, FCC and RoHS requirements, making it suitable for professional network deployments that require standardized, single‑channel fiber connections.

Advantages

This SFP transceiver offers a standardized SFP interface for simple integration into compatible networking equipment and supports data transfer up to 1250 Mbit/s. The compact silver metal housing provides mechanical protection and ease of handling while the long MTBF indicates reliable continuous operation. Compliance with international safety and environmental standards ensures compatibility with regulated installations.

Suitable for

• Single-mode or multimode fiber links (where SFP 1250 Mbit/s modules are supported)
• Hot-swappable upgrades on switches and routers with SFP ports
• Point-to-point fiber connections in enterprise and campus networks
• Replacement modules for existing SFP-based optical links

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Housing colour: silver
• Weight: 0.02 kg (20 g)
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Ensure the host device supports SFP transceivers at the required fiber speed and type. With the host powered on or in maintenance mode depending on vendor guidance, insert the transceiver into an available SFP slot until it seats firmly. Connect the appropriate fiber cable to the transceiver’s optical interface, observing correct connector type and polarity. Verify link status on the host device and monitor for normal operational indicators; if needed, consult the network equipment’s documentation for port configuration and diagnostics.

Recommendations

Store and handle the transceiver in a clean, electrostatic-safe environment. Use dust caps when the module is not connected and avoid touching the optical ferrule. Match the transceiver to compatible fiber types and connector standards, and check host compatibility with SFP form factor and supported link speeds before installation.
