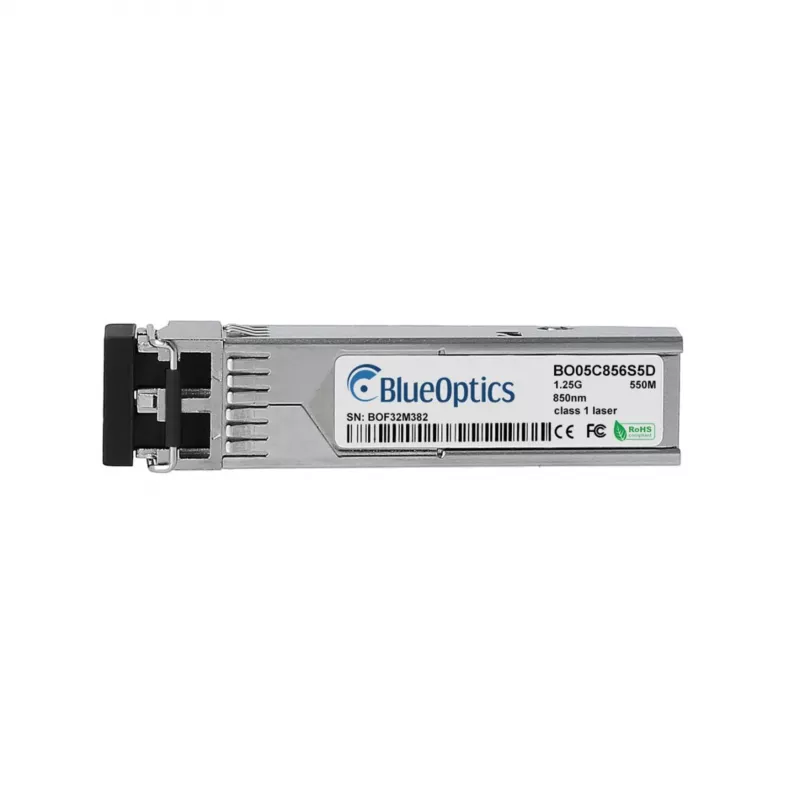

Transceptor SFP BlueOptics BO05C856S5D compatible, 1000BASE-SX, LC Duplex, 550m, para Finisar (Dell) FTLF8519P2BNL-FC

The BlueOptics BO05C856S5D is a high-performance, cost-effective SFP transceiver designed to be fully compatible with Finisar (Dell) FTLF8519P2BNL-FC and other MSA-compliant equipment. This transceiver supports 1000BASE-SX Gigabit Ethernet over multi-mode fiber, delivering reliable connectivity for enterprise networks, data centers, and telecommunications applications. With a wavelength of 850 nm and a maximum distance of 550 m over OM2/OM3 fiber, it is ideal for short-range high-speed links.

Advantages

Choose the BlueOptics BO05C856S5D for its exceptional value and uncompromised performance. It offers full compatibility with leading brands like Finisar and Dell, ensuring seamless integration into existing network infrastructure. The transceiver supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of key parameters, enhancing network management and troubleshooting. Its hot-pluggable design allows for easy installation and replacement without network downtime. Backed by rigorous testing and compliance with MSA and RoHS standards, this transceiver provides a reliable and eco-friendly solution.

Suitable for

• Gigabit Ethernet connections in enterprise LANs and data centers
• Fiber optic links requiring 1000BASE-SX standard
• Replacement or upgrade for Finisar (Dell) FTLF8519P2BNL-FC transceivers
• Multi-mode fiber (MMF) networks with LC duplex connectors
• Applications needing DDM/DOM support for proactive monitoring

Key specifications

• Transceiver Type: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-SX
• Wavelength: 850 nm
• Max Distance: 550 m (over OM2/OM3 MMF)
• Fiber Type: Multi-mode Fiber (MMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C (Commercial)
• Power Consumption: < 1 W
• Hot-Pluggable: Yes
• Compliance: MSA Compliant, RoHS
• Laser Type: VCSEL
• Power Supply: 3.3 V

Recommendations

For optimal performance, pair this transceiver with OM3 or OM4 multi-mode fiber cables and ensure your network equipment supports SFP modules. Always verify compatibility with your specific device model before installation.
