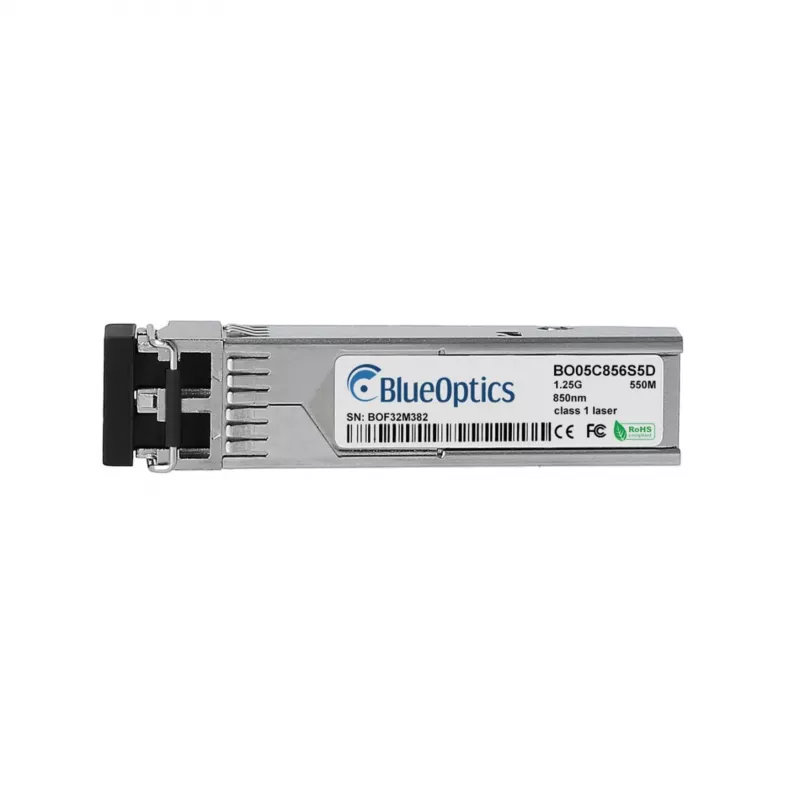

Transceptor SFP BlueOptics BO05C856S5D compatible Synology SFP-1G-SX, LC duplex, 1000BASE-SX, multimodo

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed for compatibility with Synology SFP-1G-SX network devices. It supports 1000BASE-SX standard over multimode fiber, delivering reliable Gigabit Ethernet connectivity for data centers and enterprise networks.

Advantages

This transceiver offers hot-pluggable SFP form factor, low power consumption under 1W, and Digital Diagnostic Monitoring (DDM) for real-time performance tracking. It is MSA compliant and rigorously tested to ensure seamless integration with Synology equipment.

Suitable for

• Gigabit Ethernet connections in LANs and SANs
• Short to medium range fiber optic links up to 550m
• Upgrading or expanding Synology network infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-SX
• Wavelength: 850 nm
• Connector Type: LC Duplex
• Fiber Type: Multimode (MMF)
• Max Distance: 550 m (OM2/OM3)
• DDM/DOM: Yes
• Hot-Swappable: Yes
• Power Consumption: < 1W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM3 multimode fiber patch cables and ensure proper cleaning of LC connectors. This transceiver is a cost-effective alternative to OEM modules, backed by BlueOptics quality assurance.
