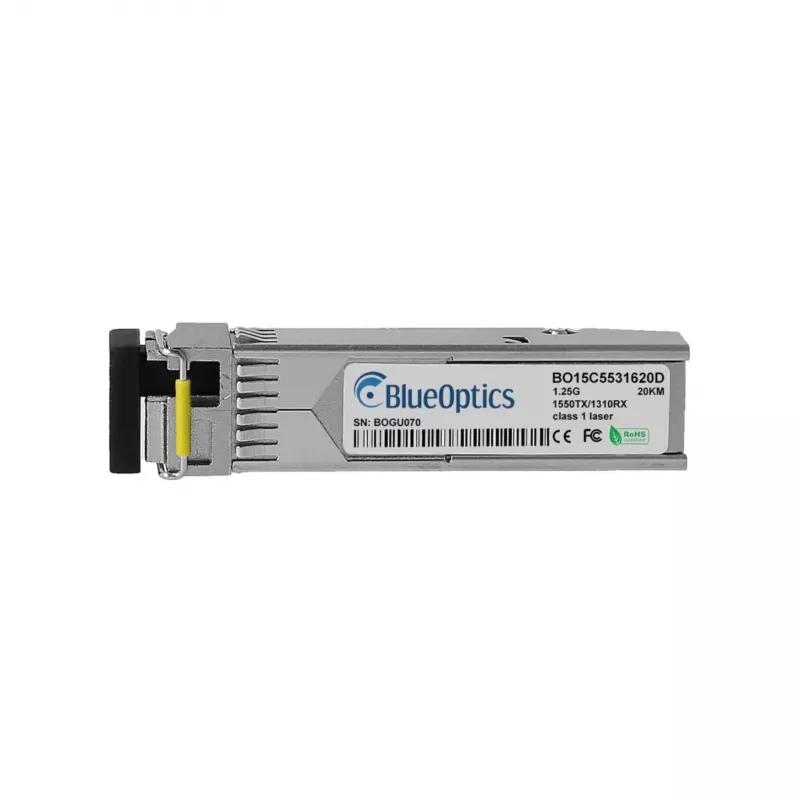

Transceptor SFP BlueOptics BO15C5531620D compatible con Synology SFP-BXD53-20KM, LC Simplex, 1000BASE-BX, 20 km

The BlueOptics BO15C5531620D is a high-performance SFP transceiver designed for compatibility with Synology SFP-BXD53-20KM. It operates on single-mode fiber and supports 1000BASE-BX Ethernet standard, delivering reliable Gigabit Ethernet connectivity over distances up to 20 km. This BiDi (Bi-Directional) transceiver uses LC simplex connector and transmits at 1490 nm while receiving at 1310 nm, making it ideal for point-to-point fiber optic links.

Advantages

This transceiver offers cost-effective compatibility with Synology networking equipment, ensuring seamless integration. It features Digital Diagnostic Monitoring (DDM) for real-time performance monitoring, hot-pluggable design for easy installation, and low power consumption under 1 W. MSA compliant and certified with RoHS, CE, and FCC, it guarantees high reliability and interoperability.

Suitable for

• Gigabit Ethernet connections in enterprise networks
• Fiber Channel storage area networks
• Long-distance single-mode fiber links up to 20 km
• Synology NAS and switch deployments requiring SFP modules

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Max Distance: 20 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Simplex
• Wavelength (Tx): 1490 nm
• Wavelength (Rx): 1310 nm
• Ethernet Standard: 1000BASE-BX
• Compatibility: Synology SFP-BXD53-20KM (MSA Compliant)
• DDM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1 W
• Hot-Pluggable: Yes
• Laser Type: DFB
• Receiver Type: PIN Photodiode
• Power Supply: 3.3 V
• BiDi: Yes

Recommendations

For optimal performance, use with single-mode fiber optic cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for Synology SFP-BXD53-20KM and is fully MSA compliant for broad compatibility.
