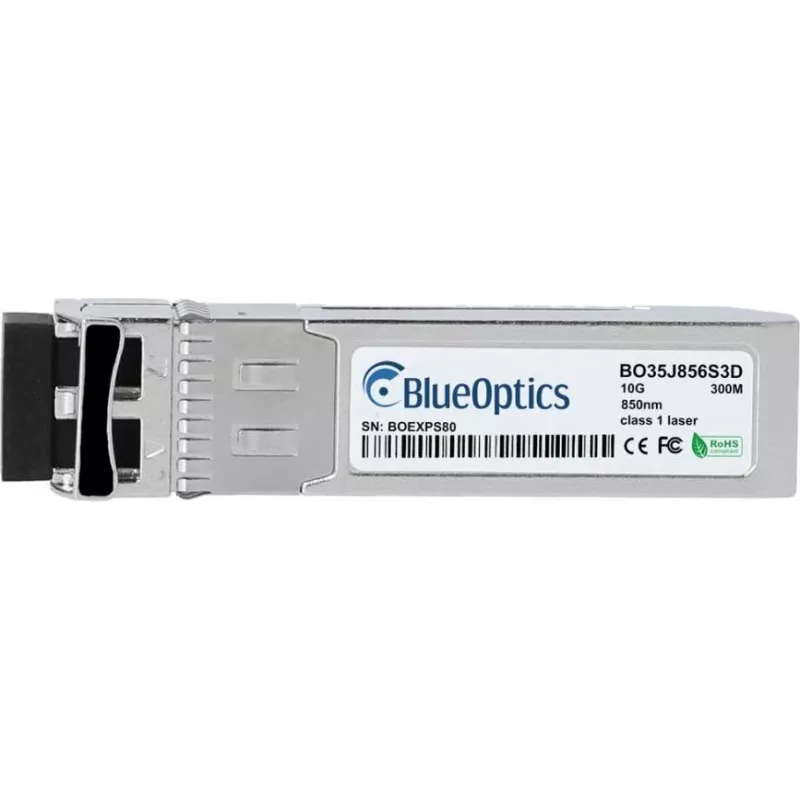

Transceptor SFP+ BlueOptics MFM1T02A-SR-F 10GBASE-SR LC-Duplex multimodo 850nm 300m 0–70°C

The BlueOptics MFM1T02A-SR-F is a compact SFP+ transceiver module designed for 10GBASE-SR short-range connections over multimode fiber. It uses an LC-duplex connector and operates at an 850 nm wavelength, supporting link distances up to 300 meters when used with appropriate multimode fiber. The module is intended for installation in switches, servers and other network equipment that require 10 Gbit/s optical connectivity within data center and enterprise network segments. The specified operating temperature range is 0°C to 70°C, suitable for standard indoor network environments.

Advantages

This BlueOptics SFP+ transceiver provides a standardized, hot-pluggable solution for 10 Gbit/s optical links, offering compatibility with multimode fiber infrastructures and LC-duplex interfaces. Its short-range design supports high-density applications in rack-mounted equipment and helps minimize cabling complexity. The module’s compact SFP+ form factor allows easy deployment in ports designed for pluggable optics without requiring additional adapters or specialized hardware.

Suitable for

Key specifications

How to use

Install the SFP+ transceiver into an empty SFP+ slot on a compatible switch, server or optical port until it latches. Connect LC-duplex multimode fiber patch cables ensuring correct transmit/receive alignment. After insertion and link-up, verify the port status and link speed via the device management interface. For removal, power down the port if required by your equipment guidelines, press the module’s actuator or release catch, and gently extract the transceiver.

Recommendations

Use OM3 or OM4 multimode fiber to achieve reliable links at distances close to the 300 m maximum. Keep dust caps on the optical interfaces when the module is not connected and perform end-face cleaning before mating connectors. Confirm transceiver compatibility with your networking equipment and firmware, and monitor temperature and link status to ensure stable operation within the 0°C to 70°C range.
