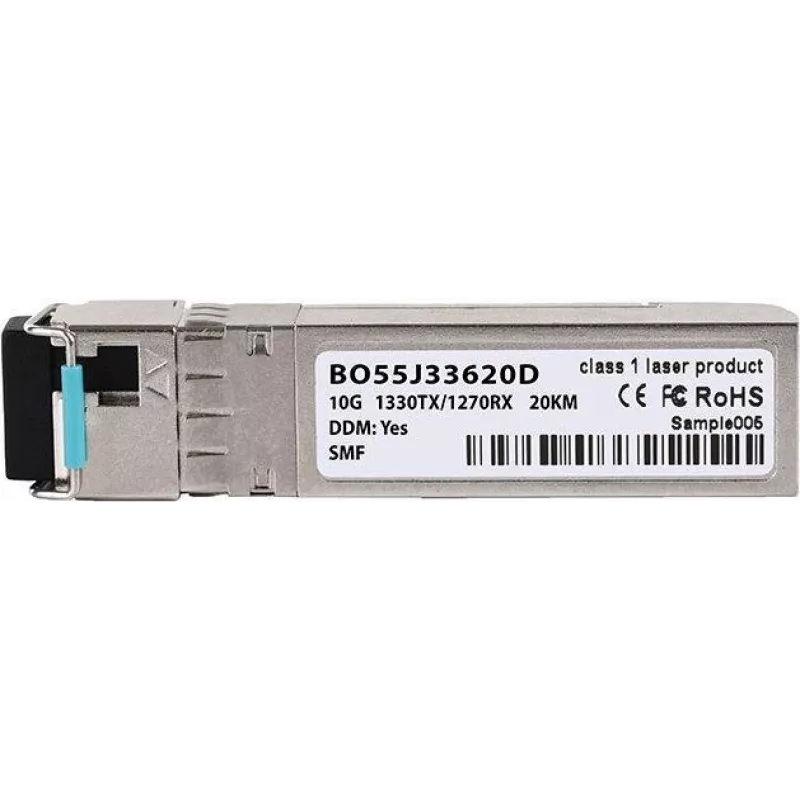

Transceptor SFP BlueOptics SFP-10G-BXD1-20-BO 10G 1330nm SFP+

The BlueOptics SFP-10G-BXD1-20-BO is a 10G SFP+ fiber optic transceiver designed for high-speed single-fiber links. It supports a maximum data transfer rate of 10,000 Mbit/s and operates with a 1330 nm transmitter wavelength paired with a 1270 nm receiver function for bidirectional 10GBASE-BX-D transmission over a single LC simplex fiber. The module is RoHS compliant, weighs approximately 20 g, and is built to industry MSA standards for mechanical and electrical compatibility. It includes digital diagnostics monitoring (DDM/DOM) compliant with SFF-8472 for real-time reporting of supply voltage, laser bias current, transmit and receive power and temperature.

Advantages

The SFP-10G-BXD1-20-BO offers a compact LC simplex form factor suitable for equipment supporting SFP+ ports. It provides long operating life with an MTBF around 3,000,000 hours and is manufactured using components from established communications suppliers to ensure stable optical performance. The integrated DDM/DOM functionality simplifies remote diagnostics and maintenance by reporting key optical and electrical parameters in real time. Compliance with MSA mechanical and electrical specifications ensures broad interoperability with common switches, routers and storage systems that accept compatible 10GBASE-BX-D SFP+ modules.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on switches, routers or other networking equipment while the host device is powered on or following the vendor's hot-plug guidelines. Connect an appropriate LC simplex patch cable to the module and the corresponding remote transceiver. Ensure the remote end is configured for the complementary BX wavelengths (one end Tx 1330 nm / Rx 1270 nm, the other end Tx 1270 nm / Rx 1330 nm) to establish a bidirectional single-fiber 10G link. Monitor link status and diagnostic parameters via the host device management interface that supports DDM/DOM if available.

Recommendations

Verify compatibility with your equipment vendor’s supported third-party transceivers and confirm that the host device supports digital diagnostics if you plan to use the monitoring features. Use single-mode fiber and LC simplex patch cables appropriate for 10GBASE-BX-D operation and consider link budget and fiber attenuation when planning distances up to the module's maximum supported reach.
