Transceptor SFP+ BlueOptics SPP-10S-ER-CDFA-BO 10000 Mbit/s

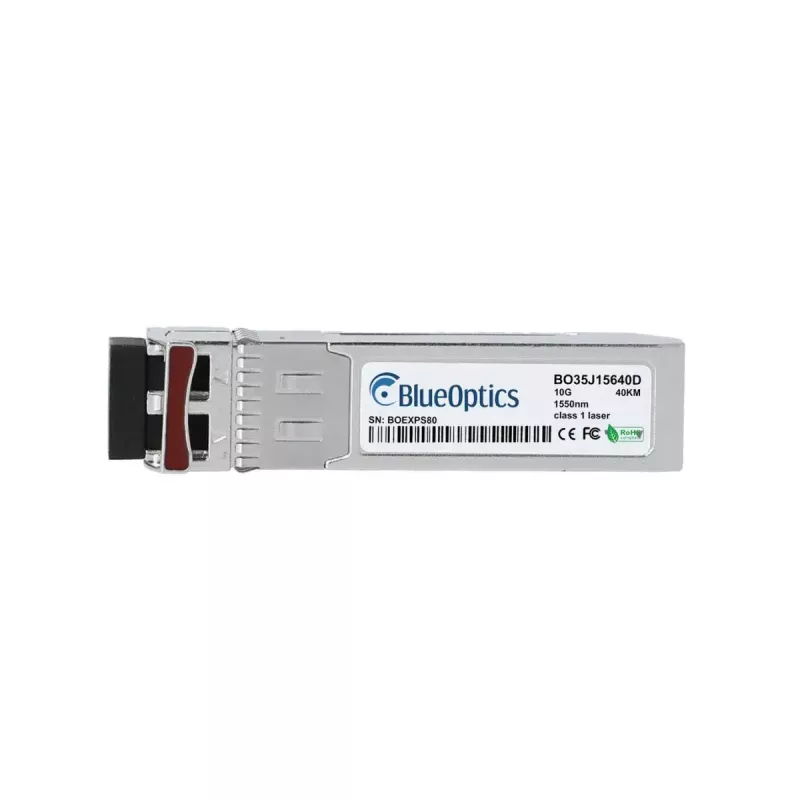

The BlueOptics SPP-10S-ER-CDFA-BO SFP+ transceiver is a compact optical module for high-speed single‑mode fiber connections. It supports a maximum data transfer rate of 10 000 Mbit/s and uses an LC duplex interface in an SFP+ form factor. Housed in a durable metal enclosure and weighing approximately 20 g, the module is designed for rack and chassis network equipment that accepts MSA‑compliant SFP+ transceivers. The product provides long operational life with a mean time between failures (MTBF) of 1 000 000 hours.

Advantages

The transceiver offers a high data rate up to 10 Gbit/s over single‑mode fiber and fits standard SFP+ ports, enabling straightforward installation and interchangeability. The metal housing provides mechanical robustness and electromagnetic shielding. A long MTBF indicates reduced maintenance cycles and sustained availability for critical links. The module's lightweight design simplifies handling during deployment.

Suitable for

• 10G Ethernet links between switches and routers over single‑mode fiber
• Fibre Channel over Ethernet and storage network uplinks
• Long‑reach optical connections in data centers and campus backbones (up to ER‑class distances)
• Replacement or expansion of MSA‑compatible SFP+ ports in networking equipment

Key specifications

• Interface type: SFP+ (LC duplex connector)
• Maximum data transfer rate: 10 000 Mbit/s (10 Gbit/s)
• Application: single‑mode fiber optical transmission
• Housing: metal enclosure
• Weight: approximately 0.02 kg
• Colour: silver
• Reliability: MTBF ~1 000 000 hours

How to use

Insert the SFP+ transceiver into an available MSA‑compliant SFP+ port on your switch, router or storage device following the host device's hot‑swap instructions. Connect an LC duplex single‑mode patch cable to the module's LC ports, ensuring correct transmit/receive orientation. Verify link status and speed on the host device management interface. If your hardware supports digital diagnostics (DDM/DOM), enable or query it through the device operating system to monitor optical power, temperature and supply parameters.

Recommendations

Use single‑mode LC duplex fiber and compatible SFP+ ports for optimum performance. Confirm host device compatibility with MSA‑compliant transceivers and enable DDM/DOM if available to monitor link health. Handle the module by its body and protect unused ports with dust caps to avoid contamination of optical interfaces.
