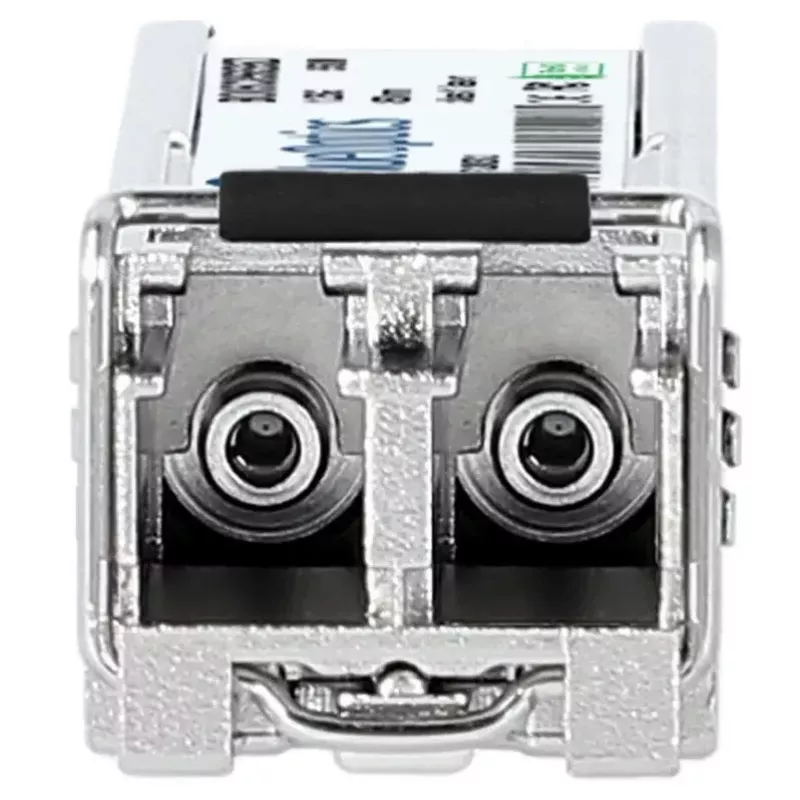

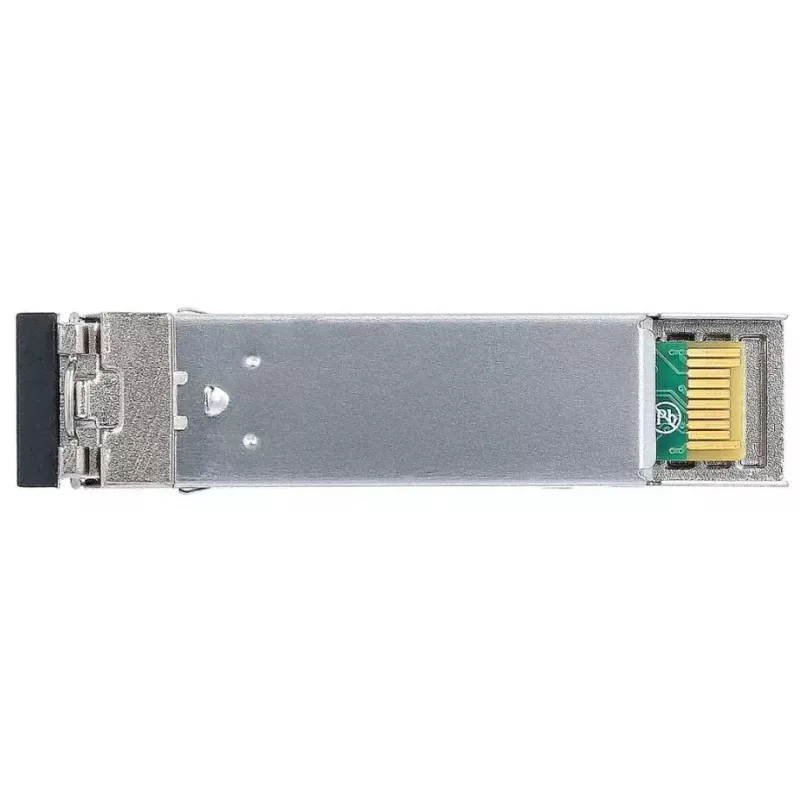

Transceptor SFP de fibra óptica BlueOptics CPAC-TR-1SX-C-BO 550 m

The BlueOptics CPAC-TR-1SX-C-BO is a fiber optic SFP transceiver designed for single‑mode/multi‑mode short‑reach optical links with data rates up to 1.25 Gbit/s and an effective transmission distance up to 550 m. Housed in an aluminium enclosure and weighing approximately 20 g, this compact SFP module uses an LC duplex optical connector and follows MSA‑compliant electrical and mechanical specifications for straightforward installation in compatible SFP ports. It supports 850 nm wavelength operation for both transmitter and receiver and is intended for reliable network connectivity in switches, routers, storage systems and other networking equipment that accept 1000Base‑SX SFP modules.

Advantages

The transceiver offers MSA‑compliant form factor and LC duplex connectivity for broad hardware compatibility. Its aluminium housing provides a lightweight, durable enclosure with a small thermal footprint. The module supports common short‑range optical applications at 850 nm and is suitable for use in environments where fiber optic links are preferred to avoid electromagnetic interference. The compact SFP design enables hot‑swappable installation and replacement without powering down supported equipment.

Suitable for

Key specifications

How to use

Power down is not required on most systems that support hot‑swappable SFP modules; confirm the host device documentation before insertion. Align the LC duplex connector and insert the transceiver into an available SFP slot until it seats securely, then connect the matching LC duplex fiber patch cord to the module. Configure the host network interface according to the system’s software procedures and verify link status and speed. For removal, disconnect the fiber patch cord, release any retention mechanism, and withdraw the module carefully.

Recommendations

Use high‑quality multimode fiber and matching LC duplex patch cords for optimal performance, keep dust caps on unused ports, and verify that the host hardware and software explicitly support 1000Base‑SX SFP modules and the Digital Diagnostic Monitoring (DDM/DOM) function if monitoring is required.
