TREND Networks Comprobador de cables y redes PoE Pro BT con detección PoE++

The TREND Networks PoE Pro BT stands apart from ordinary network testers by combining full IEEE 802.3bt (PoE++) analysis with essential cable verification in a single handheld unit. While many testers stop at basic PoE presence, this device identifies the exact PoE type (1–4) and class (0–8), measures voltage, current, and power up to 90 W, and even emulates a powered device to prove the PSE can deliver the required wattage. Technicians no longer need separate tools for cable wiremapping and PoE troubleshooting—the PoE Pro BT handles both, reducing truck stock and speeding up every job.

Highlights

• Supports IEEE 802.3af, 802.3at, and 802.3bt (PoE++) standards
• Detects PoE Type 1, Type 2, Type 3, and Type 4, plus Class 0–8
• Measures PoE voltage, current, and power up to 90 W
• Powered Device (PD) emulation verifies PSE capability under load
• Integrated cable tester with wiremap, length measurement (TDR), and tone generator
• Detects network speed 10/100/1000 Mbps and supports Power over HDBaseT (PoH)
• Backlit LCD for clear visibility in dark wiring closets
• Runs on 6 x AA batteries—no proprietary charger needed

In daily use

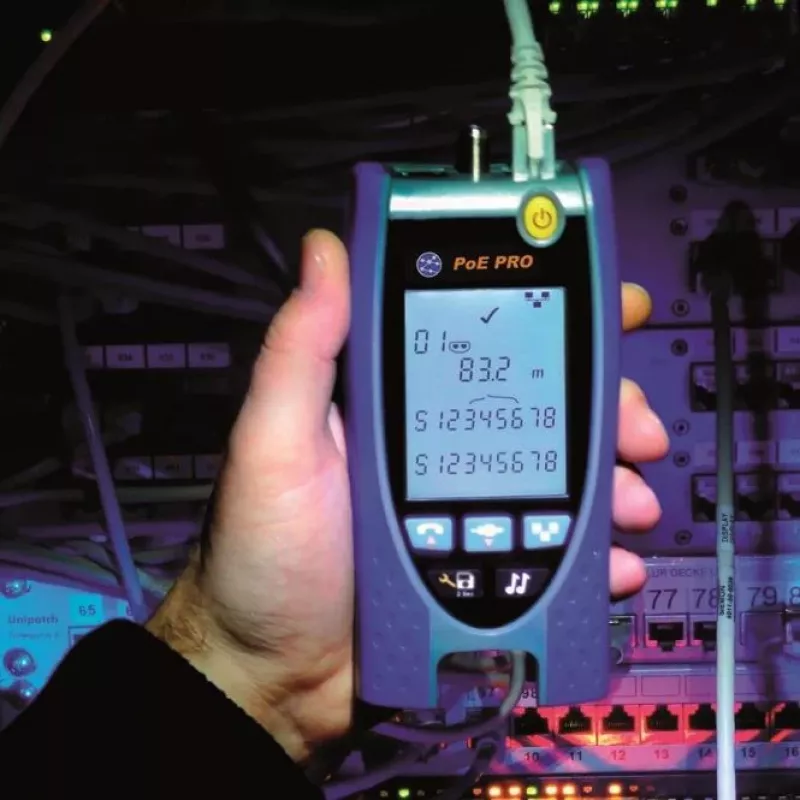

Imagine walking into a facility where a new 802.11ax access point requires 60 W of PoE. With the PoE Pro BT, you connect inline between the switch and the AP, and the display immediately shows the negotiated PoE class, actual voltage and current, and the power being drawn. If the switch cannot supply enough power, the PD emulation mode lets you simulate the AP's load to confirm the PSE's limits. Then, switch to cable test mode to check the drop for split pairs or excessive length—all without swapping tools. The analogue and digital tone generator helps trace cables through bundles, and the port blink function identifies the correct switch port remotely.

Full specifications

• PoE standards: IEEE 802.3af, 802.3at, 802.3bt (Type 3 and Type 4)
• PoE detection: Type 1–4, Class 0–8
• Maximum PoE power measurement: 90 W
• PoE voltage and current measurement: Yes
• Powered Device (PD) emulation: Yes
• Network speed detection: 10/100/1000 Mbps (Gigabit Ethernet)
• Cable test: Wiremap (opens, shorts, miswires, split pairs)
• Cable length measurement: Yes, TDR technology, up to 150 m (500 ft)
• Tone generator: Analogue and digital
• Port blink function: Yes
• Display: Backlit LCD
• Power source: 6 x AA batteries
• Ports: RJ45
• Test modes: Inline (pass-through) and Endpoint
• Power over HDBaseT (PoH) support: Yes
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -20 °C to 70 °C
• Operating relative humidity: 10% to 90% (non-condensing)
• Product colour: Black
• Battery type: AA
• Battery technology: Alkaline
• Battery voltage: 1.5 V
• Battery capacity: Not specified
• Charging time: Not applicable (non-rechargeable batteries)
• Storage pouch: Not included
• Battery charger included: No
• Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Supported connectors: RJ45
• Test type: PoE testing, cable testing, network testing

Final note

The PoE Pro BT is more than a tester—it's a complete PoE and cable troubleshooting solution that pays for itself by eliminating guesswork and return visits. For any technician working with modern PoE++ infrastructure, this is the tool that keeps you one step ahead.
