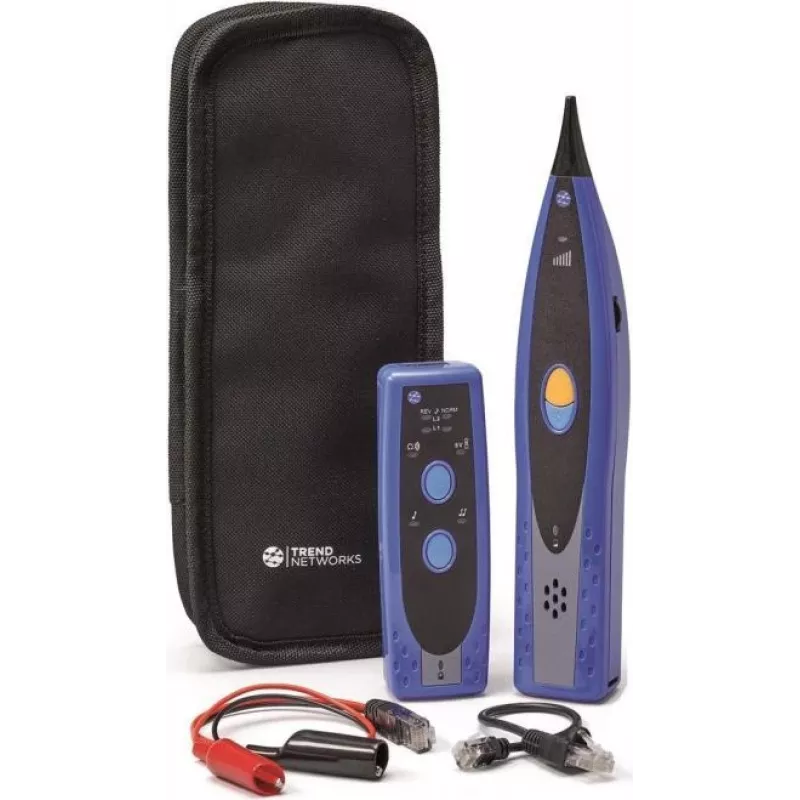

TREND Networks Kit generador de tonos inductivo Tone+Probe II con sonda

The TREND Networks Tone+Probe II is a professional inductive tone generator and probe kit designed for locating and tracing cables in telecommunications and data networks. This kit includes the R180001 tone generator and R180000 probe, providing reliable performance for identifying wires, testing continuity, and verifying polarity.

Advantages

Dual-tone output (1000 Hz and 1500 Hz) for clear identification even in noisy environments. Inductive probe with signal strength LEDs and built-in speaker for precise tracing. Includes alligator clip cables for RJ11 and RJ45 connectors, ensuring compatibility with various cable types.

Suitable for

• Network technicians and installers
• Telecommunications maintenance
• Data center cable management
• Audio/visual and security system wiring

Key specifications

• Tone Generator Output Power: 10 dBm
• Tone Frequencies: 1000 Hz and 1500 Hz (Dual Tone)
• Connectors: RJ11, RJ45, Alligator Clips
• Probe Detection: Inductive
• Probe Indicators: Signal Strength LEDs, Line Voltage LED (up to 100V AC/DC)
• Power Source: 2x 9V PP3 batteries (included)
• Battery Life: >50 hours
• Auto Power Off: After 3 hours inactivity
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 50°C
• Safety Compliance: CE, RoHS

Recommendations

This kit is ideal for professionals who need a reliable and easy-to-use solution for cable tracing and testing. The inductive probe eliminates the need for direct contact, reducing the risk of damage to sensitive equipment.
