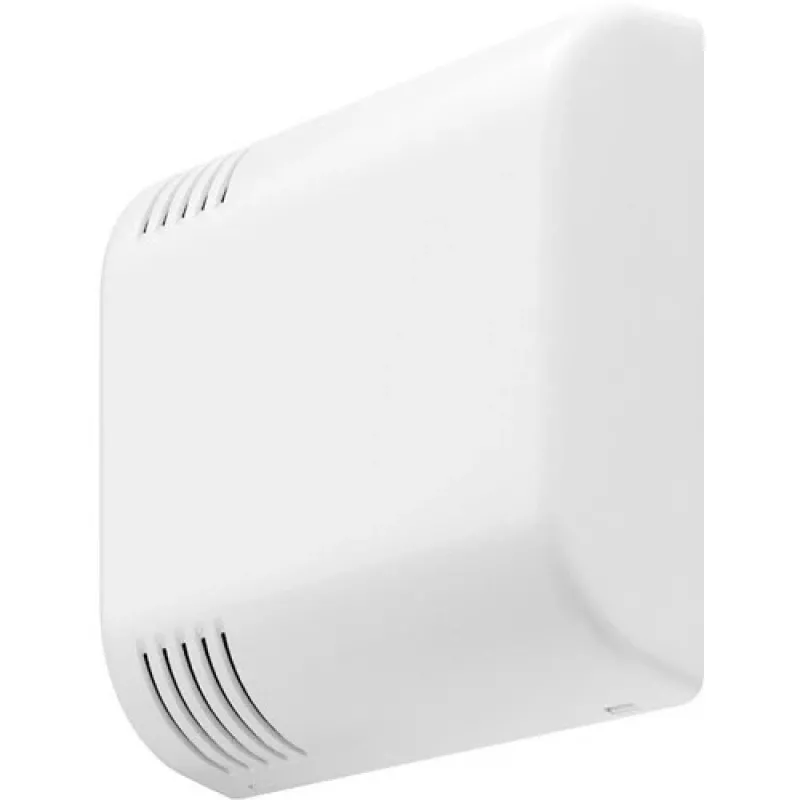

Triton ROPAM RHT-AQ-RN sensor de temperatura, humedad y calidad del aire por cable

The Triton ROPAM RHT-AQ-RN is a wired indoor sensor that measures temperature, relative humidity, and air quality (VOC and CO2 equivalent). Designed for integration with ROPAM control panels, it provides accurate environmental monitoring for residential and commercial applications.

Advantages

High accuracy temperature and humidity sensing with ±0.5°C and ±3% RH respectively. The metal oxide semiconductor (MOx) air quality sensor detects volatile organic compounds and estimates CO2 levels up to 60000 ppm. Automatic baseline correction ensures long-term stability. Easy wall-mount installation with ABS plastic enclosure.

Suitable for

• Indoor air quality monitoring in homes, offices, and commercial spaces
• Integration with ROPAM NeoGSM-IP, OptimaGSM, MultiGSM, BasicGSM, and Vision series control panels
• HVAC optimization and ventilation control

Key specifications

• Temperature measurement range: -20°C to +60°C
• Temperature accuracy: ±0.5°C at 25°C
• Humidity measurement range: 0% to 100% RH
• Humidity accuracy: ±3% RH at 25°C, 20-80% RH
• Air quality sensor: Metal oxide semiconductor (MOx) for VOC
• CO2 equivalent measurement range: 400 - 60000 ppm
• Power supply: 12V DC from ROPAM control panel
• Current consumption: Max 30 mA
• Communication: ROPAM Digital Bus (4-wire)
• Mounting: Wall-mounted
• Enclosure material: ABS plastic
• Operating temperature: -20°C to +60°C
• Operating humidity: 0% to 95% RH (non-condensing)

Recommendations

Use with ROPAM control panels for comprehensive environmental monitoring. Ensure proper wiring with 4-wire shielded cable (not included). Suitable for indoor use only.
