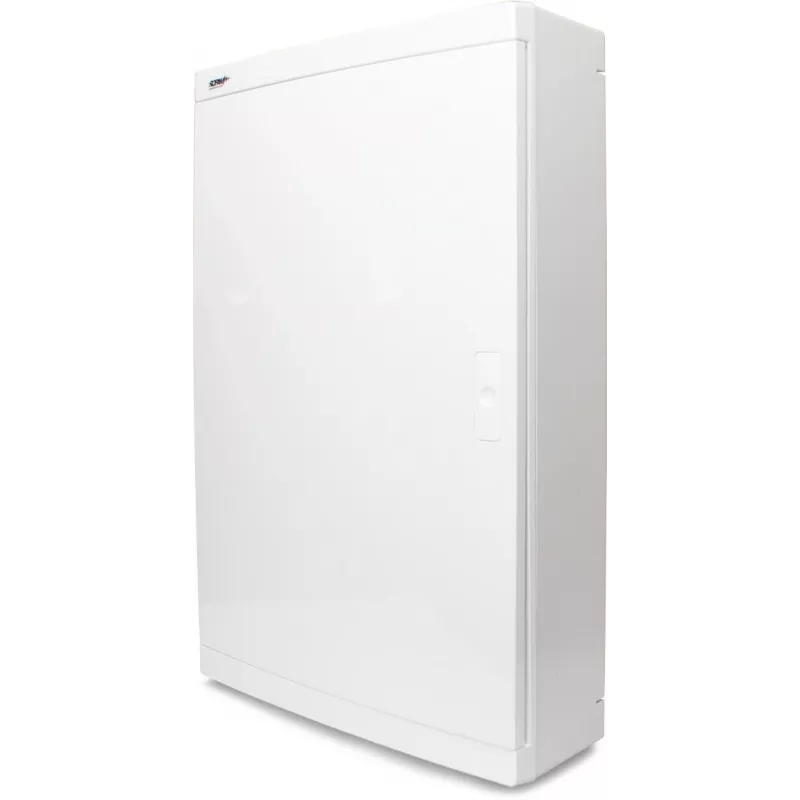

Caja ROPAM O-R3D12 350x475x104 mm, 3 carriles DIN (3x12), ampliable, blanca

The ROPAM O-R3D12 is a robust electrical enclosure designed for housing alarm systems, automation components, and electrical distribution modules. With dimensions of 350x475x104 mm, it features 3 DIN rails accommodating 12 modules each, providing a total capacity of 36 modules. The enclosure is expandable via connections, allowing for future upgrades. Made from durable ABS plastic in white, it is suitable for indoor surface mounting and offers an IP30 protection rating.

Advantages

This enclosure offers a spacious and organized layout for electrical components, with easy expandability through connection points. The solid opaque door with latch mechanism ensures secure containment, while the ABS material provides durability and lightweight handling. The knockouts allow for flexible cable entry, simplifying installation.

Suitable for

• Alarm and security systems
• Building automation controllers
• Electrical distribution boards
• Industrial control panels

Key specifications

• Brand: ROPAM
• Model: O-R3D12
• Dimensions: 350 x 475 x 104 mm
• Number of DIN rails: 3
• Modules per rail: 12
• Total module capacity: 36
• Material: ABS plastic
• Colour: White
• IP rating: IP30
• Door type: Opaque solid
• Locking: Latch
• Mounting: Surface mount (wall)
• Expandable: Yes
• Cable entry: Knockouts
• Operating temperature: -10°C to +50°C
• Standards: CE compliant

Recommendations

For optimal installation, ensure the enclosure is mounted on a flat, sturdy wall surface. Use appropriate cable glands for the knockouts to maintain IP rating. The expandable design allows for adding more modules as needed, making it a future-proof solution for growing systems.
