ROPAM PIR-ari Sensor PIR inalámbrico digital para interiores para sistema ARI

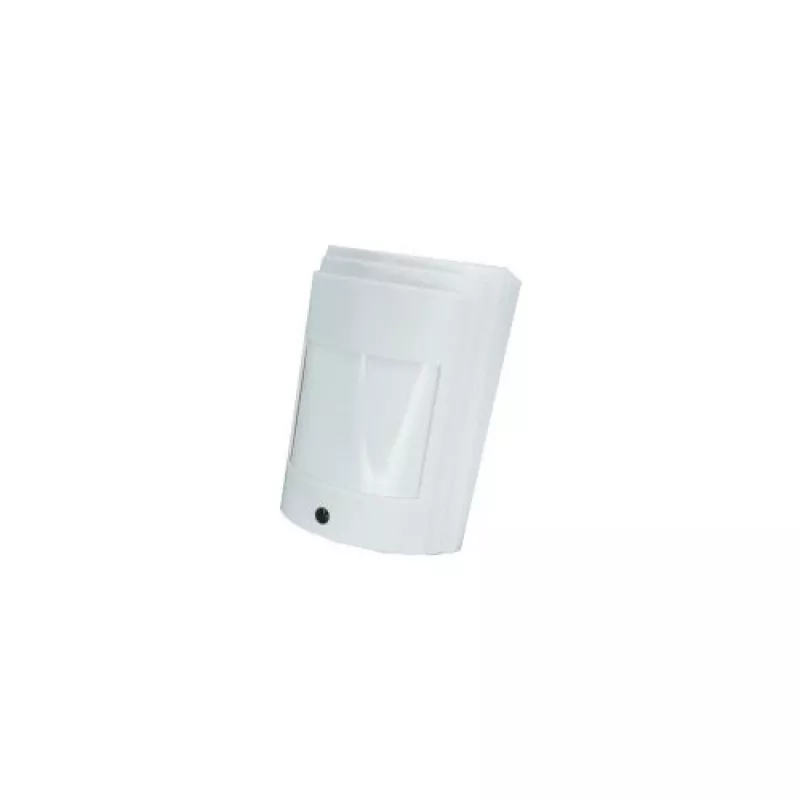

The ROPAM PIR-ari is a digital, wireless passive infrared (PIR) motion sensor designed for indoor use within the ROPAM ARI security system. It provides reliable motion detection with advanced digital signal processing and temperature compensation, ensuring minimal false alarms.

Advantages

Wireless 868 MHz connectivity for easy installation without cabling. Digital signal processing and temperature compensation reduce false triggers. Long battery life of up to 2 years with a single CR123A lithium battery. Tamper protection against opening and removal for enhanced security.

Suitable for

• Indoor motion detection in residential and commercial premises
• Integration with ROPAM ARI series control panels (e.g., NeoGSM-IP-64, OptimaGSM)
• Areas requiring reliable, low-maintenance security sensors

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Method: Motion Detection
• Connectivity: Wireless (868 MHz, ROPAM ARI System)
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years (typical)
• Detection Range: Up to 12 meters
• Detection Angle: 90 degrees
• Operating Temperature: -10°C to +55°C
• Mounting Type: Wall / Corner
• Housing Material: ABS Plastic
• Encryption: AES-128
• Alarm Output: Wireless signal to control panel

Recommendations

For optimal performance, install the sensor at a height of 2-2.5 meters, avoiding direct sunlight and heat sources. Pair with a compatible ROPAM ARI control panel for full system integration.
