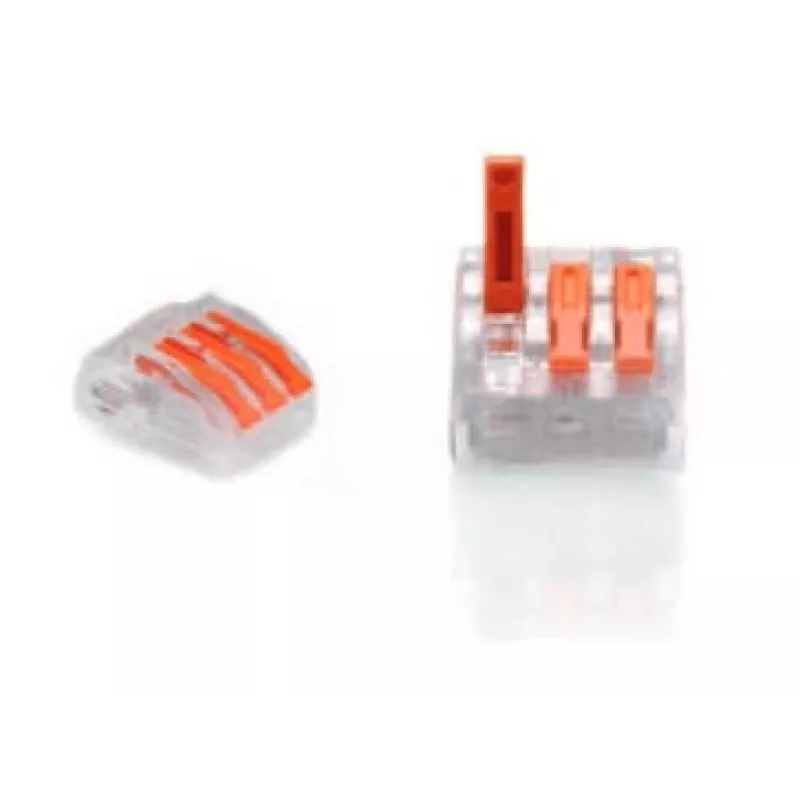

TRYTYT PC-233 Conector de empalme rápido con palanca de 3 vías 0,2-4,0 mm² 50 uds. transparente naranja

The TRYTYT PC-233 is a high-quality 3-way lever-operated splicing connector designed for fast, tool-free wiring. Ideal for electrical installations, junction boxes, lighting, and HVAC applications, this connector ensures secure and reliable connections for solid, stranded, and fine-stranded wires.

Advantages

Lever-actuated spring clamp technology allows for quick and easy connection without tools. The transparent housing provides visual inspection of the connection, while the orange levers offer clear indication of open/closed status. Reusable design reduces waste and cost.

Suitable for

• Electrical wiring in residential and commercial buildings
• Junction boxes and distribution boards
• Lighting installations
• HVAC systems
• DIY and professional electrical projects

Key specifications

• Connector Type: Lever-operated Splicing Connector
• Number of Conductors: 3-way
• Wire Cross-Section (Solid/Stranded): 0.2 - 4.0 mm² (AWG 24-12)
• Wire Cross-Section (Fine-Stranded): 0.14 - 4.0 mm² (AWG 26-12)
• Rated Voltage: 450 V
• Rated Current: 32 A
• Max. Ambient Temperature: 105 °C
• Insulation Material: Polycarbonate (PC)
• Contact Material: Electrolytic Copper, Tin-plated
• Flammability Rating: UL94 V-2
• Stripping Length: 9 - 10 mm
• Colour: Transparent housing, Orange levers
• Quantity per Pack: 50 pieces
• Certifications: CE, RoHS Compliant

Recommendations

For optimal performance, ensure proper stripping length and fully close the lever after insertion. Suitable for use with solid, stranded, and fine-stranded copper conductors. Always follow local electrical codes and regulations.
