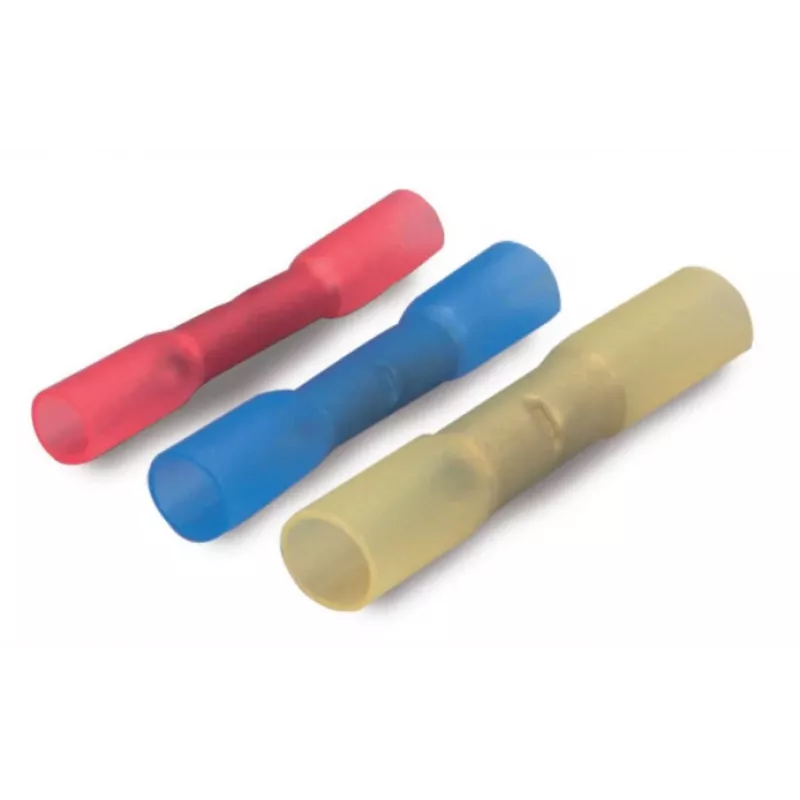

TRYTYT TTS-25 Conector termorretráctil con tubo de cobre estañado (10 uds.)

The TRYTYT TTS-25 is a high-quality heat shrink butt connector designed for reliable and durable electrical connections. Featuring a tinned copper tube and heat shrinkable polyolefin insulation, this connector ensures excellent conductivity and protection against environmental factors. Ideal for use in electrical wiring, automotive, marine, and industrial applications, the TTS-25 provides a secure and waterproof connection with an IP67 rating when properly installed.

Advantages

This connector offers superior corrosion resistance and a wide operating temperature range from -55°C to +125°C. The 2:1 shrink ratio ensures a tight fit, while the adhesive lining provides a waterproof seal. With a voltage rating of 600 V and UL94 V-0 flammability rating, it meets high safety standards.

Suitable for

• Electrical wiring and cable splicing
• Automotive and marine electrical systems
• Industrial control panels and machinery
• Outdoor and harsh environment installations

Key specifications

• Connector Type: Heat Shrink Butt Connector
• Conductor Material: Tinned Copper
• Insulation Material: Heat Shrinkable Polyolefin
• Wire Cross-Section Compatibility: 25 mm²
• Pack Quantity: 10 pieces
• Shrink Ratio: 2:1
• Operating Temperature Range: -55°C to +125°C
• Minimum Shrink Temperature: 80°C
• Full Recovery Temperature: 120°C
• Voltage Rating: 600 V
• Waterproof Rating: IP67 (with adhesive lining)
• Flammability Rating: UL94 V-0
• Insulation Color: Transparent / Clear
• Corrosion Resistance: Yes
• Standards Compliance: RoHS

Recommendations

For best results, use a heat gun to shrink the connector evenly. Ensure the wire is properly stripped and inserted before heating. Suitable for use with copper conductors only.
