TSC Alpha-30L Healthcare 8 puntos/mm 203dpi RTC USB USB-C BT WLAN EPLII - impresora - 203 dpi

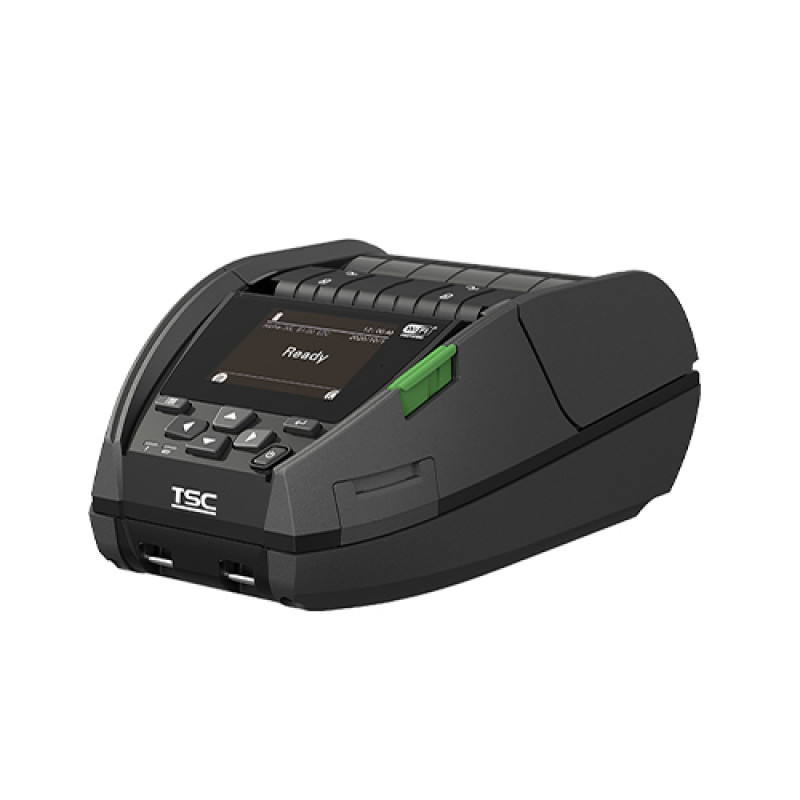

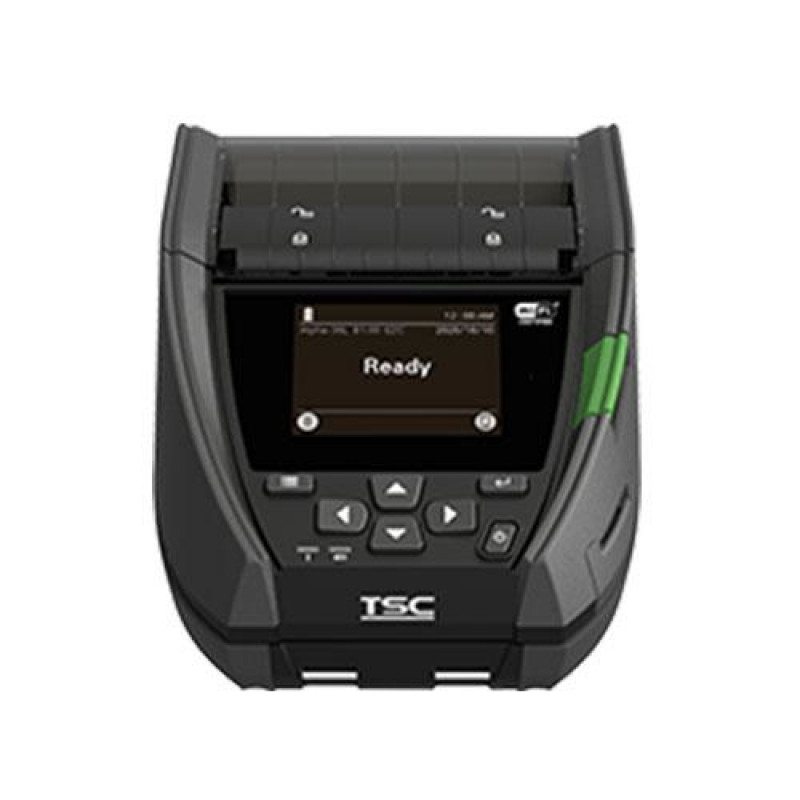

In healthcare environments, accurate labeling at the point of care is critical for patient safety and operational efficiency. The TSC Alpha-30L Healthcare mobile label printer eliminates the need for pre-printed labels or trips to a central printer, enabling staff to print specimen, medication, and wristband labels right where they are needed. Its compact, rugged design and wireless connectivity make it an ideal companion for nurses, lab technicians, and field healthcare workers who require reliable, on-demand printing in dynamic settings.

Who is it for

This printer is tailored for healthcare professionals, including nurses, phlebotomists, laboratory staff, and home healthcare providers. It is also suitable for retail, logistics, and field service applications where mobile, high-quality label printing is essential. Its IP54 rating and drop resistance ensure durability in demanding environments, while the intuitive color LCD simplifies operation for all users.

Main features

• High-resolution 203 dpi direct thermal printing for crisp text, barcodes, and graphics.
• Multiple connectivity options: USB 2.0, USB-C, Bluetooth 5.0, and Wi-Fi 802.11a/b/g/n/ac for flexible integration.
• Real-time clock (RTC) for accurate time-stamping on labels, crucial for specimen tracking and medication administration.
• 2.3-inch color LCD display for easy status monitoring and configuration.
• Rugged design with IP54 rating and 1.0 m drop specification, built to withstand daily use.
• Supports a wide range of media types including die-cut, black mark, continuous, and receipt labels.
• Powerful 32-bit RISC processor with 64 MB SDRAM and 128 MB Flash for fast processing and storage of label formats.
• Emulates TSPL-EZD, compatible with EPL, ZPL, and ZPL II, ensuring seamless integration with existing systems.

Specifications

• Print technology: Direct thermal
• Maximum resolution: 203 x 203 DPI
• Maximum print width: 72 mm (2.83 inches)
• Maximum print speed: 127 mm/s (5 ips)
• Connectivity: USB 2.0, USB-C, Bluetooth 5.0, Wi-Fi 802.11a/b/g/n/ac
• Memory: 64 MB SDRAM, 128 MB Flash
• Display: 2.3-inch color LCD

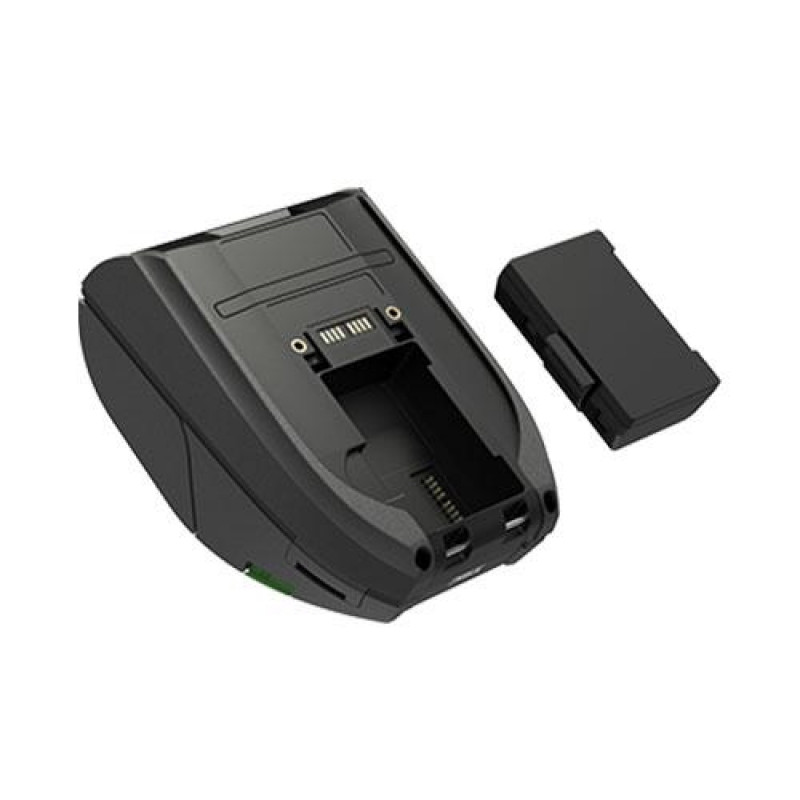

• Battery: Rechargeable Li-ion 3030 mAh
• IP rating: IP54
• Drop specification: 1.0 m (3.3 ft)
• Media types: Roll-fed labels, die-cut, black mark, continuous, receipt
• Maximum media roll diameter: 57.9 mm (2.28 inches)
• Sensors: Gap sensor, black mark sensor, head open sensor, door open sensor
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: 158 mm x 110 mm x 67 mm (W x D x H)
• Weight: 0.6 kg (1.32 lbs)

Tips

To maximize battery life, use the auto power-off feature when the printer is idle. For optimal print quality, use TSC-certified labels and clean the print head regularly with isopropyl alcohol. When connecting via Wi-Fi, ensure your network supports 2.4 GHz or 5 GHz bands for best performance. The RTC can be synchronized with your network time server to maintain accurate timestamps across all printed labels.
