TSC MX240P 8 puntos/mm 203dpi Rewind RTC Pantalla TSPL-EZ USB RS232 - Impresora de etiquetas - Impresora de etiquetas

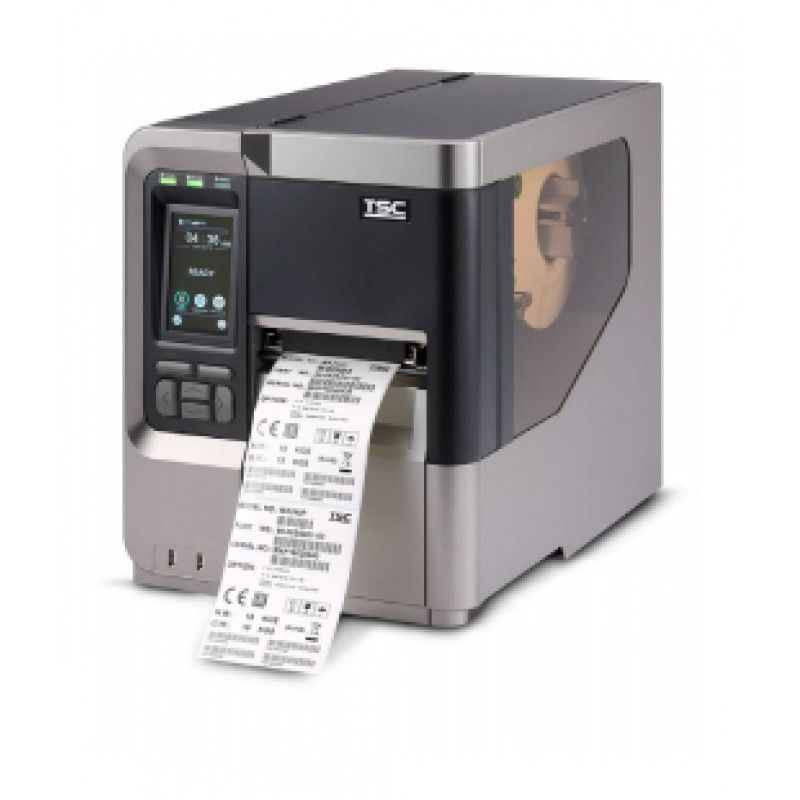

In high-volume logistics, manufacturing, and retail environments, label printing bottlenecks can cripple throughput. The TSC MX240P industrial barcode label printer eliminates these delays with a rugged die-cast aluminum frame, a fast 14 ips print engine, and advanced media handling including internal rewinding. It delivers crisp 203 dpi labels up to 4.09 inches wide, making it ideal for shipping labels, product identification, and compliance tagging. The 4.3-inch color touch panel and real-time clock simplify operation and time-sensitive applications.

Who is it for

This printer is built for warehouses, distribution centers, and production lines that demand reliable, around-the-clock label output. It suits IT administrators and operations managers who need seamless integration with existing systems via USB, RS-232, or Ethernet, and who value low-maintenance, heavy-duty hardware.

Main features

• Direct thermal and thermal transfer printing at 203 dpi resolution
• Blazing 14 ips (356 mm/s) print speed for maximum productivity

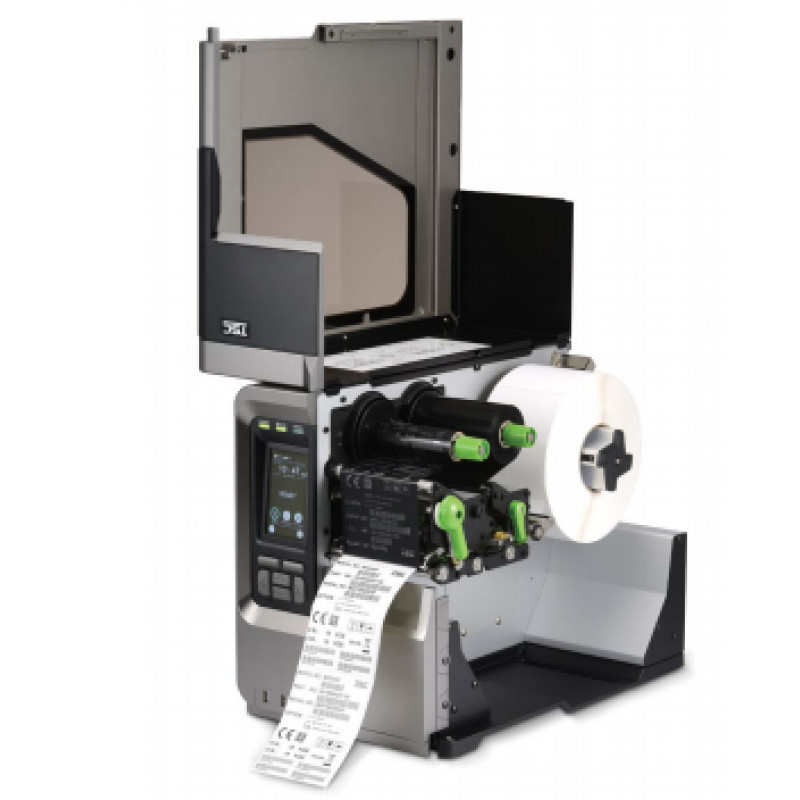

• Internal rewinder for full roll or liner take-up, enabling unattended batch jobs
• 4.3-inch color LCD touch display for intuitive setup and monitoring
• Real-time clock for automatic date/time stamping on labels
• 256 MB SDRAM and 512 MB Flash for large label formats and graphics
• Standard connectivity: USB 2.0, RS-232, Ethernet, USB Host, and Parallel
• Supports TSPL-EZD printer language, compatible with TSPL, TPLE, and TPLZ
• Die-cast aluminum enclosure for durability in industrial settings
• Handles media rolls up to 8 inches outer diameter and ribbons up to 600 meters

Specifications

• Print technology: Direct thermal / thermal transfer
• Maximum resolution: 203 x 203 dpi
• Maximum print width: 4.09 inches (104 mm)
• Maximum print length: 999 inches (25,397 mm)
• Print speed: 14 ips (356 mm/s)
• Memory: 256 MB SDRAM, 512 MB Flash
• Processor: 32-bit RISC
• Media types: Die-cut, continuous, fan-fold, notched, black mark, linerless
• Ribbon length: 600 meters
• Operating temperature: 5 to 40 °C (41 to 104 °F)
• Power supply: Internal universal switching power supply (AC 100-240V, 50-60Hz)
• Certifications: FCC Class A, CE Class A, C-Tick Class A, UL, cUL, TUV/GS, CCC, EAC, KC, SABS, BIS, BSMI

Tips

Pair the MX240P with high-quality thermal transfer ribbons and labels to maximize printhead life and barcode scannability. Use the internal rewinder when printing large batches to keep labels neatly rolled for immediate application or storage. For network printing, connect via Ethernet and configure the printer using the color touch panel or TSC's management software. Regularly clean the printhead and platen roller to maintain consistent print quality.
