Ubiquiti NanoSwitch N-SW - switch Gigabit PoE para exteriores no gestionado - 4 puertos

The Ubiquiti NanoSwitch N-SW is a compact, unmanaged outdoor Gigabit PoE switch designed for easy deployment in surveillance, wireless, and IoT applications. With four 10/100/1000 Mbps Ethernet ports, it supports Power over Ethernet (PoE) input on port 1 and PoE output on ports 2-4, enabling flexible powering of remote devices such as cameras and access points. Its rugged, weatherproof polycarbonate enclosure and pole-mount design make it ideal for outdoor installations.

Advantages

Simplifies network expansion in outdoor environments by combining data and power delivery over a single cable. The NanoSwitch N-SW is unmanaged, requiring zero configuration, and features passive PoE passthrough for easy integration with Ubiquiti airMAX and UniFi equipment. Its compact form factor and included pole-mount hardware allow for quick installation on poles, walls, or other surfaces.

Suitable for

• Outdoor surveillance camera systems
• Wireless access point deployments
• Remote IoT sensor networks
• Extending network reach in harsh environments

Key specifications

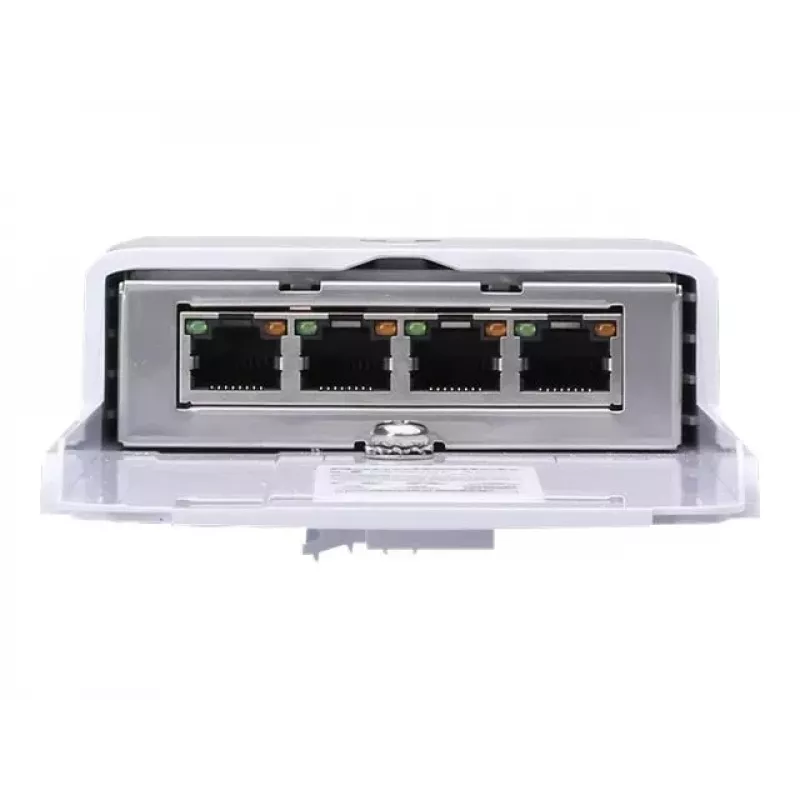

• 4 x 10/100/1000 Mbps Gigabit Ethernet ports
• PoE input: 24V passive PoE or 802.3af/at (port 1)
• PoE output: 24V passive PoE on ports 2, 3, 4 (max 36W total, 24W per port)
• Switching capacity: 8 Gbps non-blocking
• Forwarding rate: 5.95 Mpps
• Unmanaged, plug-and-play operation
• Weatherproof UV-resistant polycarbonate enclosure
• Operating temperature: -30°C to 70°C (-22°F to 158°F)

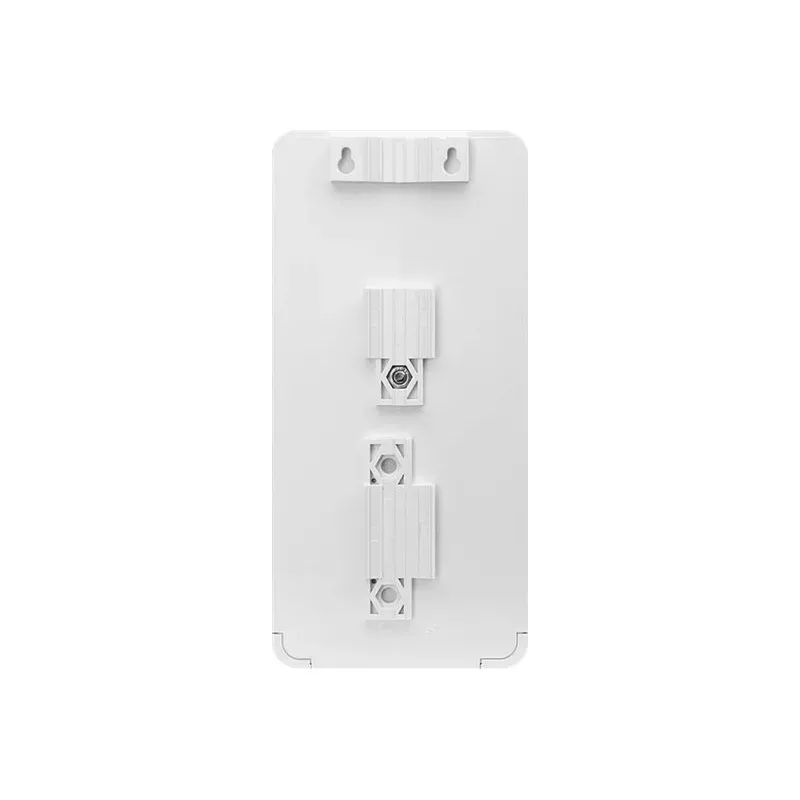

• Pole-mountable with included hardware
• Power consumption: 1.5W (device only)

Recommendations

For optimal performance, pair the NanoSwitch N-SW with Ubiquiti airMAX or UniFi PoE switches and injectors. Ensure the total PoE budget does not exceed 36W when powering multiple devices. Use shielded outdoor-rated Ethernet cables for installations exposed to the elements.
