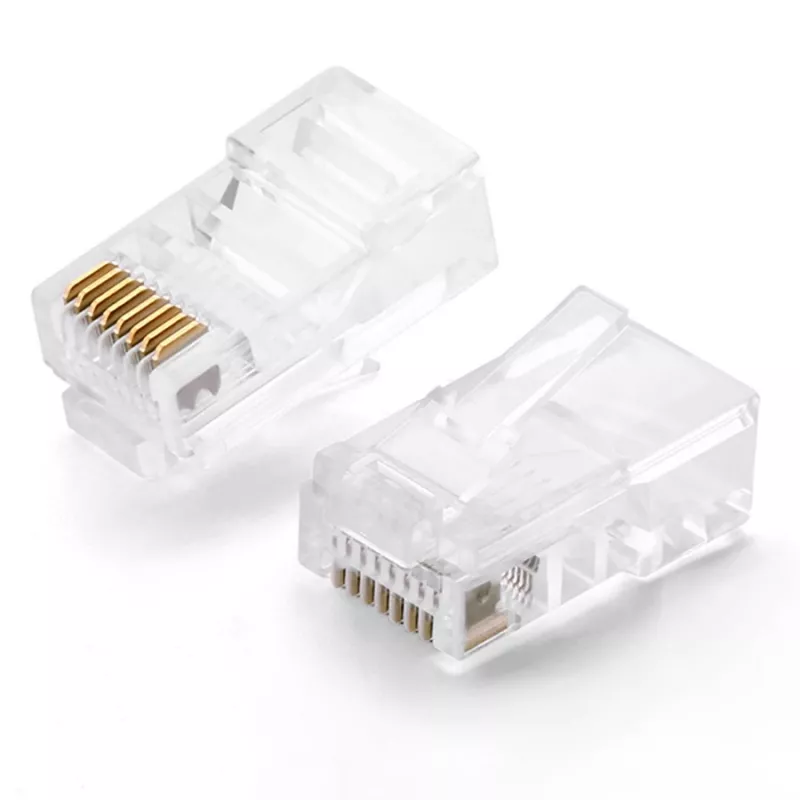

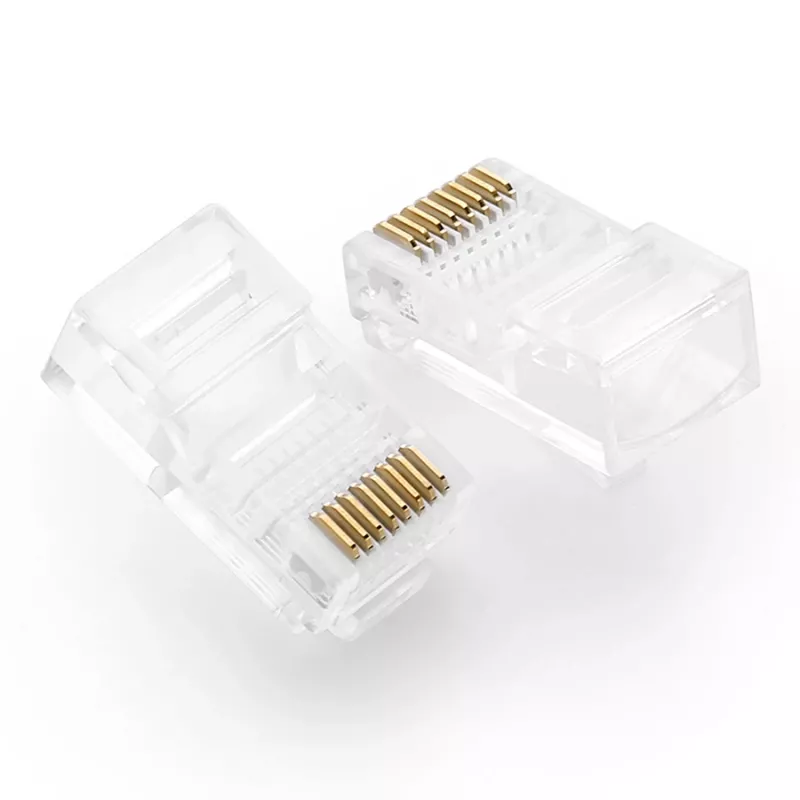

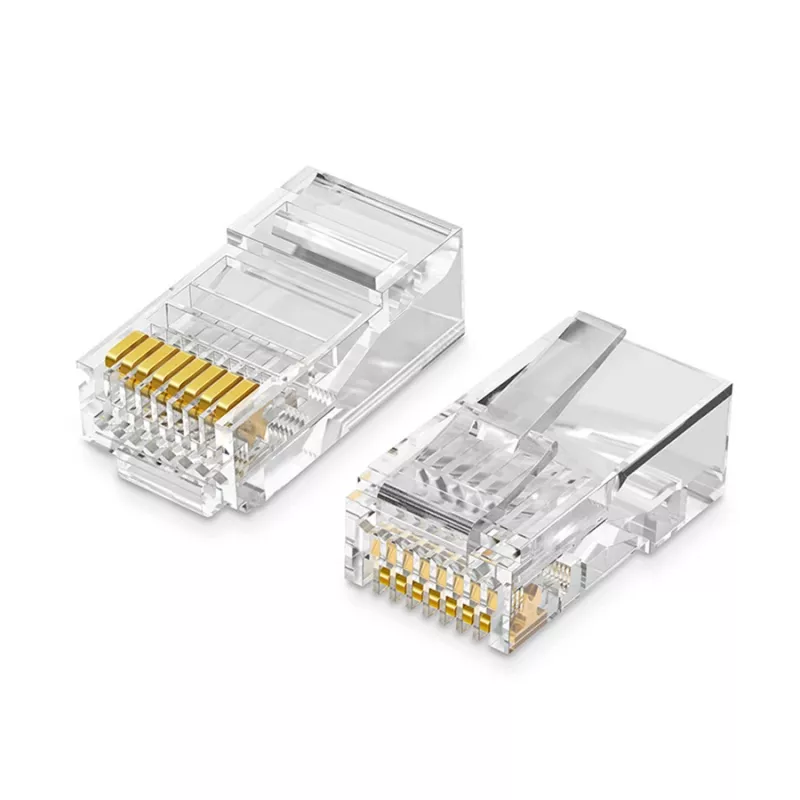

Ugreen NW110 RJ45 Ethernet, 8P/8C, Cat.5/5e, UTP (100 uds.)

For high-volume network terminations, the UGREEN NW110 RJ45 modular plugs stand apart from generic connectors with their 3µm gold-plated contacts and transparent polycarbonate housing. This 100-piece pack delivers consistent, corrosion-resistant performance for Cat.5 and Cat.5e UTP cabling, supporting Gigabit Ethernet speeds up to 1000 Mbps.

Highlights

• 100-piece bulk pack for extensive cabling projects
• 8P8C configuration compatible with Cat.5 and Cat.5e UTP cables
• Gold-plated contacts (3µm) ensure superior signal integrity and durability

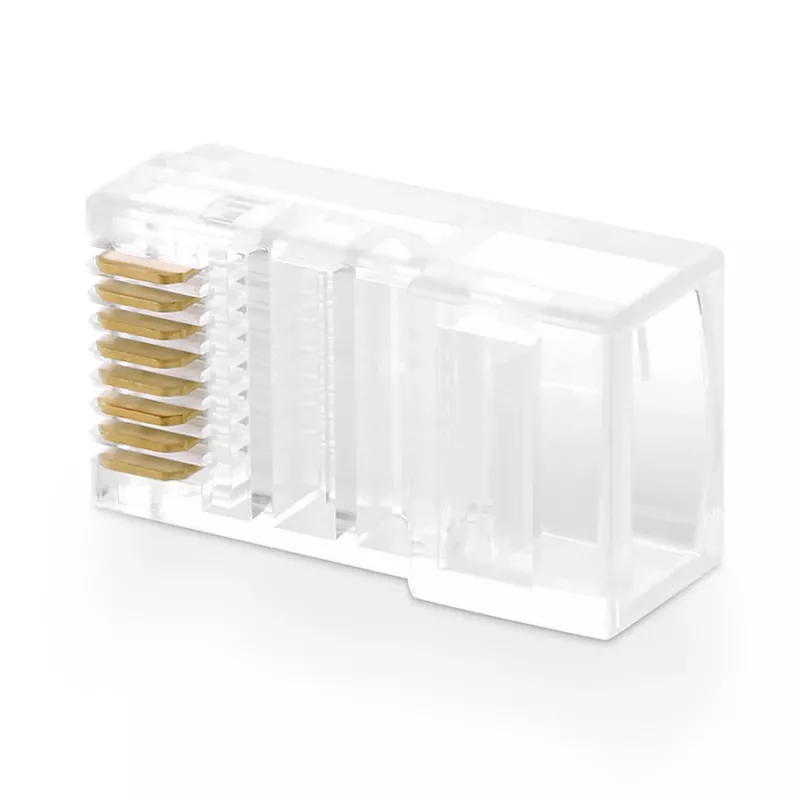

• Transparent housing allows visual verification of wire order before crimping
• Supports solid and stranded conductors for flexible installation
• Compliant with TIA/EIA-568-B wiring standards

In daily use

Terminating Ethernet cables becomes faster and more reliable with the NW110. The clear polycarbonate body lets you confirm each conductor is fully seated and in the correct sequence before crimping, minimizing errors and rework. Rated for over 750 mating cycles, these plugs are built for repeated use in patch panels, wall outlets, and direct equipment connections. Whether you're wiring a home office, a commercial building, or a data center, the NW110 provides a dependable, high-performance termination solution.

Full specifications

• Connector type: RJ45
• Pin configuration: 8P8C (8 positions, 8 conductors)
• Compatible cable categories: Cat.5, Cat.5e
• Compatible cable type: UTP (unshielded twisted pair)
• Contact plating: Gold, 3µm thickness
• Housing material: Polycarbonate (transparent)
• Termination method: Crimp-on
• Conductor compatibility: Solid and stranded
• Supported data rate: Up to 1000 Mbps (Gigabit Ethernet)
• Standard compliance: TIA/EIA-568-B
• Durability: >750 mating cycles
• Pack size: 100 pieces

Final note

With premium gold-plated contacts and a practical transparent design, the UGREEN NW110 100-pack is a smart investment for any professional installer or DIY network builder seeking reliable, long-lasting RJ45 terminations.
