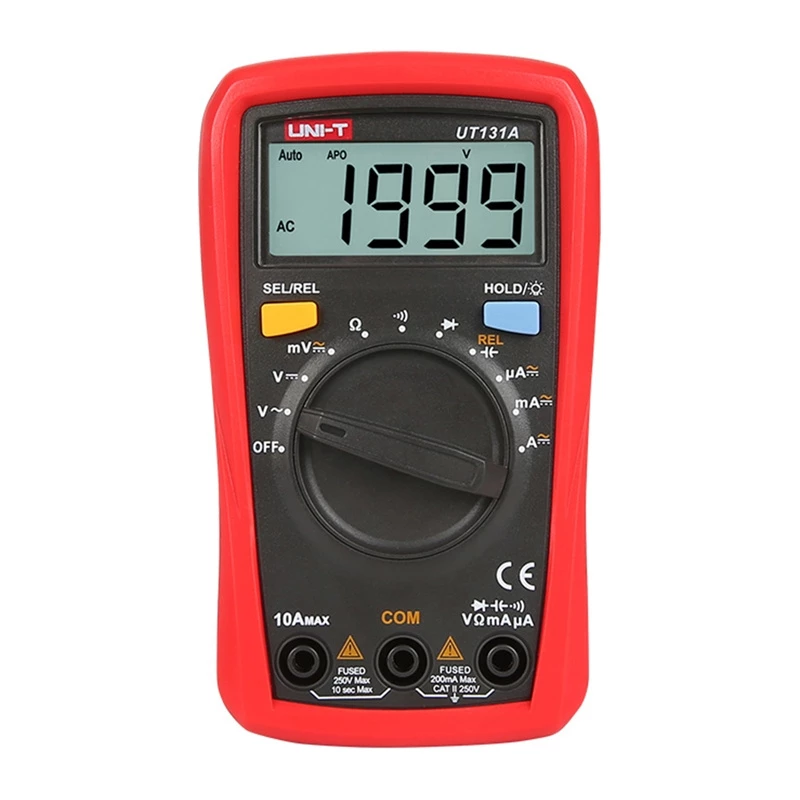

Uni-T UT131A Multímetro digital de bolsillo

The Uni-T UT131A is a compact digital multimeter from the UT131 series, designed for ease of use and everyday measurement of basic electrical parameters. The new generation of this series features a refreshed design, a clear LCD display, and an ergonomic protective cover with space for test leads. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases the device's durability during daily use.

Advantages

Wide measurement range and automatic operation: The UT131A model allows for the measurement of DC and AC voltage up to 600 V, DC and AC current up to 10 A, resistance up to 40 MΩ, and capacitance up to 4 mF. It is the capacitance measurement function that sets this model apart from other versions in the series and makes it the most versatile choice in this regard. Automatic range switching simplifies operation and speeds up measurements, resulting in greater convenience. Practical everyday features: The device is equipped with a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 4000 and a loud buzzer enhance the convenience of daily use. Thanks to its CAT II 600V and CAT III 300V safety rating, the UT131A is suitable for basic measurement tasks in a safe working environment.

Suitable for

• Basic electrical measurements in household and light industrial settings
• DIY enthusiasts and hobbyists
• Educational purposes and training

Key specifications

• Display Count: 4000 counts
• DC Voltage Range: 400mV / 4V / 40V / 400V / 600V
• AC Voltage Range: 4V / 40V / 400V / 600V
• DC Current Range: 400μA / 4000μA / 40mA / 400mA / 4A / 10A
• AC Current Range: 400μA / 4000μA / 40mA / 400mA / 4A / 10A
• Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance Range: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF
• Frequency Range: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz
• Safety Rating: CAT II 600V, CAT III 300V
• Power Supply: 2 x 1.5V AAA Batteries

Recommendations

For reliable and accurate measurements in a compact form factor, the Uni-T UT131A is an excellent choice. Its auto-ranging capability and comprehensive feature set make it ideal for both beginners and experienced users.
