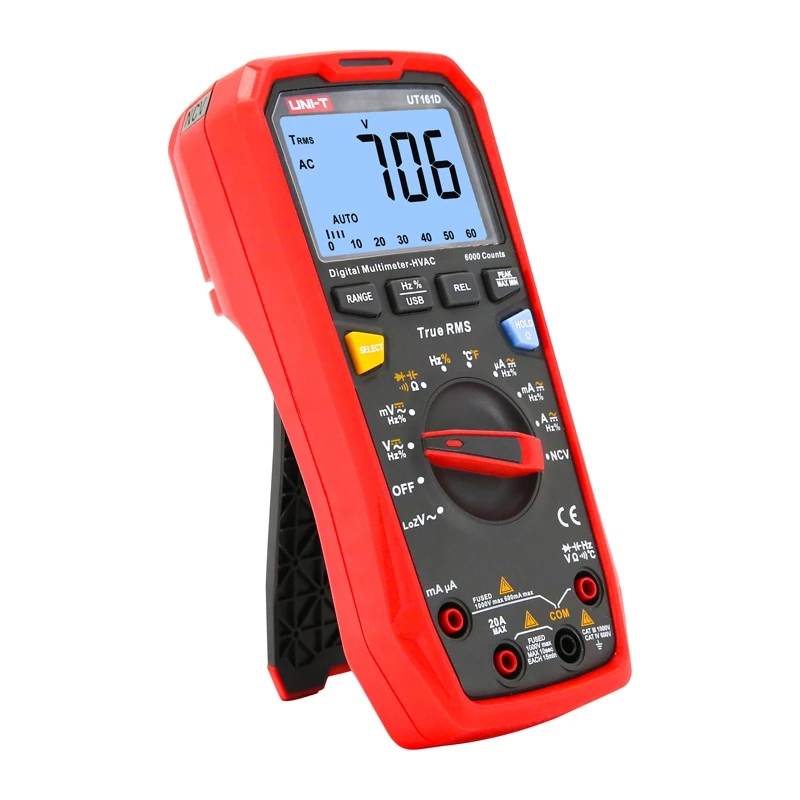

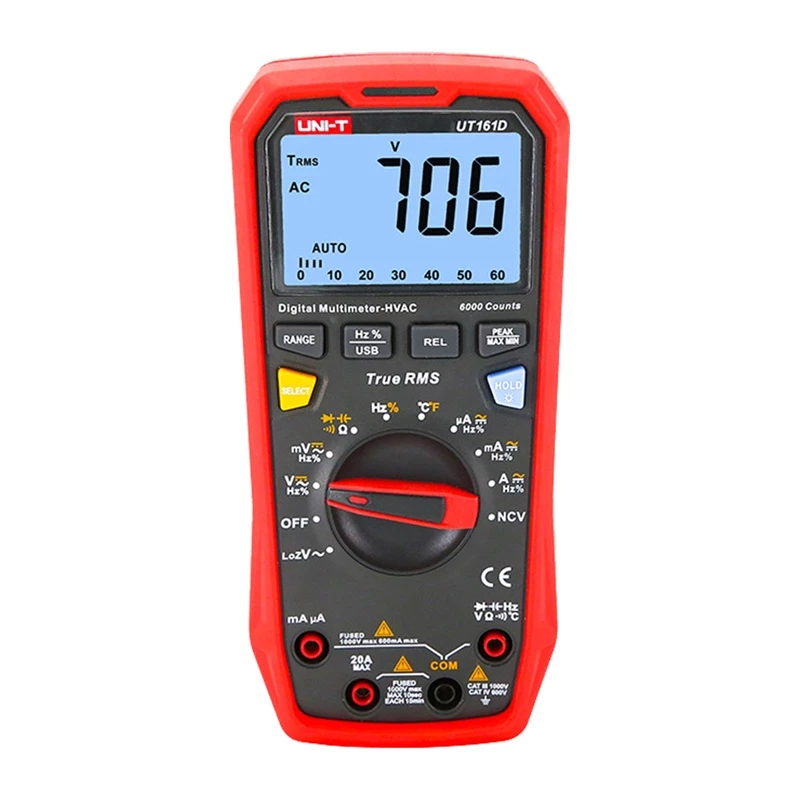

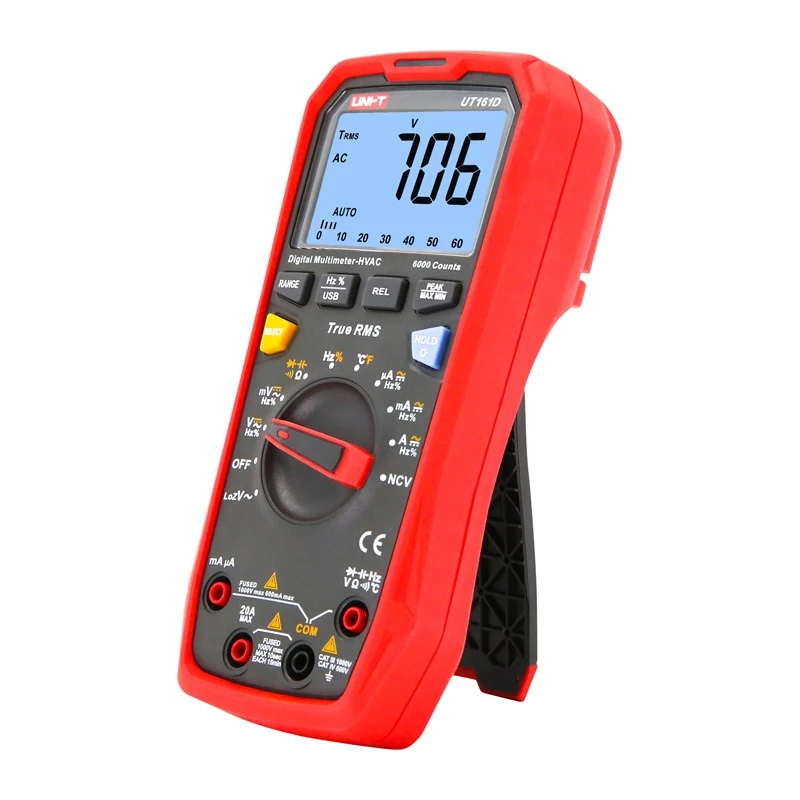

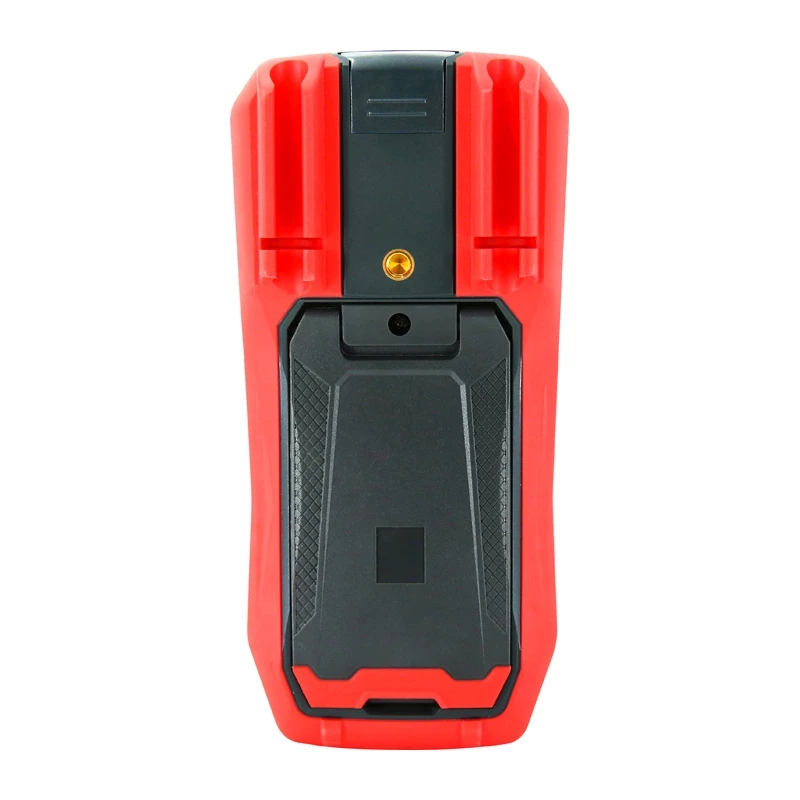

Uni-T UT161D Multímetro digital True RMS 60000 Counts

The Uni-T UT161D is a professional True RMS digital multimeter designed for demanding electrical installations and equipment diagnostics. With a 60000-count display and wide measurement ranges, it delivers accurate readings for AC/DC voltage up to 1000V and current up to 10A. Advanced features like LoZ, LPF, NCV, and temperature measurement make it a versatile tool for both workshop and field service applications.

Advantages

True RMS ensures precise measurement of non-sinusoidal waveforms. The LoZ function eliminates ghost voltages, while the low-pass filter (LPF) enables accurate VFD measurements. Non-contact voltage detection (NCV) enhances safety. USB data transfer simplifies documentation.

Suitable for

• Electrical installation testing and troubleshooting
• Industrial equipment diagnostics and maintenance
• HVAC system analysis with temperature measurement
• Automotive electrical system checks

Key specifications

• Display Count: 60000
• True RMS: Yes
• DC Voltage: 60mV to 1000V
• AC Voltage: 60mV to 1000V
• DC Current: 600µA to 10A
• AC Current: 600µA to 10A
• Resistance: 600Ω to 60MΩ
• Capacitance: 6nF to 60mF
• Frequency: 60Hz to 60MHz
• Temperature: -40°C to 1000°C
• Safety Rating: CAT III 1000V, CAT IV 600V
• Power: 9V battery (6F22)

Recommendations

For professionals requiring high accuracy and safety in electrical measurements, the Uni-T UT161D offers an excellent balance of features and reliability. Its comprehensive measurement capabilities and robust build make it a valuable addition to any toolkit.
