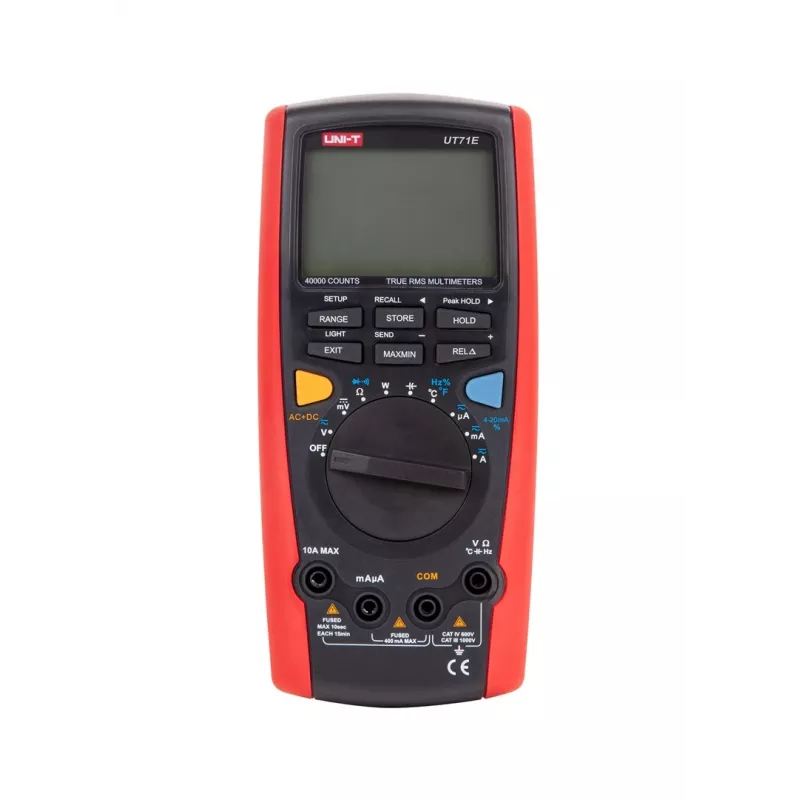

UNI-T UT71E Multímetro universal

The UNI-T UT71E Universal Meter is a high-performance digital multimeter designed for professional electricians, engineers, and technicians. With a 40000-count display and true RMS measurement, it delivers accurate readings for a wide range of electrical parameters. This versatile meter is ideal for industrial maintenance, laboratory testing, and field service applications.

Advantages

High accuracy with 40000 counts and true RMS for precise AC measurements. Data logging capability of up to 10000 records allows for long-term monitoring and analysis. USB PC connectivity enables easy data transfer and remote control. The large backlit display ensures readability in low-light conditions. Safety rated CAT III 1000V and CAT IV 600V for reliable use in demanding environments.

Suitable for

• Industrial electrical maintenance and troubleshooting
• Laboratory and research measurements
• Field service and installation work
• Educational and training purposes

Key specifications

• Display Count: 40000
• True RMS: Yes
• DC Voltage Range: 400mV / 4V / 40V / 400V / 1000V
• AC Voltage Range: 4V / 40V / 400V / 1000V
• DC Current Range: 400µA / 4000µA / 40mA / 400mA / 10A
• AC Current Range: 400µA / 4000µA / 40mA / 400mA / 10A
• Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance Range: 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF
• Frequency Range: 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz
• Temperature Range: -40°C to 1000°C
• Bandwidth: 100kHz
• Data Logging: 10000 Records
• PC Connectivity: USB
• Safety Rating: CAT III 1000V, CAT IV 600V
• Power Source: 9V Battery (6F22)
• Diode Test: Yes
• Continuity Buzzer: Yes
• Auto/Manual Ranging: Yes
• Backlight: Yes

Recommendations

For best results, use with high-quality test leads and ensure the battery is fresh. The UT71E is a reliable choice for professionals who require accurate and comprehensive measurement capabilities.
