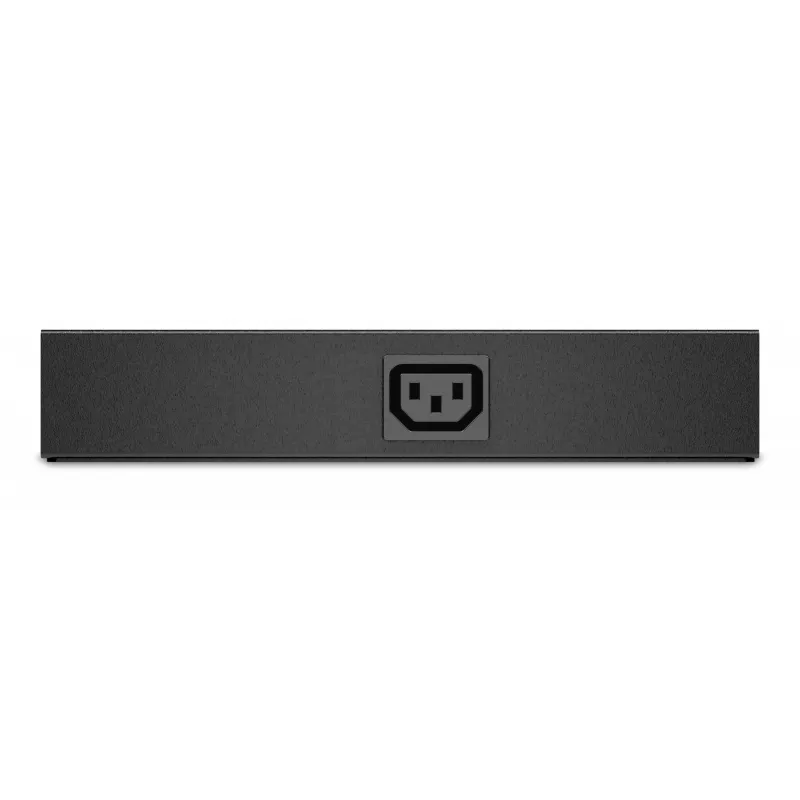

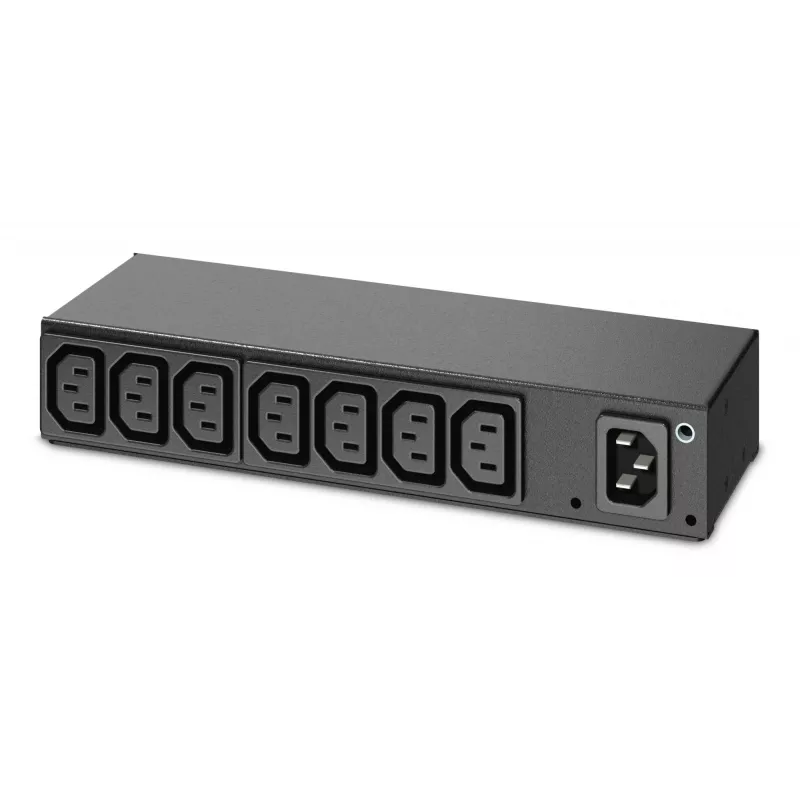

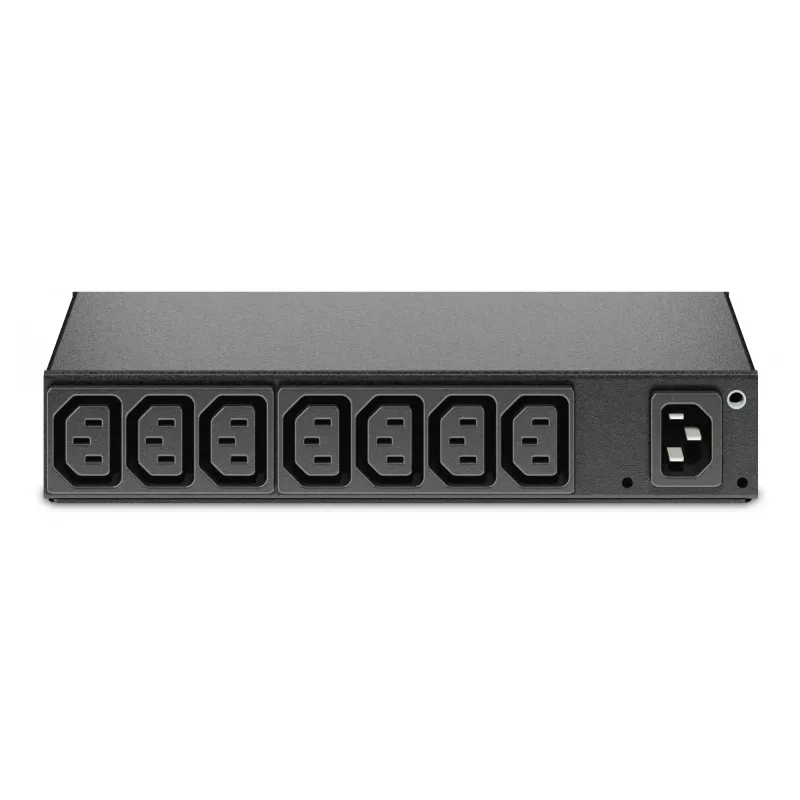

Unidad de distribución de alimentación (PDU) APC AP6015A 8 salidas AC 0U/1U negro

The APC AP6015A Basic Rack Power Distribution Unit (PDU) distributes power to devices in a server or network rack. It provides eight C13 AC outlets, supports horizontal and vertical mounting in 0U/1U rack spaces, and includes a 3.65 m power cable. The unit is rated for nominal input voltage 230 V and a maximum current of 10 A, and it is RoHS compliant with VDE and CE certifications.

Advantages

The APC AP6015A offers a compact black enclosure with eight C13 outlets for straightforward device connection and uncomplicated power distribution within racks. Its dual mounting options (horizontal and vertical) allow flexible placement in tight cabinet configurations, while the 3.65 m cable provides extended reach to mains outlets. Certification by VDE and CE and RoHS compliance indicate adherence to safety and environmental standards.

Suitable for

• Small server racks and network cabinets
• Office IT closets and telecom cabinets
• Racks with limited U space where 0U/1U mounting is required
• Distributing power to multiple network devices, switches, or servers

Key specifications

• Product name: Power Distribution Unit APC AP6015A
• Brand: APC
• PDU type: Basic
• AC outlets: 8 × C13
• Nominal input voltage: 230 V
• Maximum current: 10 A
• Cable length: 3.65 m
• Colour: Black
• Certifications: VDE, CE; RoHS compliant

How to use

Mount the AP6015A in the rack using either the horizontal or vertical mounting option compatible with 0U or 1U space. Connect the PDU's main power cable to a suitable 230 V mains outlet that can supply up to 10 A. Plug equipment into the C13 outlets, ensuring the total connected load does not exceed the PDU's 10 A maximum. Arrange cabling to maintain airflow and avoid overloading individual circuits.

Recommendations

Use the PDU within its rated voltage and current limits, distribute high-draw devices across multiple outlets where possible, and ensure rack and room ventilation remain unobstructed. For installations requiring metering or remote management, consider an APC PDU model with monitoring capabilities instead of this basic unit.
