Unidad de distribución de corriente Bachmann 349.008

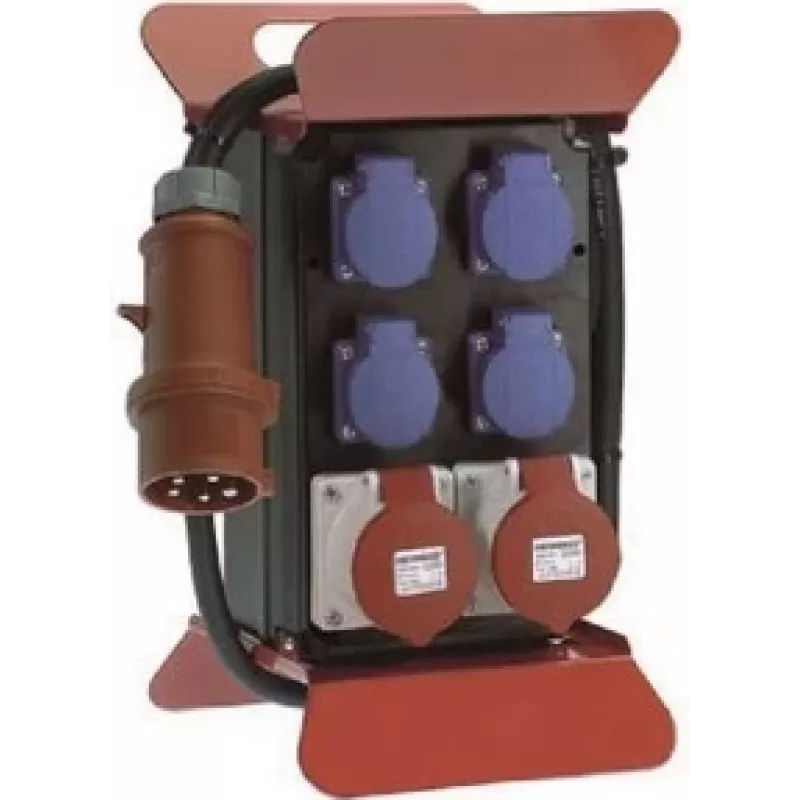

The Bachmann 349.008 Power Distribution Unit is a mobile, splash-water-protected power distributor designed for outdoor and temporary indoor use. It features a durable, impact-resistant plastic housing, an integral carrying handle and a practical cable rewind. The unit accepts a single CEE 16 A / 400 V~ input and provides multiple outputs for distributing three-phase and single-phase power where needed.

Advantages

The unit offers IP44 protection against splashing water and solid foreign objects, a robust unbreakable-plastic enclosure for rugged use, and a 2 m H07RN-F5G cable that supports up to 16 A. Built-in cable rewind and a carrying handle improve portability and on-site handling. Colour-coded blue and red components simplify identification of sockets.

Suitable for

• Construction sites and temporary power on outdoor events
• Workshops and maintenance tasks requiring 400 V three-phase and 230 V single-phase outlets
• Mobile service and repair operations

Key specifications

• Model: Bachmann 349.008
• Input: 1 x CEE plug 16 A / 400 V~
• Outputs: 2 x CEE sockets 16 A / 400 V~; 4 x socket outlets with earthing contact 16 A / 230 V~
• Cable: 2 m H07RN-F5G
• Protection rating: IP44
• Maximum current: 16 A
• Housing: impact-resistant plastic
• Brand: Bachmann; MPN: 349.008; EAN: 4016514010271

How to use

Connect the CEE plug to a compatible 16 A / 400 V~ supply before switching on connected devices. Unwind the cable as needed and place the unit on a stable, level surface using the integrated handle to position it. Plug appliances into the appropriate CEE or 230 V sockets according to their voltage and phase requirements. After use, disconnect the supply, allow the unit to cool if necessary, rewind the cable and store the device in a dry place.

Recommendations

Ensure that the supply source and connected equipment do not exceed the unit's rated current of 16 A. Use the Power Distribution Unit in environments consistent with IP44 protection—protected from direct heavy water jets and excessive dust. Regularly inspect plugs, sockets and the cable for damage and do not operate the unit with compromised insulation or connections.
