Unidad de distribución de corriente (PDU) CyberPower PDU20BHVIEC8R 8 salidas AC 1U Negro

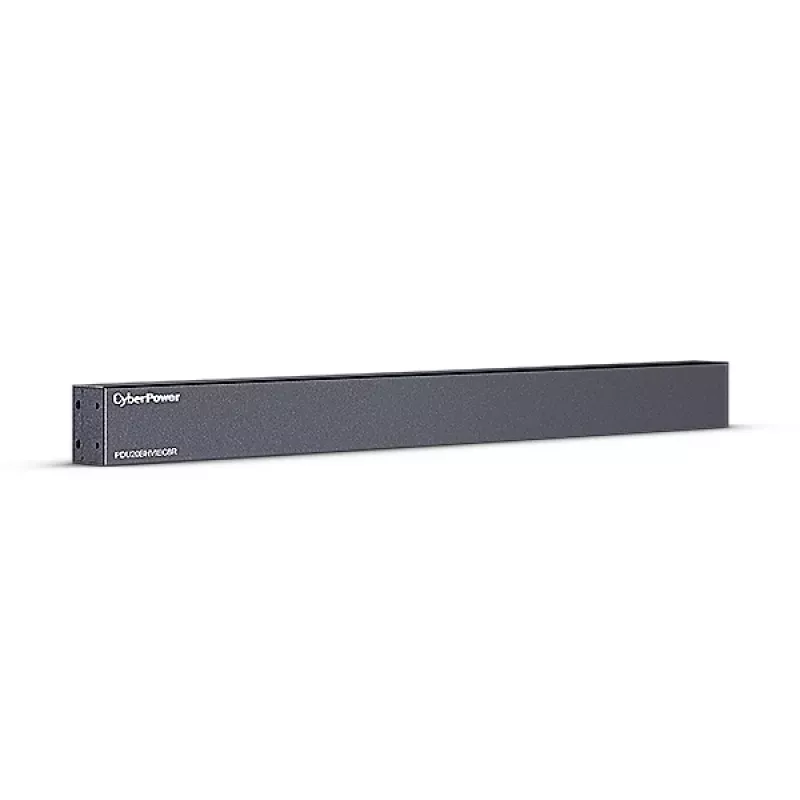

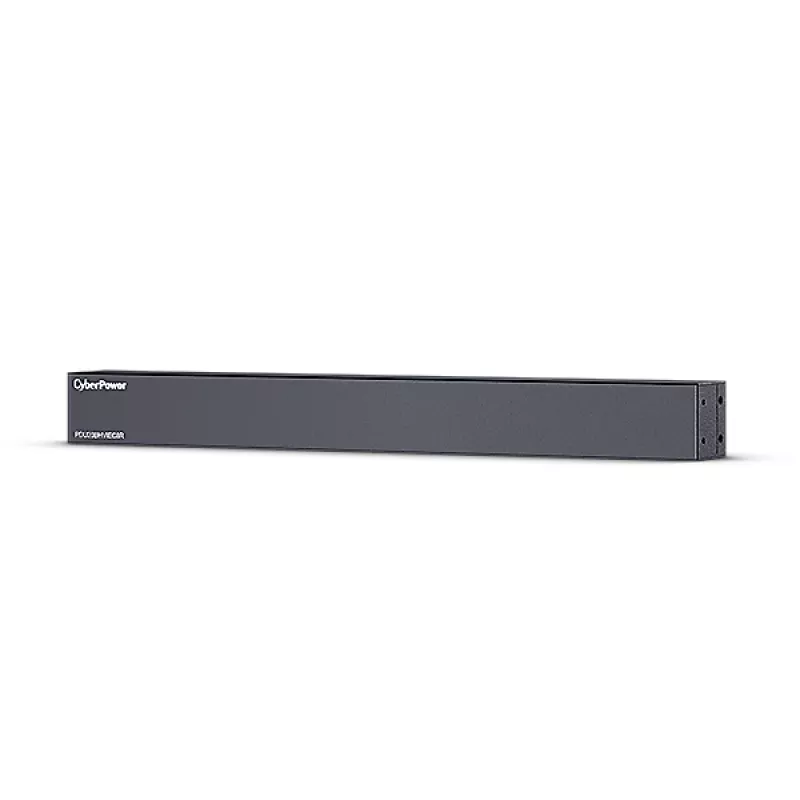

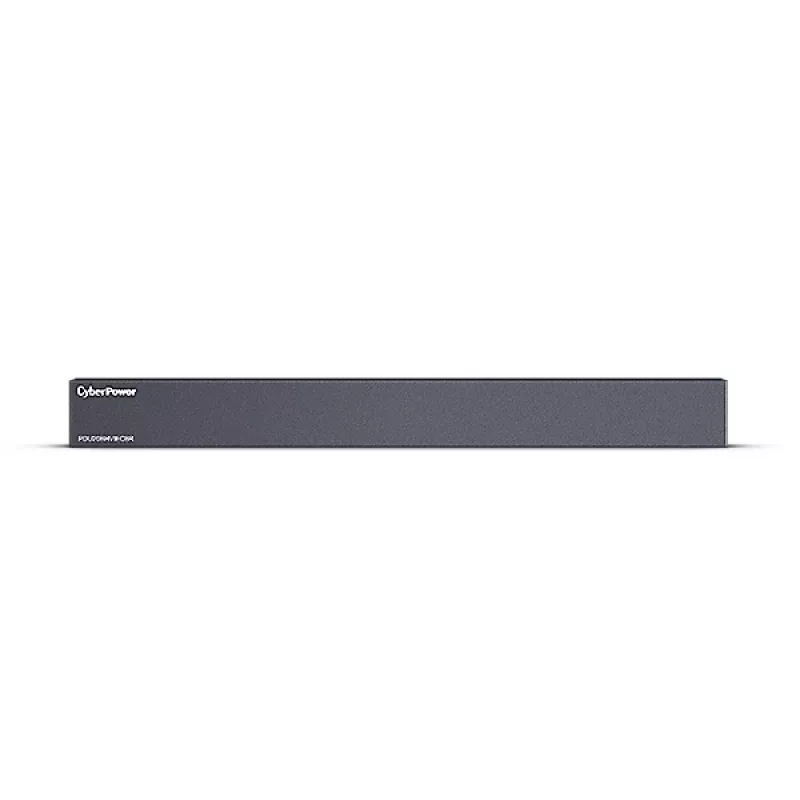

The CyberPower PDU20BHVIEC8R is a 1U rack-mount power distribution unit that supplies single-phase 208/230 V AC power from an IEC-320 C20 inlet to eight IEC-320 C13 outlets. Built for datacenter and other high-demand electrical environments, the unit features an industrial-grade metal housing, a 10 ft (3.05 m) power cord, and an unfiltered electrical pass-through design. It is ETL/RoHS compliant and covered by a lifetime warranty against defects in design, assembly, material, or workmanship.

Advantages

This PDU provides eight C13 receptacles from a single C20 plug to simplify rack power distribution while maintaining a compact 1U footprint. The rugged metal enclosure and cord retention tray support reliable installation in vertical or horizontal rack positions. With built-in circuit protection and compliance to UL/RoHS standards, the unit balances safety and straightforward electrical pass-through for equipment power.

Suitable for

• Data centers and server racks
• Network cabinets and telecom closets
• IT equipment requiring IEC-320 C13 connections
• Environments needing a compact 1U power distribution solution

Key specifications

• Model: PDU20BHVIEC8R
• Outputs: 8 × IEC-320 C13
• Input: 1 × IEC-320 C20
• Voltage: 208/230 V AC (nominal 200–240 V)
• Frequency: 50/60 Hz
• Current capacity: 20 A (product text) / maximum 16 A (product data)
• Form factor: 1U rack mount, horizontal or vertical installation
• Cable length: 10 ft (3.05 m)
• Certifications: ETL, RoHS; UL60950 and UL62368 noted in product data

How to use

Mount the PDU in a standard 19-inch equipment rack either horizontally or vertically and secure the unit according to rack-mount instructions. Connect the IEC-320 C20 inlet to a compatible upstream power source rated for the specified voltage and current. Plug equipment power cords into the IEC-320 C13 outlets. Ensure the total connected load does not exceed the allowable current for your installation and that circuit protection is in place.

Recommendations

Verify upstream power source compatibility (voltage and available current) before connecting loads, distribute devices across outlets to avoid overloading a single circuit, and follow local electrical codes and rack installation best practices for grounding and cable management.
