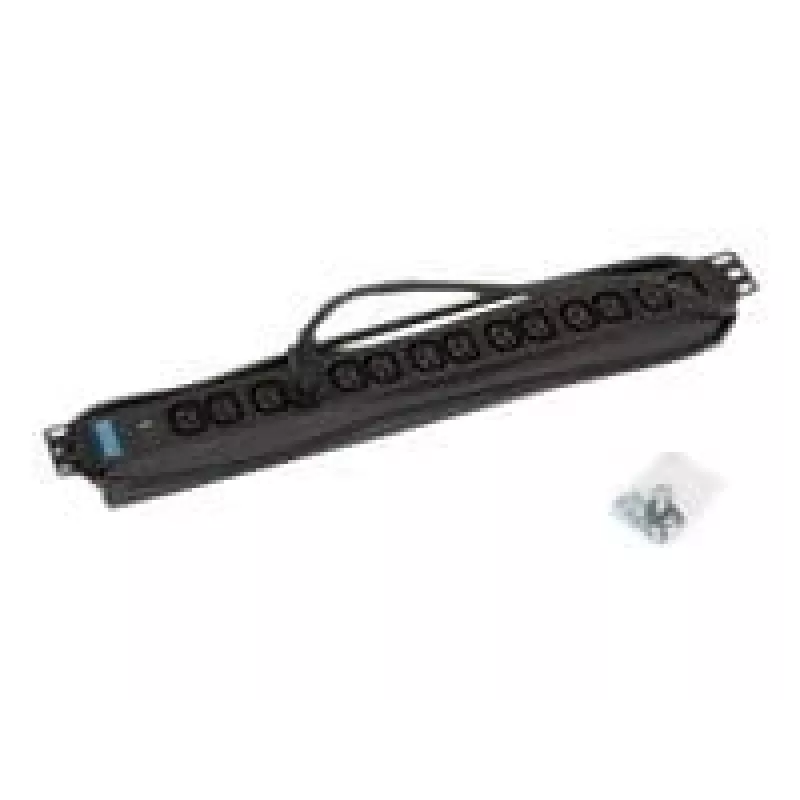

Unidad de distribución de corriente Triton RAB-PD-X09-A1

The Triton RAB-PD-X09-A1 is a 19" 1U power distribution unit in RAL 9005 black, equipped with 14 IEC320 sockets and a 2 m mains cable with an IEC320 C14 10A plug. It is designed for installation in standard 19" racks and supports a maximum input current of 10 A per phase, providing consolidated power delivery to connected equipment and a front-panel power indicator for status monitoring.

Advantages

The unit offers fourteen IEC320 output connections in a compact 1U housing, a 2 m pre-fitted cable with IEC320 C14 10A plug for simple connection, and a visible power indicator to confirm supply presence. Its black RAL 9005 finish matches common rack aesthetics and the specification of 10 A maximum input current per phase aligns with typical low-density rack loads.

Suitable for

• Distributing mains power to servers, switches and rack-mounted network equipment
• Small to medium-density 19" rack installations with low per-phase current requirements
• Data closets, telecom cabinets and lab racks where multiple IEC320 outlets are needed

Key specifications

• Form factor: 19" 1U
• Output connectors: 14 × IEC320 sockets
• Input plug: IEC320 C14, 10 A
• Maximum current: 10 A per phase
• Cable: 3 × 1.5 mm², length 2 m
• Colour: RAL 9005 (black)
• Brand and model: Triton RAB-PD-X09-A1
• EAN: 8595105051184

How to use

Mount the PDU in a standard 19" rack occupying 1U of rack space and secure with appropriate screws. Connect the IEC320 C14 plug to a compatible mains inlet or UPS output rated for 10 A. Plug devices into the IEC320 output sockets. Observe the front-panel power indicator to confirm that mains power is present. Do not exceed the rated maximum current of 10 A per phase for the PDU and connected equipment.

Recommendations

Install the unit in a properly earthed rack and verify that the supply source and connected load do not exceed 10 A. For higher-density or higher-current applications, choose a PDU with higher current rating or consult an electrician. Keep the cable routed to avoid strain or sharp bends.
