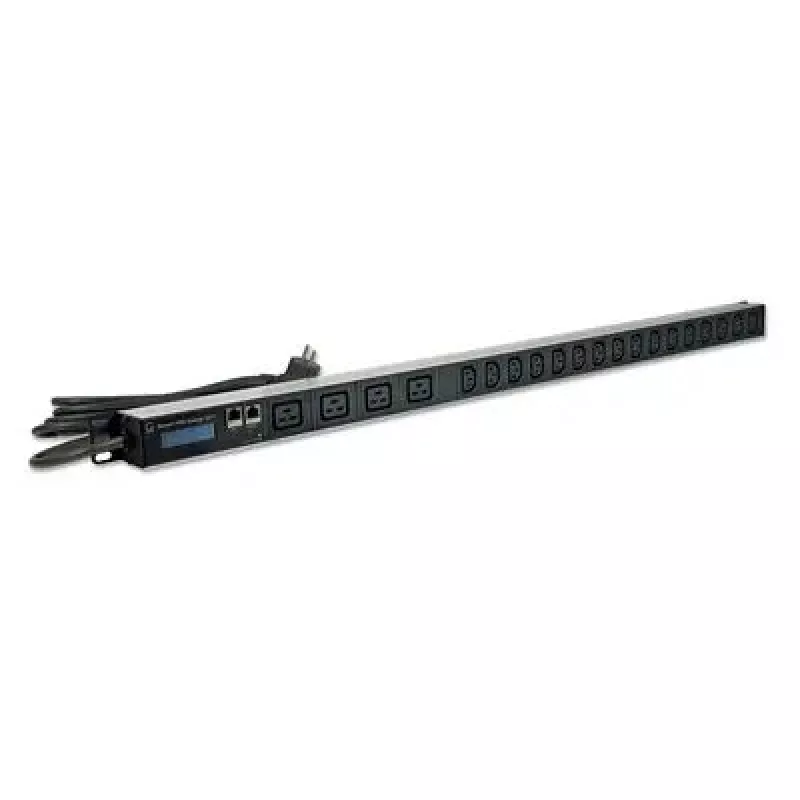

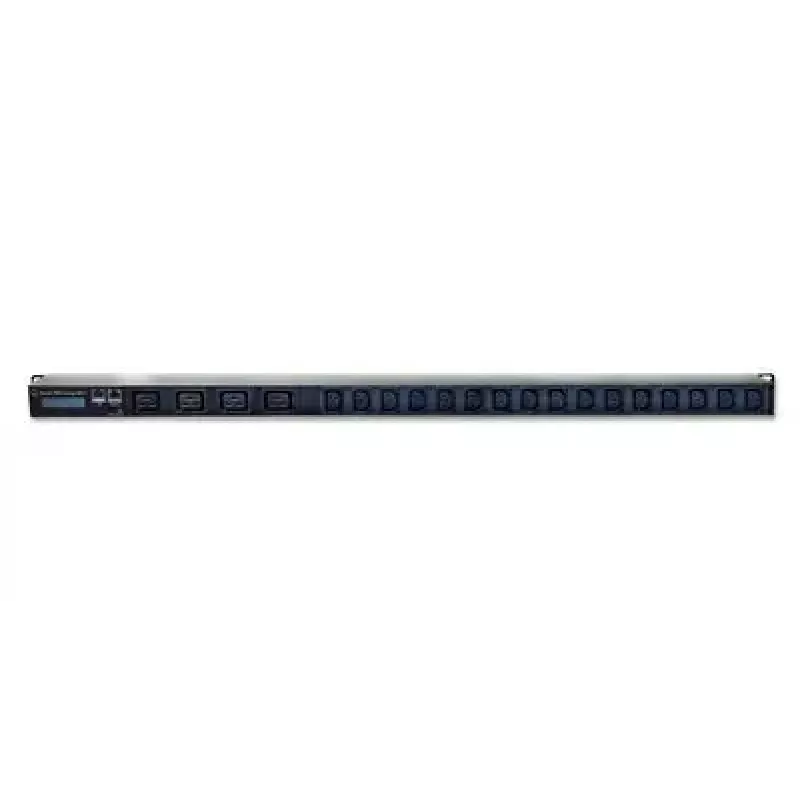

Unidad de distribución de energía Güde 8311-15 20 salidas AC 1U negro

Power Distribution Unit Güde 8311-15 is a 1U rack-mount PDU with integrated current metering and network monitoring. The unit provides 20 load outlets — 16 IEC C13 and 4 IEC C19 — for distribution of single-phase 230 V power with a rated current of up to 16 A. Two internal energy meters measure electrical parameters and a two-line backlit LCD shows device and meter information. Network management features include SNMPv3, SSL, IPv6, Telnet, RADIUS and Modbus TCP. A sensor interface supports optional temperature, humidity and air pressure sensors.

Advantages

The Güde 8311-15 combines power distribution and dual energy metering in a compact 1U form factor suitable for rack installation. Its support for SNMPv3, SSL and IPv6 ensures secure remote monitoring, while the backlit LCD provides easy local reading of measured values. The mix of IEC C13 and C19 outlets covers typical server and network equipment connections, and the sensor interface enables environmental monitoring when optional sensors are connected.

Suitable for

• Data centers and server rooms
• Network closets and telecommunications racks
• IT equipment and rack-mounted servers
• Remote monitoring and metering applications

Key specifications

• Form factor: 1U rack-mount
• Outlets: 16 × IEC C13, 4 × IEC C19 (total 20)
• Rated input voltage: 230 V
• Rated current: up to 16 A
• Integrated meters: 2 energy meters
• Display: two-line backlit LCD
• Network protocols: SNMPv3, SSL, IPv6, Telnet, RADIUS, Modbus TCP
• Sensor interface: supports optional temperature, humidity and air pressure sensors
• Color: Black
• Manufacturer part number (MPN): 8311-15
• EAN: 4250493100978

How to use

Install the Güde 8311-15 in a standard 19" rack occupying 1U of space and connect the unit to a suitable 230 V, 16 A supply. Plug equipment into the IEC C13 and C19 outlets according to their connector type and power requirements. Configure network settings and security (SNMPv3, SSL, RADIUS) via the device web interface or supported protocols. Use the LCD for local verification of measured electrical values and status. If environmental monitoring is required, connect compatible temperature, humidity or pressure sensors to the sensor interface.

Recommendations

For reliable operation, ensure the upstream supply and rack cabling comply with local electrical codes and the unit's 16 A rating. Distribute connected loads to avoid overloading individual circuits and verify meter readings after installation. Use the secure management options (SNMPv3/SSL) when integrating the PDU into a network management system.
