Unidad de interfaz NDI Panasonic AV-UHS5M6G para mezclador de vídeo en directo UHD AV-UHS500 (compatibilidad NDI, transmisión IP mediante NDI/NDI|HX)

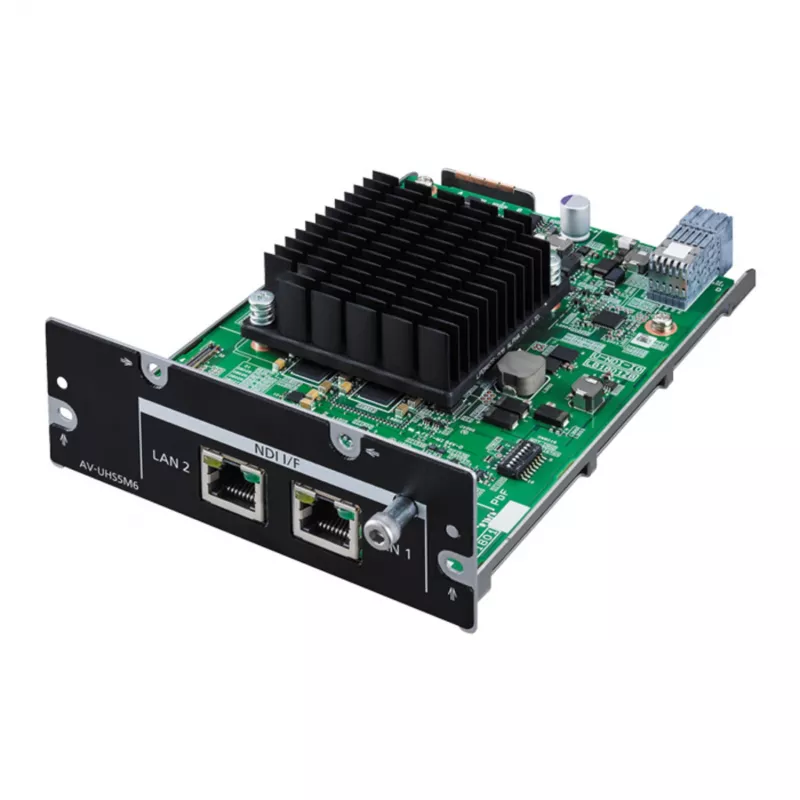

The Panasonic AV-UHS5M6G is a dedicated NDI interface unit designed for the AV-UHS500 UHD live video mixer, enabling seamless IP-based video transmission via NDI and NDI|HX protocols. This internal plug-in module integrates directly into the AV-UHS500 chassis, expanding its capabilities for modern live production, broadcast, and streaming workflows.

Advantages

By adding the AV-UHS5M6G, your AV-UHS500 switcher gains native NDI support, allowing you to connect NDI-enabled cameras, computers, and other sources over a standard IP network. This eliminates the need for additional converters and simplifies cabling, reducing setup time and cost. The module supports up to 4 NDI input channels and 1 NDI output channel, providing flexibility for multi-source productions.

Suitable for

• Live event production (concerts, conferences, sports)
• Broadcast studios requiring IP-based video routing
• Streaming setups integrating NDI sources
• Educational and corporate AV environments

Key specifications

• Product Type: NDI Interface Unit
• Compatibility: Panasonic AV-UHS500 Live Switcher
• NDI Protocol Support: Full NDI, NDI|HX
• NDI Input Channels: Up to 4
• NDI Output Channels: 1
• Maximum Input Resolution: UHD (3840x2160)
• Maximum Output Resolution: UHD (3840x2160)
• Video Transmission Protocol: IP (Ethernet)
• Interface Type: Internal Plug-in Module
• Network Connectivity: Standard IP Network
• Primary Function: Enables NDI IP video transmission for switcher
• Application: Live Production, Broadcast, Streaming
• Video Codec Support: NDI (High Bandwidth), NDI|HX (H.264/HEVC)
• Installation: User-installable within AV-UHS500 chassis
• Power Source: Powered by AV-UHS500 Live Switcher

Recommendations

For optimal performance, ensure your network infrastructure supports high-bandwidth NDI streams. The AV-UHS5M6G is an essential upgrade for any AV-UHS500 user looking to integrate IP-based production workflows.
