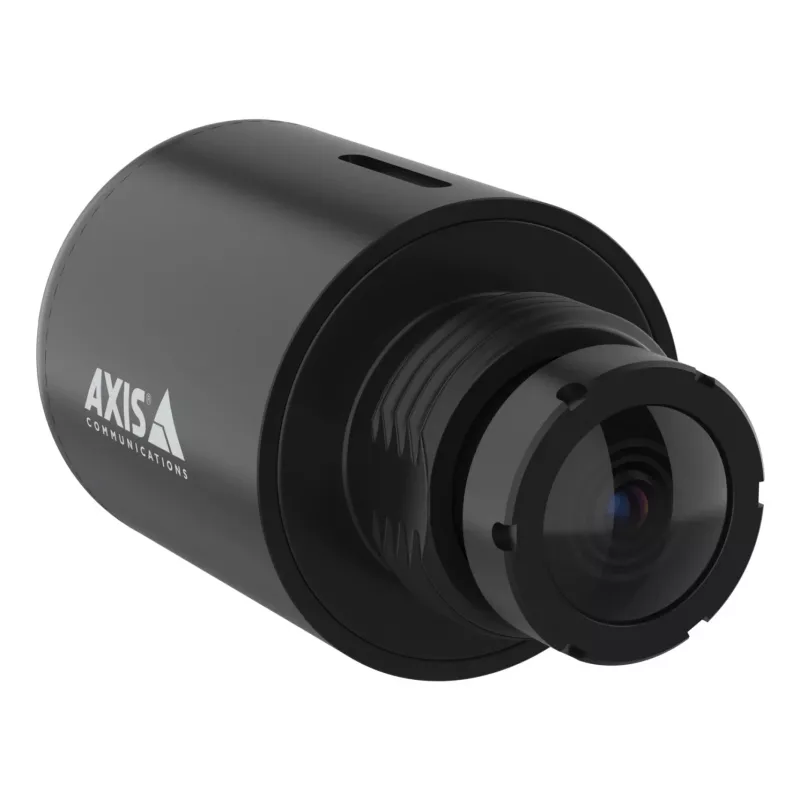

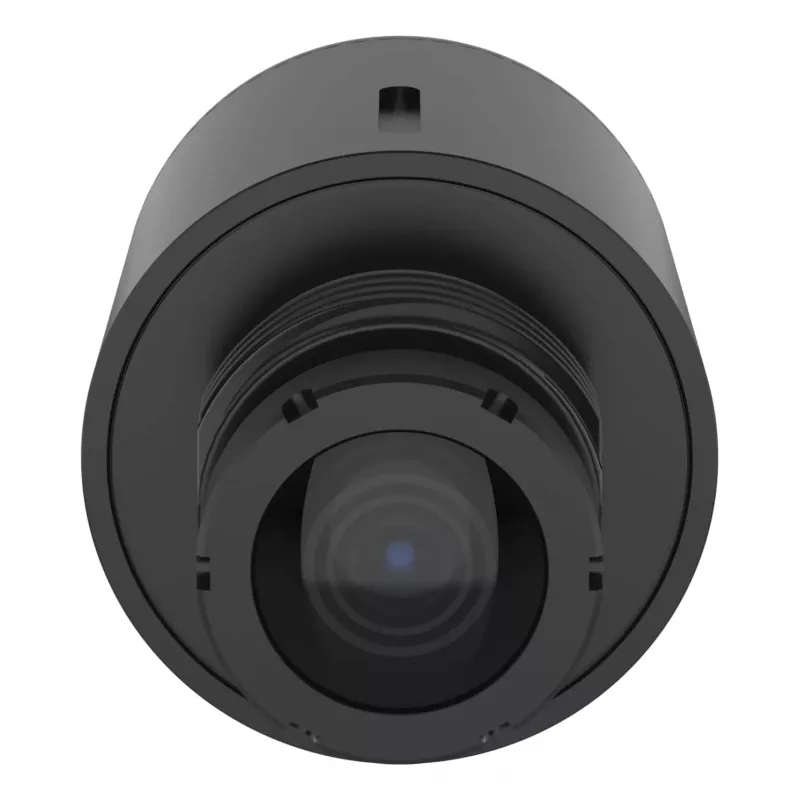

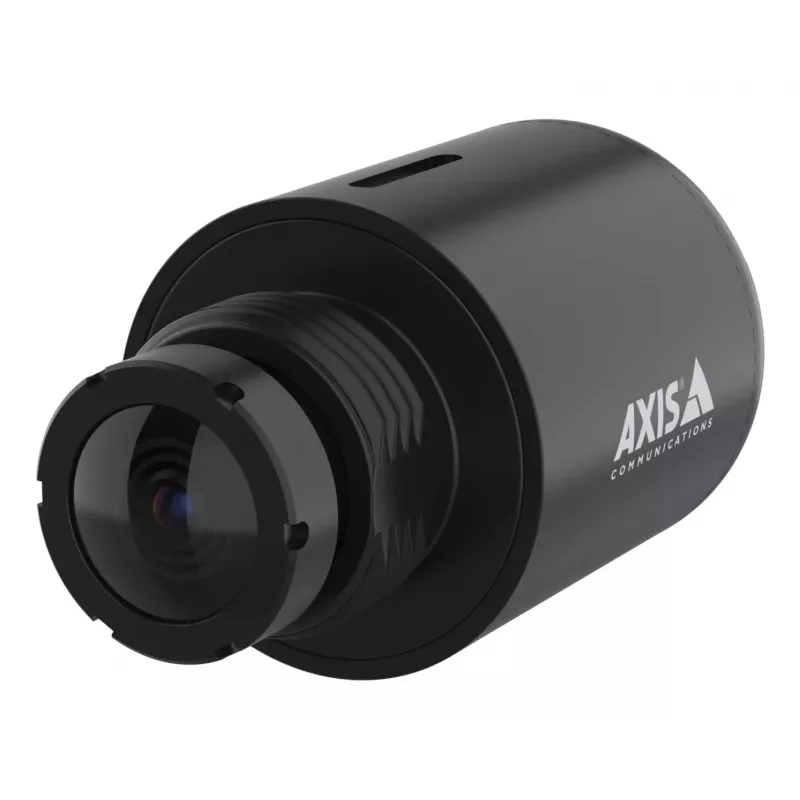

Unidad de sensor AXIS F2107-RE — CMOS 1/2,78", conexión de objetivo M12, colocación universal, 30×58×30 mm, negro

AXIS F2107-RE Standard Sensor is a compact sensor unit designed for indoor and outdoor installation. It provides high-quality 5 MP video with a 110° horizontal field of view and improved low-light performance. The unit uses rugged SMA connectors and a SMA-FAKRA cable interface to ensure a secure, vibration-resistant connection for demanding environments.

Advantages

The sensor delivers detailed 5 MP images with a wide 110° view, suitable for covering large areas while maintaining image clarity. When paired with AXIS F91 main units it supports Forensic WDR for balanced exposure in scenes with both bright and dark areas, and Lightfinder technology for color images in low light. Its small cylindrical form factor enables discreet placement and installation in confined spaces such as ATMs and industrial equipment. The design allows the sensor to be separated from the main unit and combined with up to three other sensor units for flexible system layouts. Rugged connectors and an IP66/IP67/IP6K9K rating make the unit suitable for vehicle and machinery installations and other harsh environments.

Key specifications

• Image resolution: 5 MP
• Horizontal field of view: 110°
• Protection rating: IP66 / IP67 / IP6K9K
• Operating temperature range: -40 °C to 60 °C (-40 °F to 140 °F)
• Connector: SMA on sensor; SMA-FAKRA on cable
• Compatible with: AXIS F91 main units
• Form factor: Cylinder-shaped sensor unit
• Housing material: Aluminium
• Intended use: Indoor, outdoor, vehicles, industrial machines

How to use

Install the AXIS F2107-RE sensor where wide-area monitoring is required and connect it to an AXIS F91 main unit following the manufacturer’s instructions. Route the SMA-FAKRA cable to preserve the cable connection; the sensor can be placed away from the main unit to suit installation constraints. If needed, remove the sensor from its cable for maintenance or replacement while leaving the cable in place to simplify service and upgrades. Combine with up to three additional AXIS F21-series sensors when a multi-sensor configuration is required.

Recommendations

For optimal performance, use the sensor with AXIS F91 main units to enable Forensic WDR and Lightfinder features. Ensure connectors are securely fastened and follow IP-rated sealing practices for outdoor and vehicle installations. Verify compatibility with existing mounting accessories from the AXIS F21 series to simplify installation and future upgrades.
