Unidad de sensor para cámaras de seguridad AXIS 02363-021 — CMOS, montura de objetivo M12, distancia focal 3,7 mm, colocación universal, negra

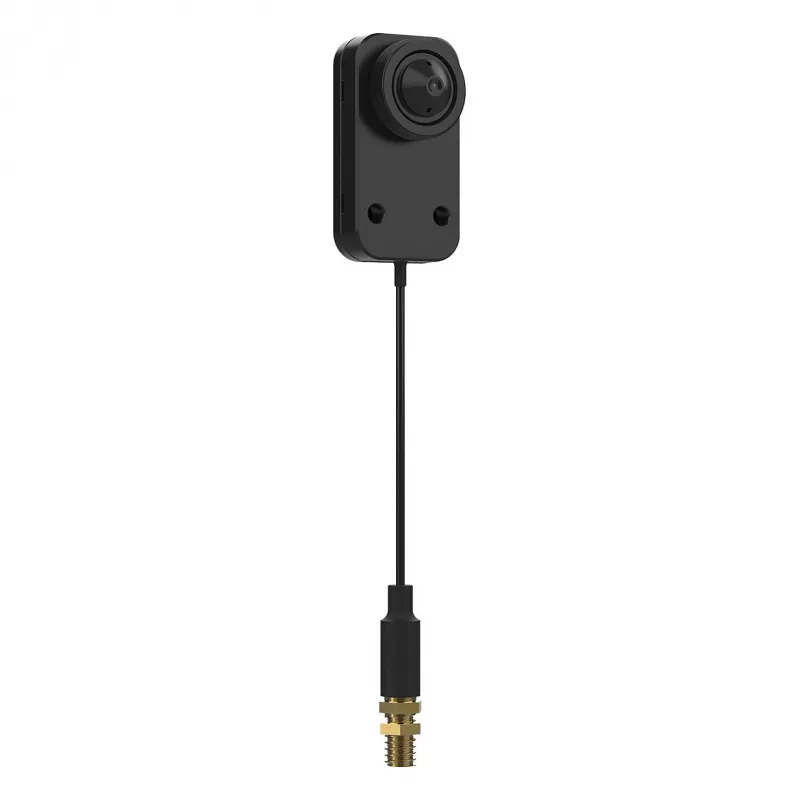

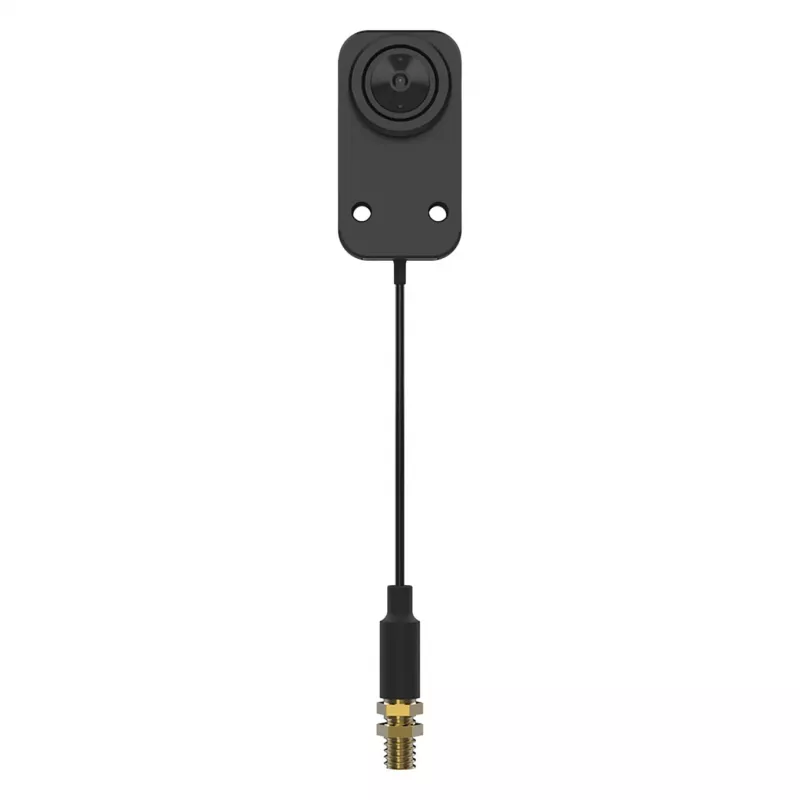

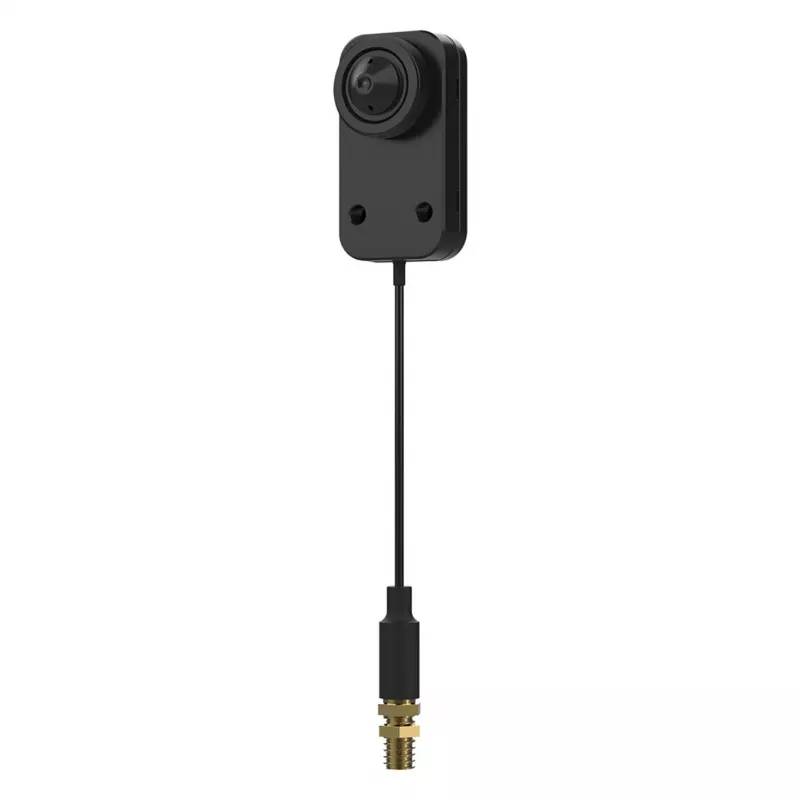

AXIS 02363-021 is a compact sensor unit intended for integration into security cameras and surveillance assemblies. Featuring a CMOS image sensor and an M12 lens mount with a fixed 3.7 mm focal length, this black sensor module is designed for universal placement in tight spaces such as machines, ATMs or confined housings. It is supplied in multipacks and is compatible with AXIS F91 and AXIS F9111 main units to provide HDTV-quality video streams for demanding surveillance applications.

Advantages

This sensor unit offers high-resolution imaging with support for multiple HDTV video streams and high frame rates when paired with compatible AXIS main units. Its M12 lens mount simplifies installation and lens replacement, while the compact, low-profile design enables discreet placement in restricted environments. Built to withstand harsh conditions, the module carries an IP66/IP67 rating and operates across a wide temperature range, reducing the need for specialized enclosures.

Suitable for

Key specifications

How to use

Mount the AXIS 02363-021 sensor unit into a compatible camera assembly and secure it using the designated fittings for M12-mounted modules. Connect the unit to an AXIS F91 or AXIS F9111 main unit following the manufacturer’s integration guidelines to enable video streaming and configuration. Configure resolution and frame rate through the main unit to match your surveillance requirements and ensure proper focus and field of view during installation.

Recommendations

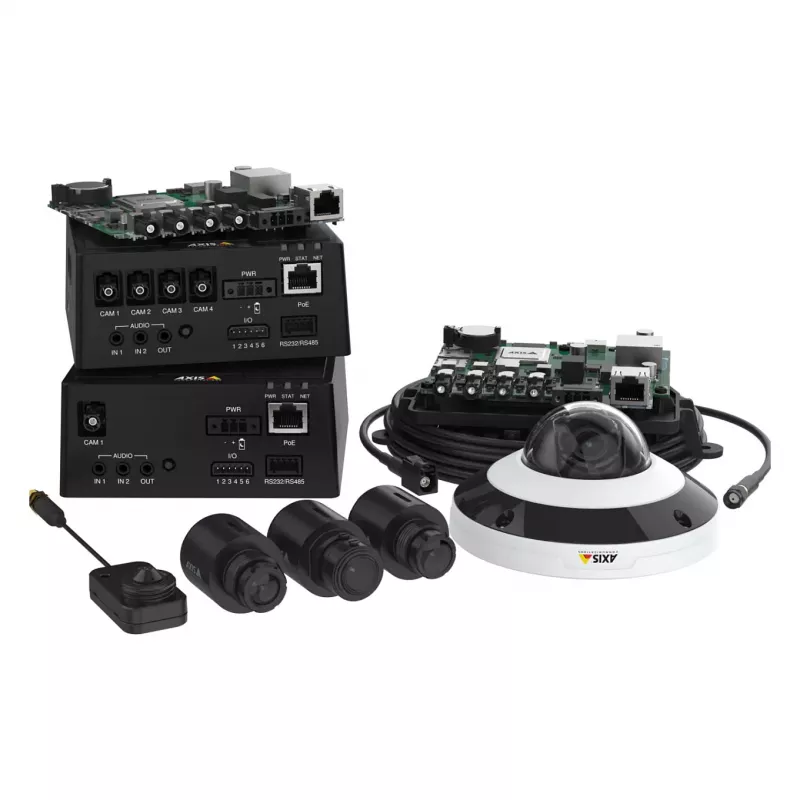

For optimal results, use with AXIS F91 or AXIS F9111 main units to take advantage of the supported high-frame-rate streaming. Ensure the sensor is installed in a suitable housing when used outdoors or in dusty/wet environments despite the IP66/IP67 rating. Verify lens seating and alignment after installation and perform image calibration through the main unit software to achieve the desired coverage and clarity.
