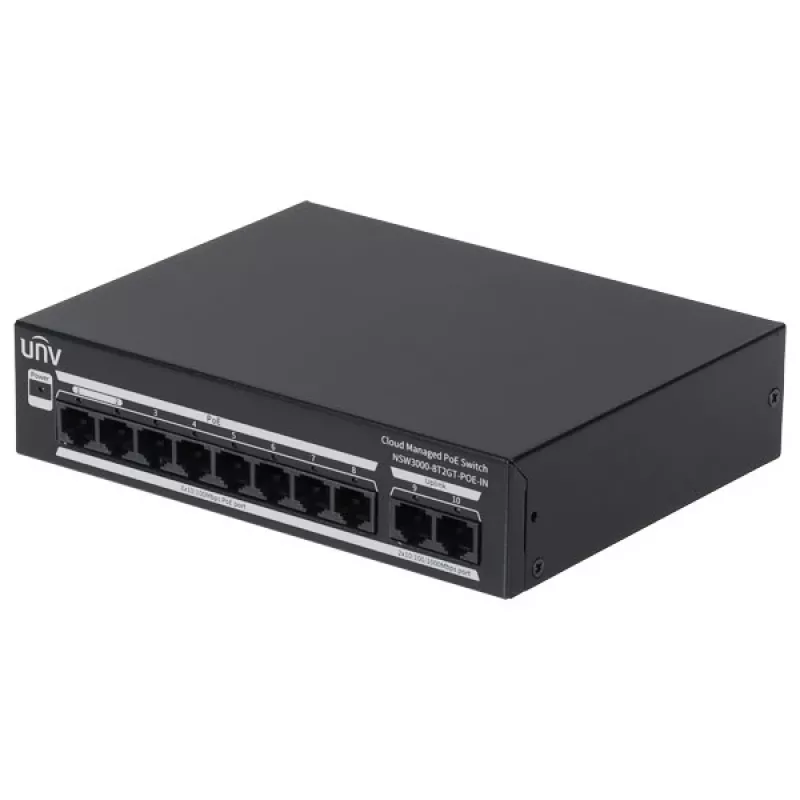

UNIVIEW NSW3000-8T2GT-POE-IN Switch PoE+ de 8 puertos, 120W, no gestionado

The UNIVIEW NSW3000-8T2GT-POE-IN is a high-performance, unmanaged PoE+ switch designed for small to medium-sized businesses and surveillance applications. With 8 PoE+ ports and 2 Gigabit uplink ports, it provides reliable power and data connectivity for IP cameras, access points, and other network devices. The switch features a total PoE budget of 120W, with up to 30W per port, supporting IEEE 802.3af/at standards. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments.

Advantages

This switch offers a cost-effective solution for expanding your network with PoE capabilities. The plug-and-play design requires no configuration, saving time and effort. With a switching capacity of 5.6 Gbps and a packet forwarding rate of 4.17 Mpps, it delivers smooth data transfer. The extend mode allows transmission distances up to 250m at 10Mbps, perfect for long-range camera installations. Surge protection of 6KV safeguards your equipment against power surges.

Suitable for

• IP surveillance systems
• Wireless access points
• VoIP phone networks
• Small office/home office (SOHO) networks
• Retail and hospitality environments

Key specifications

• 8 x 10/100Mbps PoE+ ports (IEEE 802.3af/at, up to 30W per port, total 120W)
• 2 x 10/100/1000Mbps RJ45 uplink ports
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.17 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 10K
• Fanless design for silent operation
• Desktop or wall-mountable
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: -10°C to 45°C (14°F to 113°F)
• Surge protection: 6KV
• Extend mode: up to 250m at 10Mbps

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. The switch is best suited for networks requiring reliable PoE delivery without the need for advanced management features. Ideal for expanding your network in a cost-effective manner.
