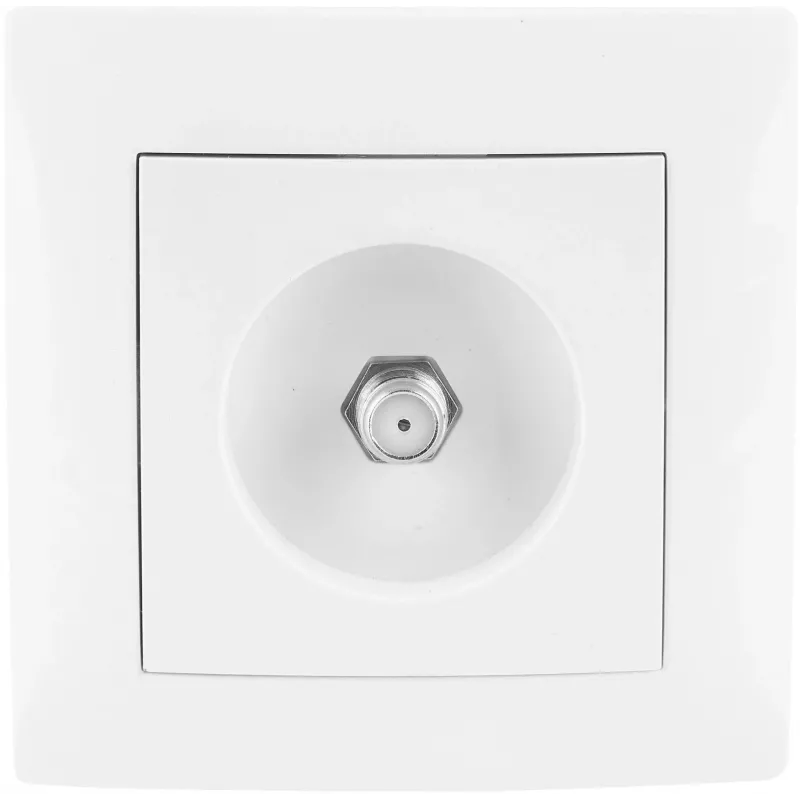

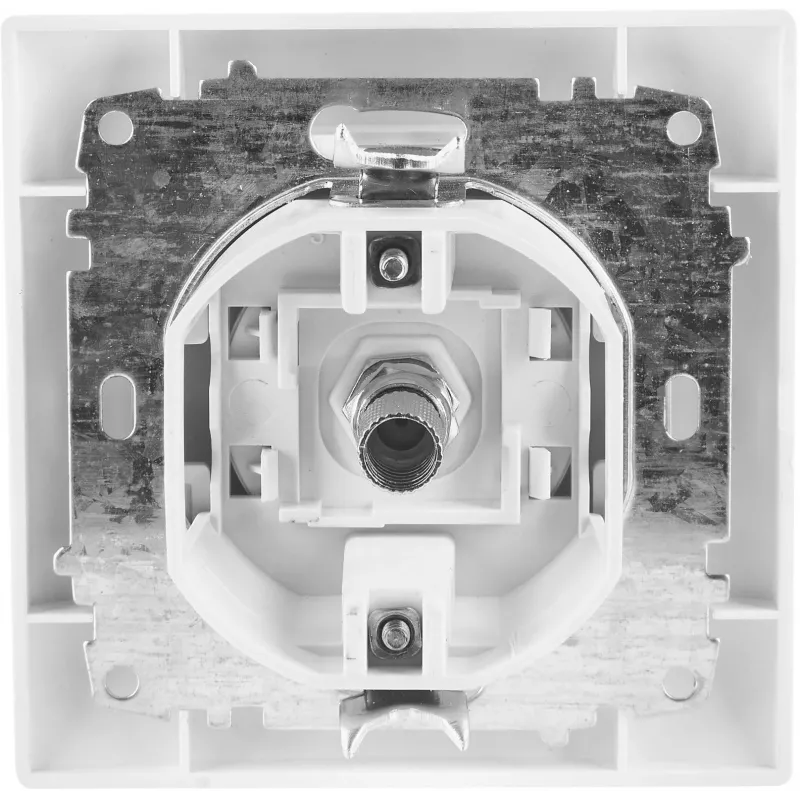

VCX WESA LC 45 RTV toma final blanco

The VCX WESA LC 45 RTV end socket delivers reliable TV and radio signal distribution in single-cable antenna systems. Its flush-mounted design and 75 Ohm impedance ensure stable performance across the 5-862 MHz frequency range, making it ideal for star topology and multi-switch installations.

Advantages

This end socket provides separate TV and radio outputs with low insertion loss of just 1.5 dB, preserving signal quality. The ABS plastic housing offers durability, while shielding class A minimizes interference for clear reception.

Suitable for

• Individual end-point connections in residential or commercial buildings
• Star topology antenna systems requiring dedicated outlets
• Multi-switch systems where loop-through is not needed

Key specifications

• Socket type: RTV end socket
• Outputs: TV (IEC male) and Radio (IEC female)
• Frequency range: 5-862 MHz for both TV and radio
• Insertion loss: 1.5 dB
• Impedance: 75 Ohm
• Return loss: >10 dB
• Mounting: Flush-mounted
• Material: ABS plastic
• Color: White

Recommendations

Pair this socket with high-quality coaxial cables and connectors to maintain signal integrity. Ensure proper grounding in the antenna system to maximize performance and safety.
