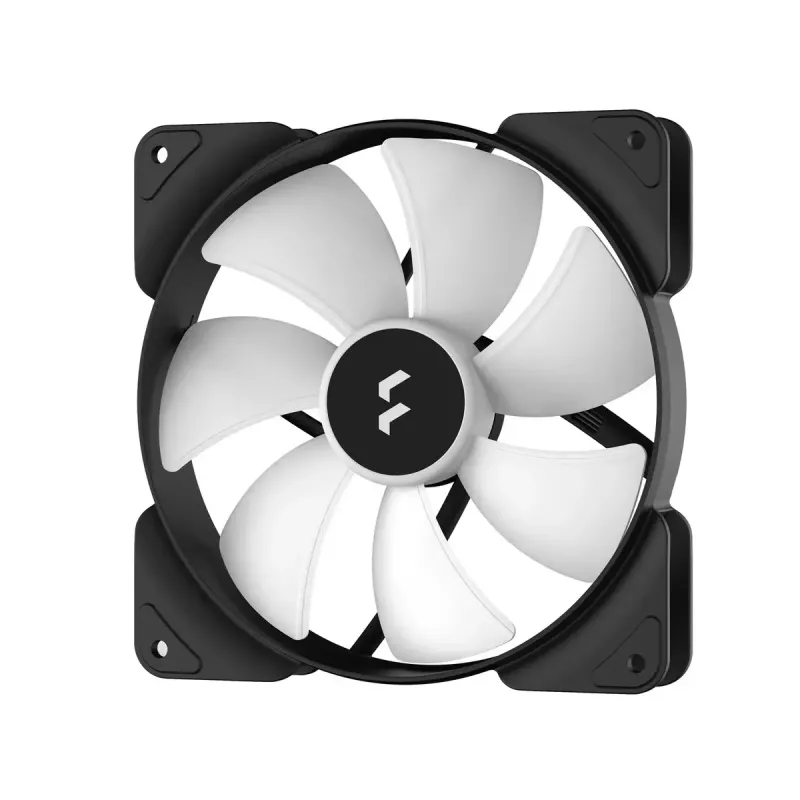

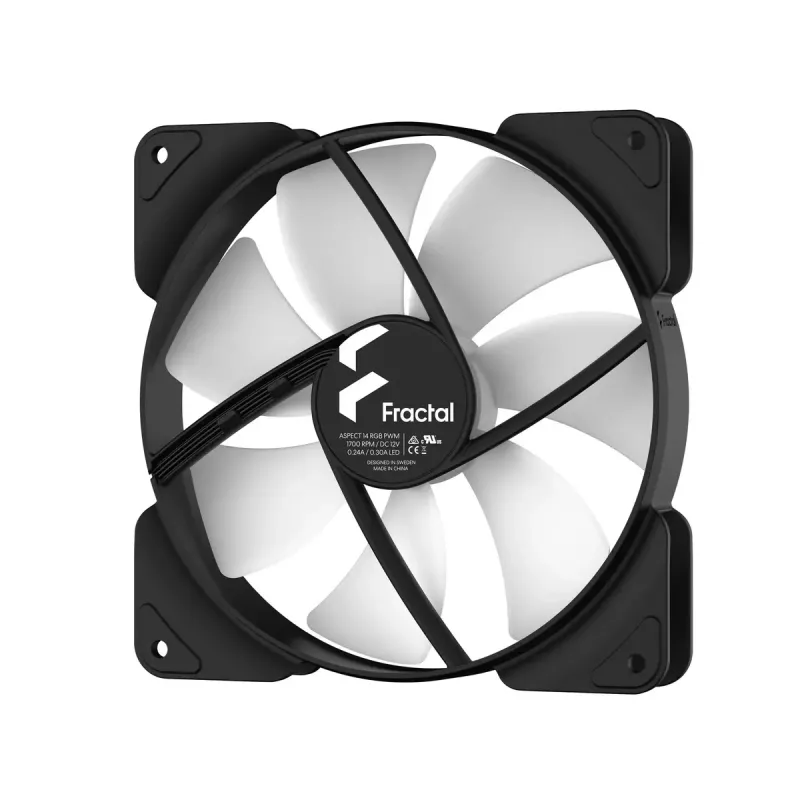

Ventilador de carcasa Fractal Design Aspect 14 RGB PWM

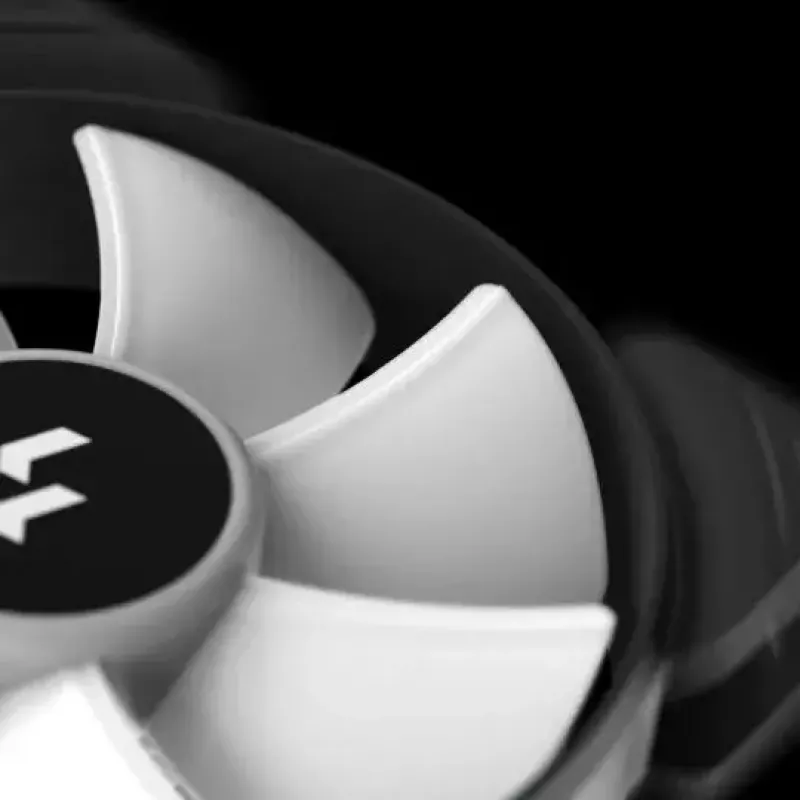

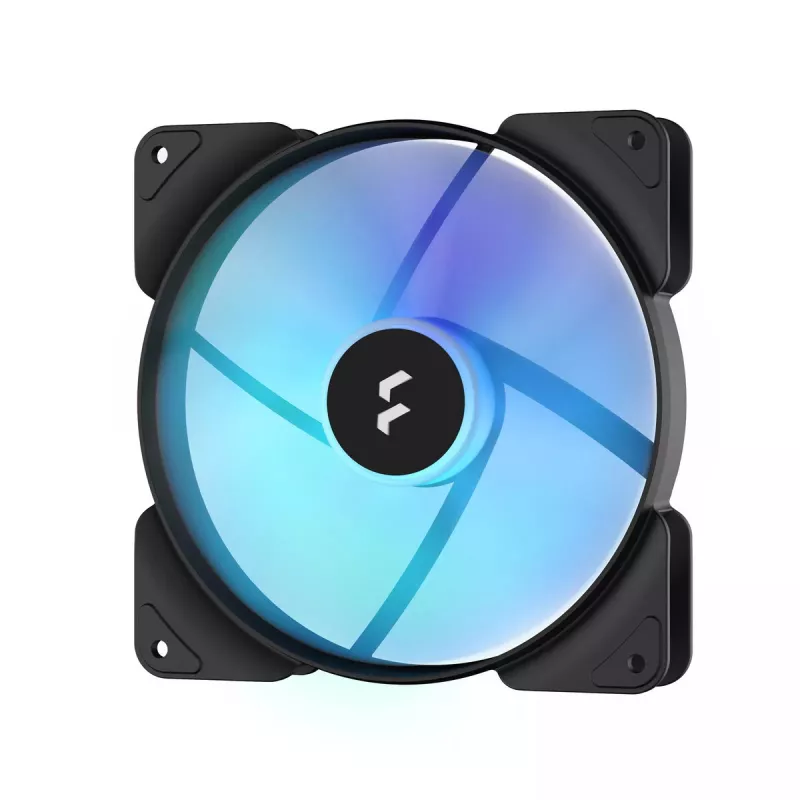

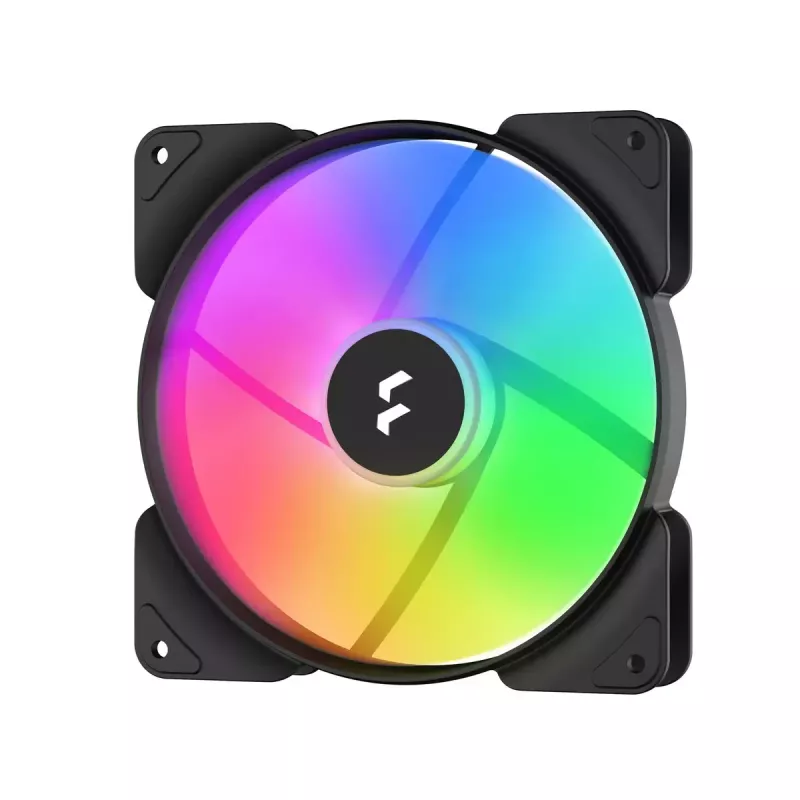

The Fractal Design Aspect 14 RGB PWM is a 140 mm case fan that combines an aesthetic frame with performance-focused features. It delivers airflow up to 132.5 m³/h, operates at 12 V with a speed range from 500 to 1700 RPM and uses a rifle bearing for improved durability. Built-in hub-mounted RGB with six individually addressable LEDs provides customizable lighting, while aerodynamic stator struts and Trip Wire technology reduce turbulence and improve blade efficiency. The fan includes a chaining feature to simplify cable management and is compatible with common motherboard RGB ecosystems.

Advantages

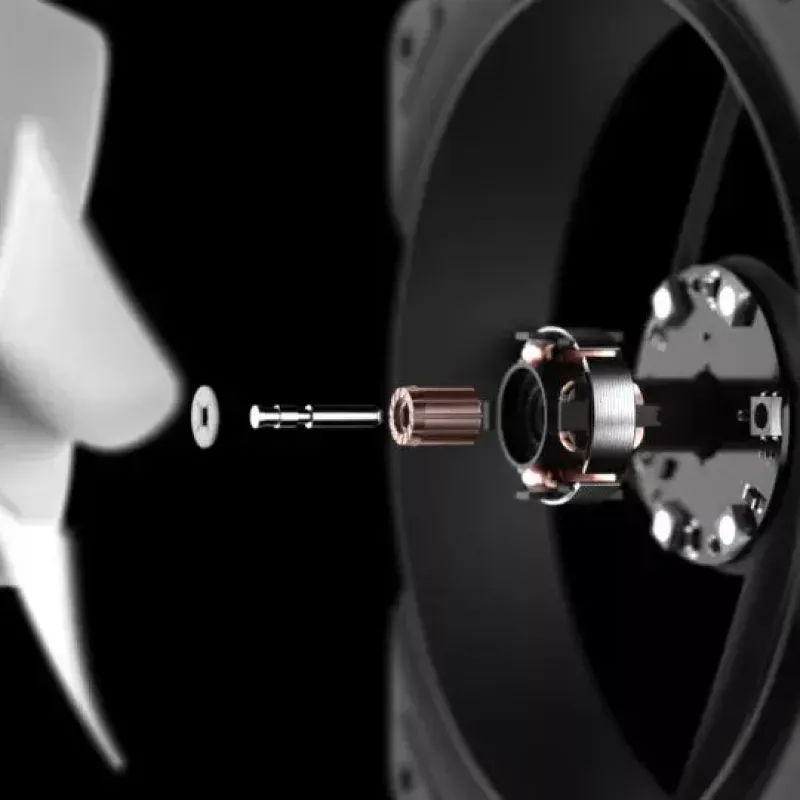

The Aspect 14 RGB PWM balances visual customization and functional cooling: hub-mounted RGB lighting for controlled effects, aerodynamic stator struts to lower noise and turbulence, Trip Wire technology to enhance blade efficiency, and a rifle bearing for better longevity compared with standard sleeve bearings. The built-in chain feature facilitates neat cabling when using multiple fans.

Suitable for

• Case cooling in desktop PC builds
• Systems requiring RGB lighting synchronized with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome or Razer Chroma

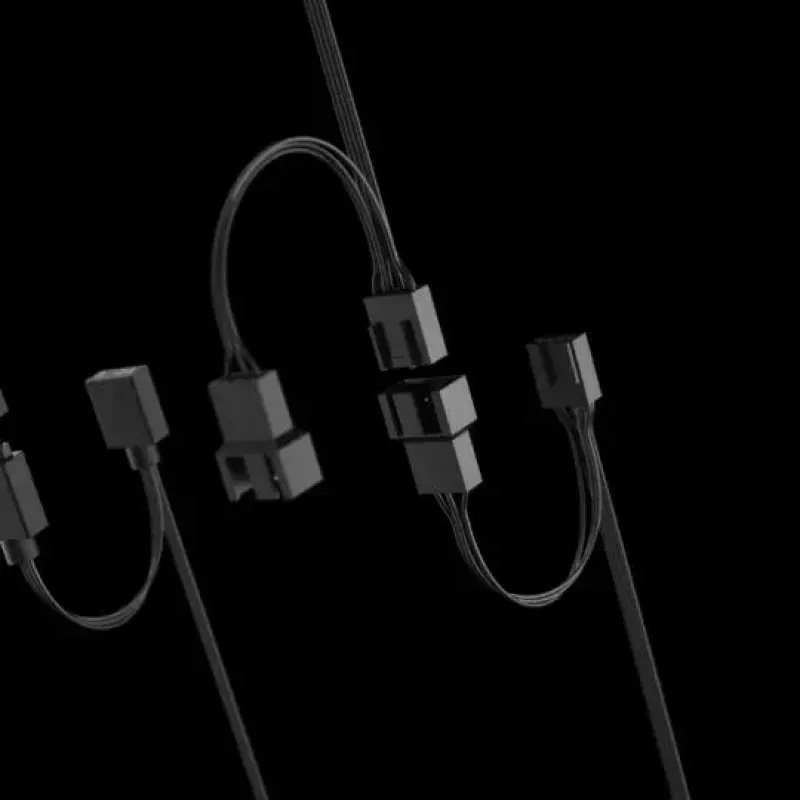

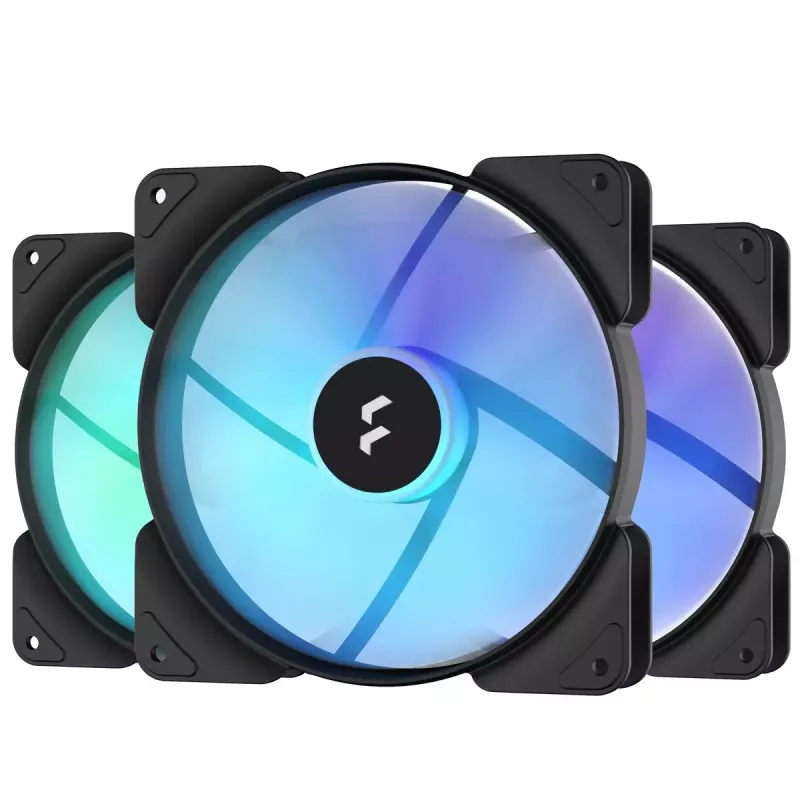

• Multi-fan setups where simplified cable management is preferred

Key specifications

• Fan diameter: 140 mm
• Speed range: 500–1700 RPM
• Maximum airflow: 132.5 m³/h
• Static pressure: 0.3–2.05 mmH2O
• Voltage: 12 V
• Bearing type: rifle bearing
• Product colour: Black
• Weight: 0.155 kg
• MPN: FD-F-AS1-1407
• EAN: 7340172703549

How to use

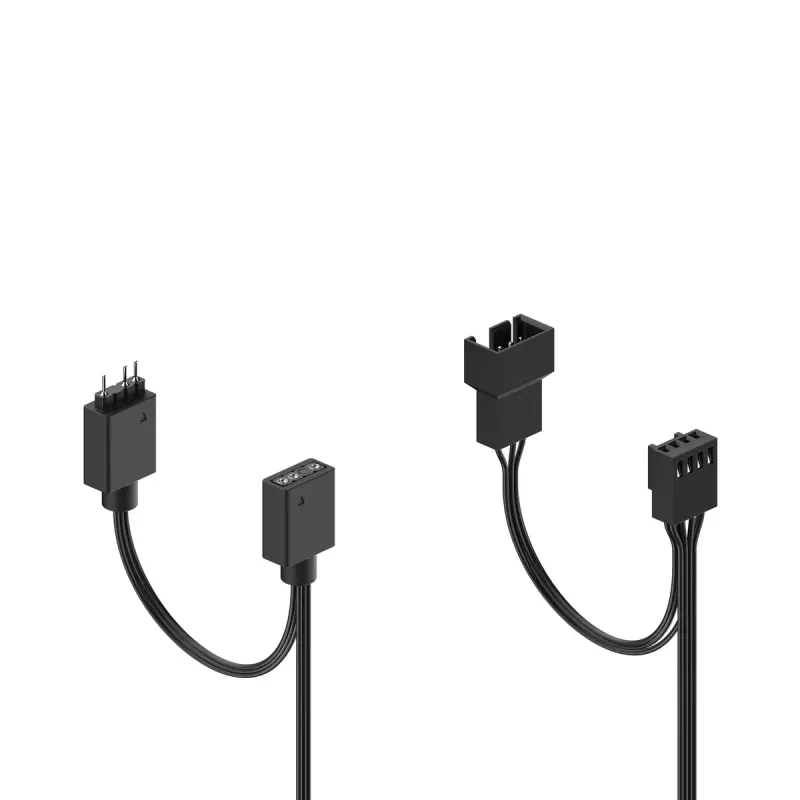

Install the Aspect 14 RGB PWM into a 140 mm fan mount in your case, aligning the airflow direction as needed. Connect the PWM power cable to the motherboard fan header for speed control and the RGB connector to a compatible RGB header or controller to manage lighting. Use the chaining feature to link multiple Aspect fans for simplified cable routing; ensure connections are secure before powering the system.

Recommendations

For quieter operation, set the fan curve in the motherboard or fan controller to reduce speeds under low load. Ensure your case supports 140 mm fans and confirm RGB header compatibility with your motherboard or external controller before installation.
