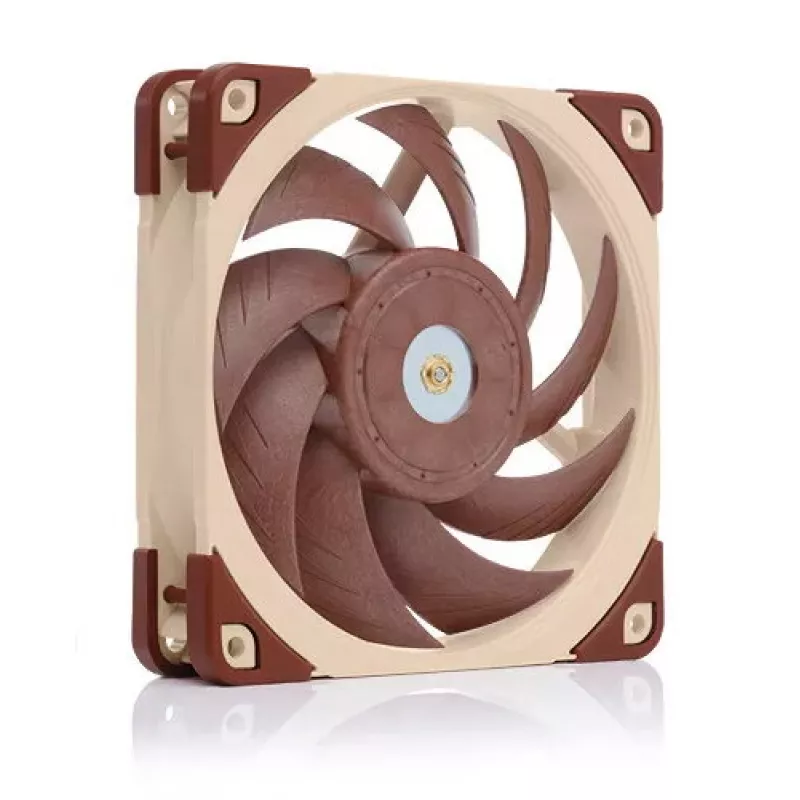

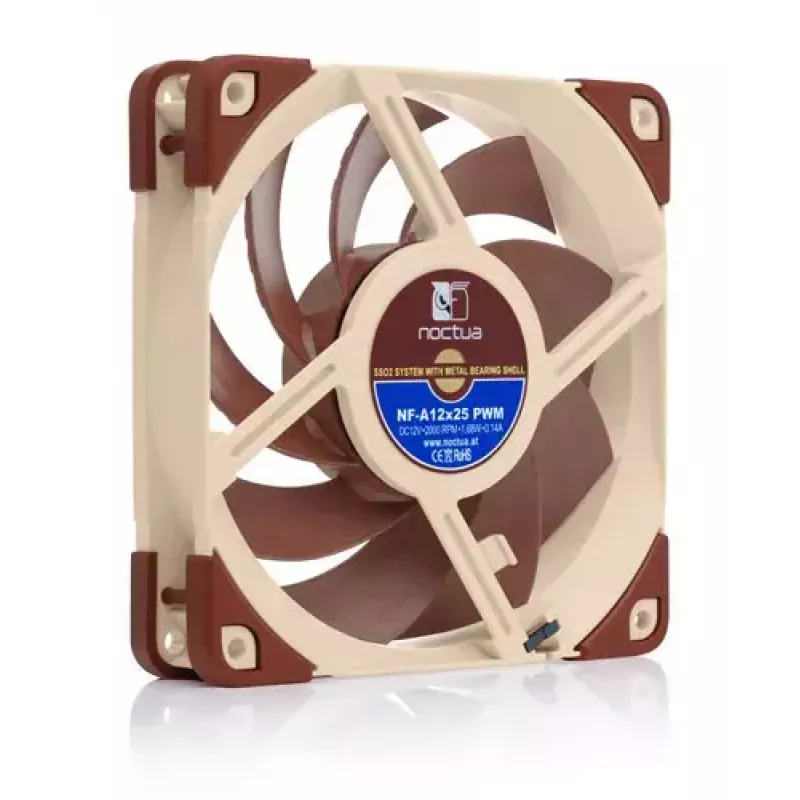

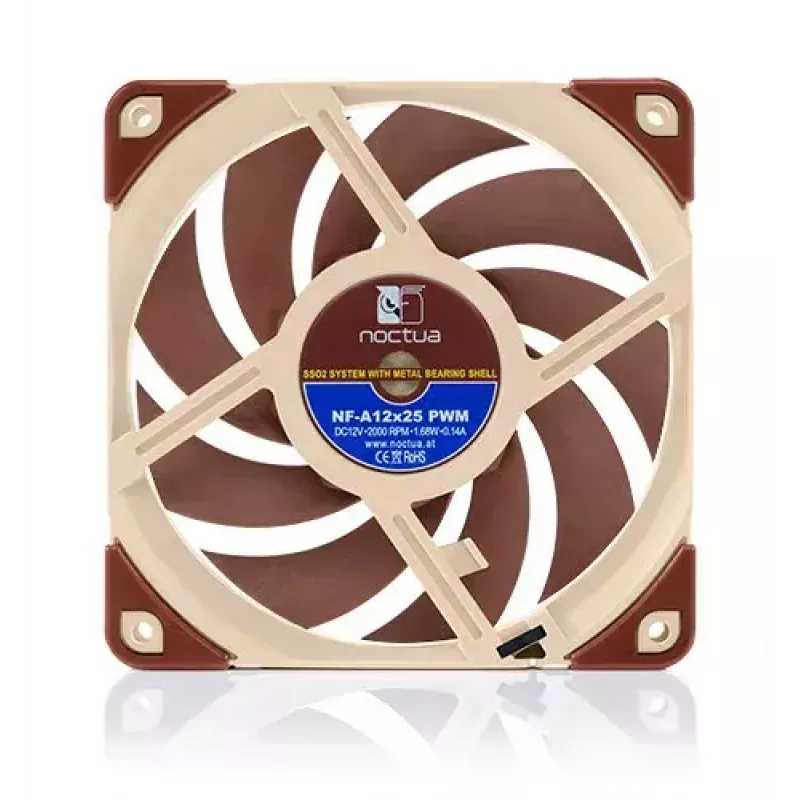

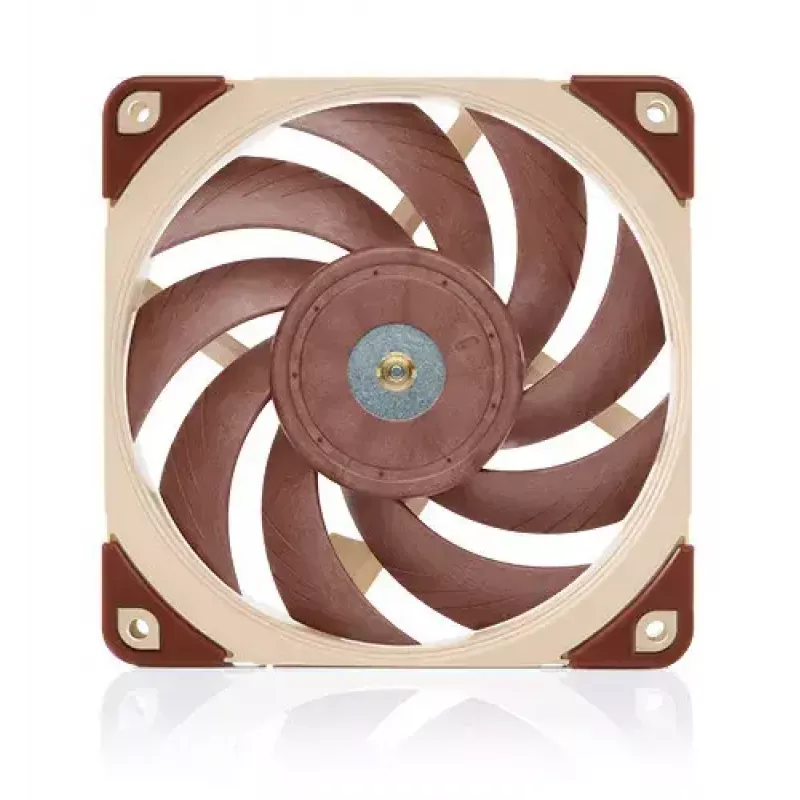

Ventilador Noctua NF-A12x25 PWM 120 mm, 12 V, PWM, máx. 2000 rpm, 102,1 m³/h, 22,6 dB

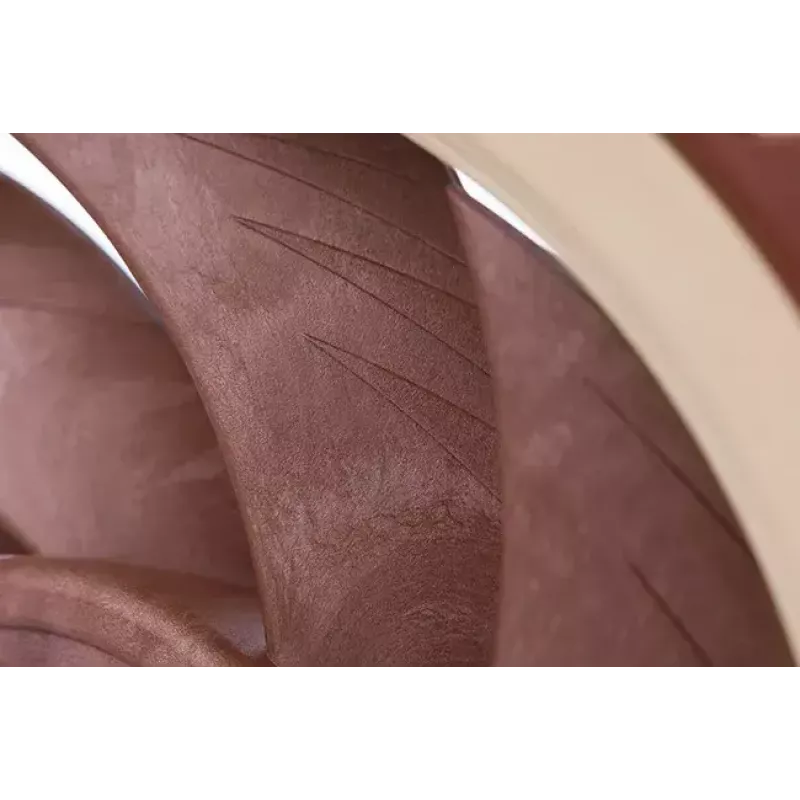

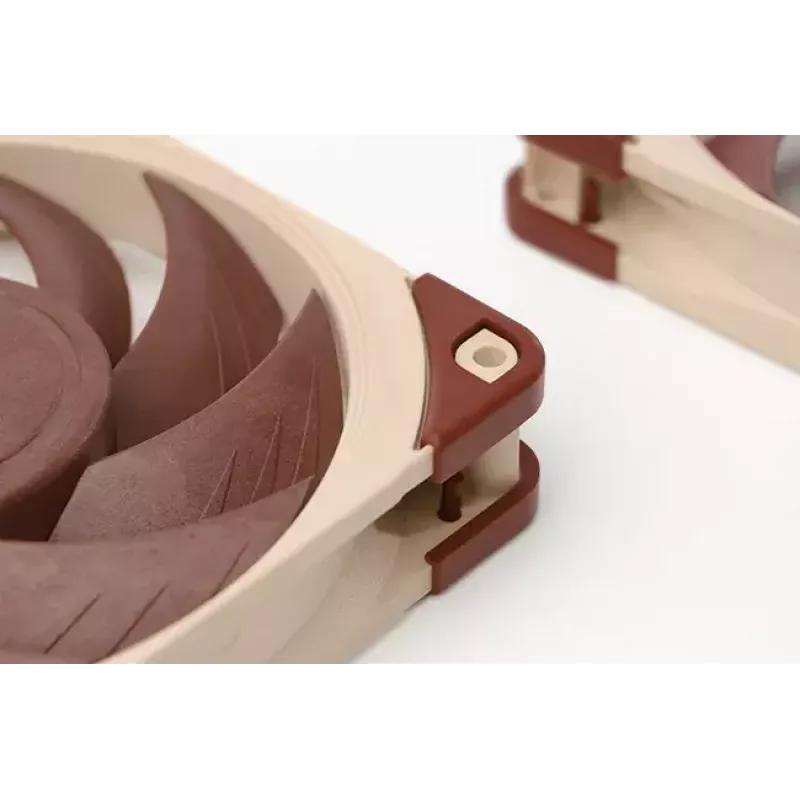

The Noctua NF-A12x25 is a next-generation 120 mm fan engineered for quiet, efficient cooling. It combines advanced aerodynamic features such as the AAO (Advanced Acoustic Optimisation) frame and Flow Acceleration Channels with a tight 0.5 mm blade tip clearance enabled by the Sterrox liquid-crystal polymer (LCP). A metal‑reinforced motor hub and axis ensure precise rotor alignment and stability for consistent performance across case cooling, heatsinks and watercooling radiators.

Advantages

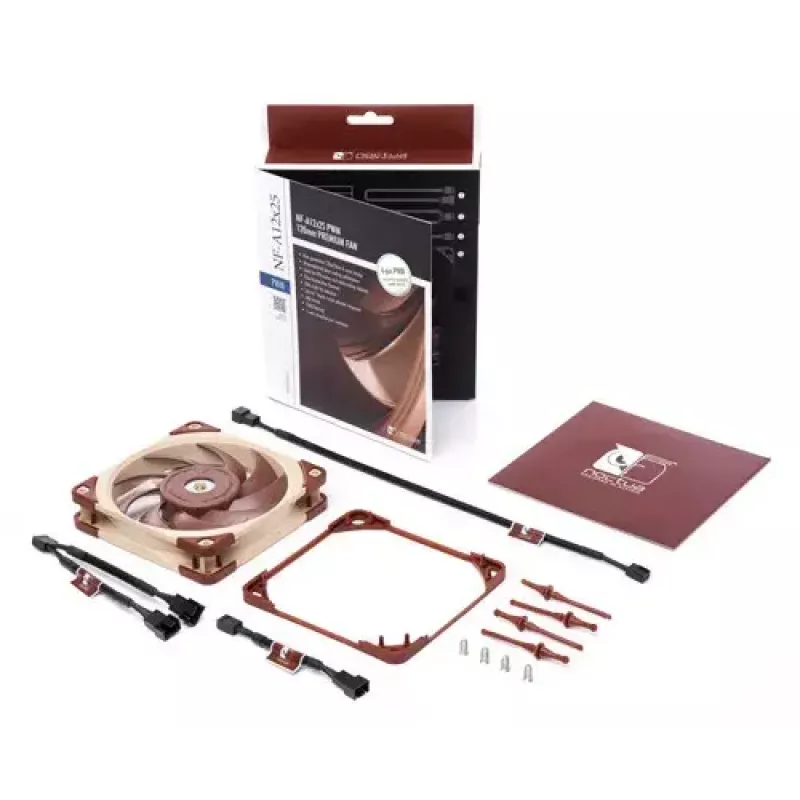

The NF-A12x25 offers low noise at high efficiency thanks to its refined blade geometry and premium SSO2 bearing. Its versatile design performs well in both low-impedance airflow applications and high-impedance pressure scenarios. The 4‑pin PWM model supports automatic speed control and includes a Low-Noise Adaptor to limit maximum speed from 2000 to 1700 rpm, while a comprehensive accessory bundle and a 6‑year manufacturer warranty provide added value and reliability.

Key specifications

• Size: 120 mm
• Tip clearance: 0.5 mm
• Material: Sterrox liquid-crystal polymer (LCP)
• Bearing: SSO2 reference-class bearing
• Connector: 4‑pin PWM
• Maximum speed (nominal): 2000 rpm (with Low-Noise Adaptor limited to 1700 rpm)
• Applications: case cooling, heatsinks, watercooling radiators
• Warranty: 6 years manufacturer warranty

How to use

Install the fan in the desired orientation matching airflow direction marks, secure it with the supplied mounting hardware, and connect the 4‑pin PWM cable to a compatible motherboard fan header. Configure automatic speed control in BIOS or fan control software if required. Use the Low-Noise Adaptor when reduced maximum rpm and lower noise are preferred.

Recommendations

For optimal results, ensure the 0.5 mm tip clearance is not obstructed and maintain a clean airflow path. Use PWM control for automatic regulation and choose the Low-Noise Adaptor in noise-sensitive environments.
