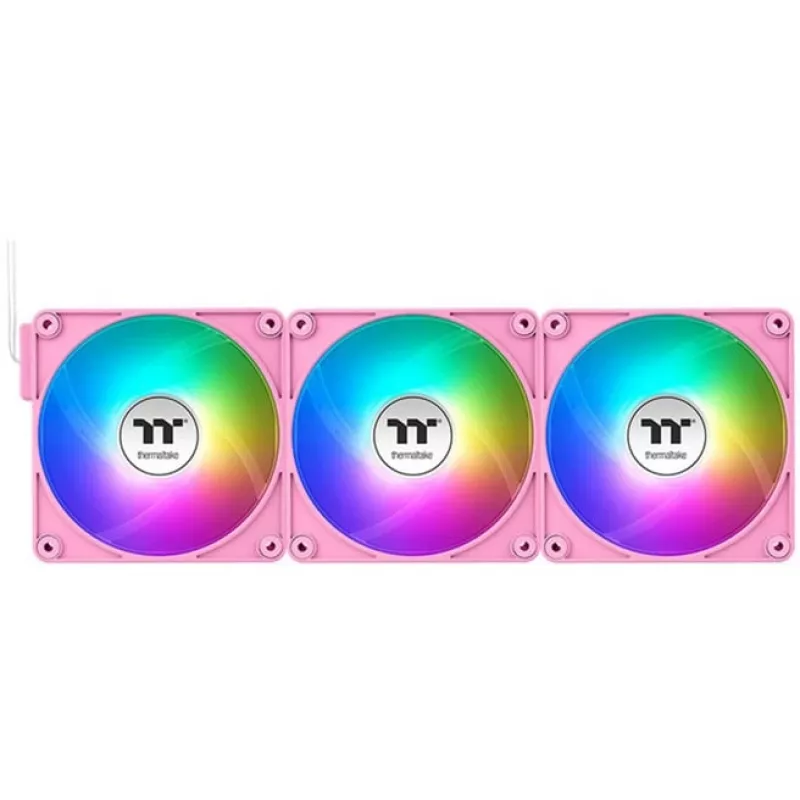

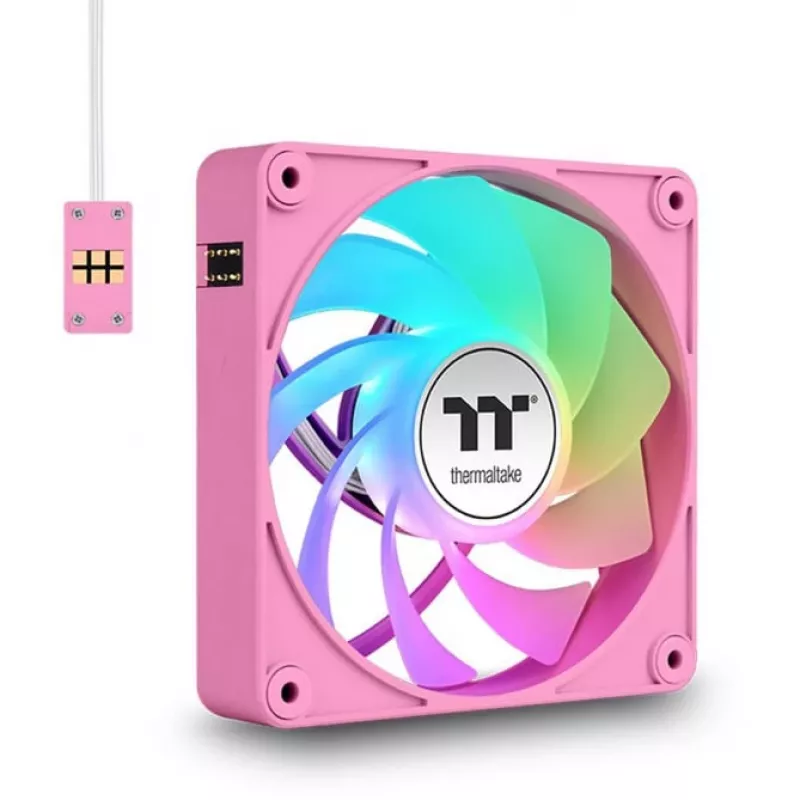

Ventilador THERMALTAKE CT140 EX Reverse ARGB Sync 140 mm, 500–1800 RPM, rosa, 3 unidades

THERMALTAKE CT140 EX Reverse ARGB Sync is a 140 mm PC case fan kit (3 pieces) designed for chassis ventilation and component cooling. Each fan uses a hydraulic bearing and operates within a 500–1800 RPM range, delivering up to 2.54 mmH2O static pressure and supporting PWM speed control. The reversed blade design and integrated addressable RGB make lighting visible from multiple airflow directions, while MagForce 2.0 magnetic connection simplifies fan placement and alignment for cleaner installation in standard 140 mm mounts.

Advantages

The kit offers a balance of airflow and static pressure suitable for radiators and case intake or exhaust positions, maintaining a top speed of 1800 RPM for improved cooling compared with earlier series models. Hydraulic bearings provide lower noise and longer lifespan, and PWM compatibility enables automatic speed adjustment according to system temperature. Addressable RGB with nine LEDs per fan supports synchronization with compatible motherboard software for coordinated lighting effects.

Suitable for

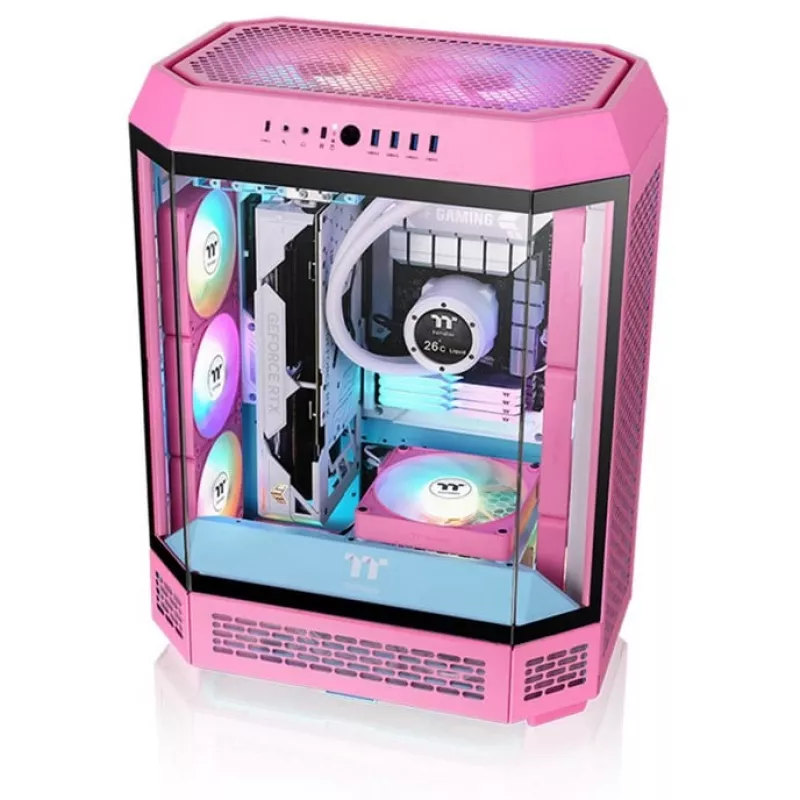

• Case airflow improvement in desktop PCs and gaming rigs

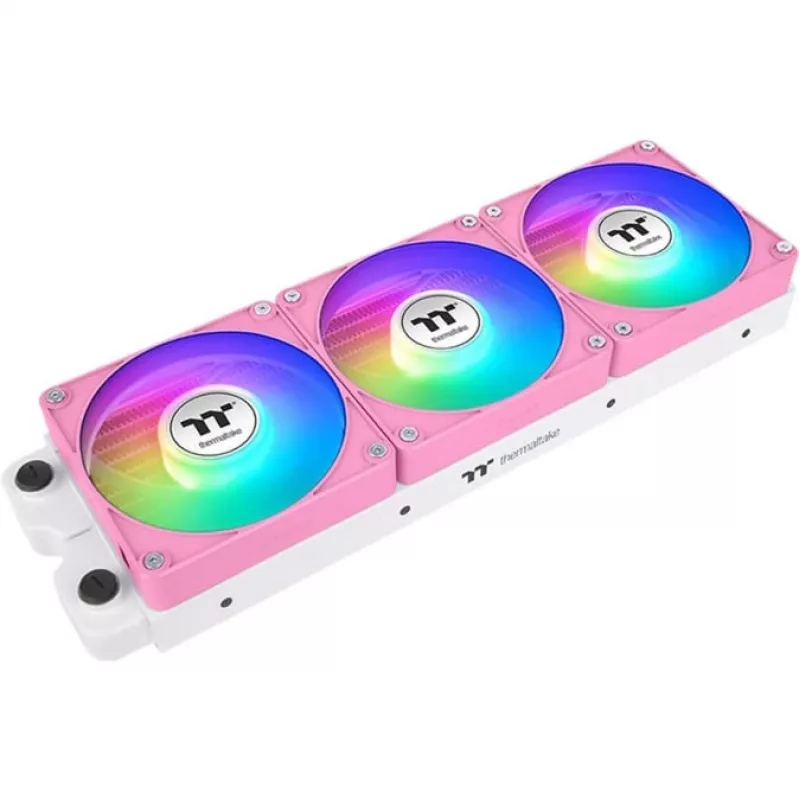

• Mounting on 140 mm-compatible radiators for liquid cooling loops
• Replacement or upgrade of existing 140 mm case fans
• Systems requiring synchronized ARGB lighting with motherboard control

Key specifications

• Fan diameter: 140 mm
• Operating speed: 500–1800 RPM (PWM supported)
• Maximum static pressure: up to 2.54 mmH2O
• Airflow: approximately 94.95 CFM
• Noise level: approximately 32.8 dB
• Bearing type: hydraulic
• Lighting: addressable RGB, 9 LEDs per fan, motherboard sync compatible
• Dimensions: 140 x 140 x 25 mm
• Colour: Pink
• Kit quantity: 3 fans

How to use

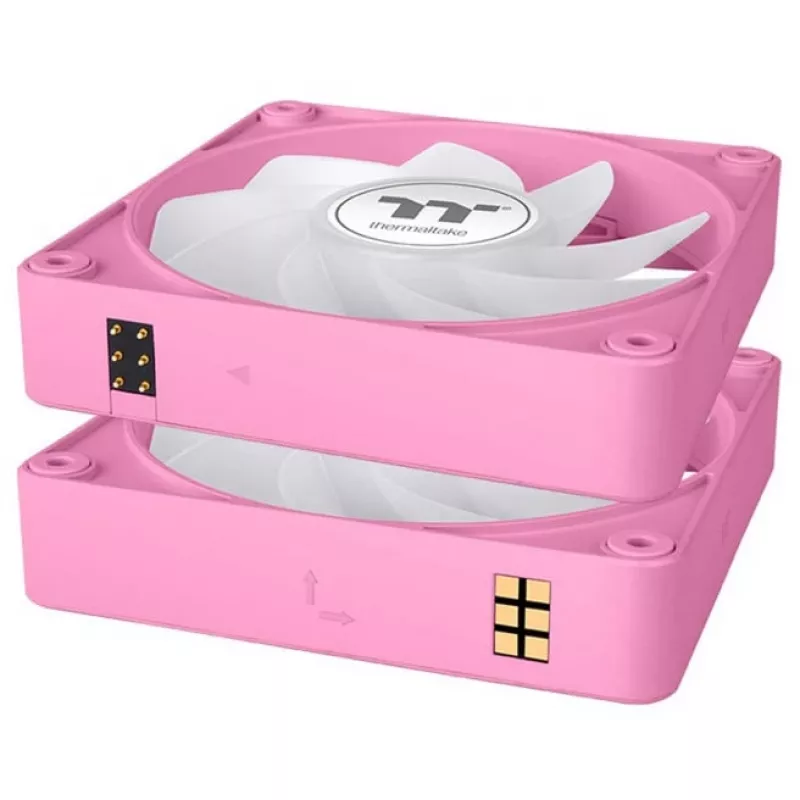

Install each 140 mm fan into standard case or radiator mounts using the included screws, aligning the airflow direction arrows as required for intake or exhaust. Connect the PWM power cable to a fan header on the motherboard to enable automatic speed control. Attach the ARGB connector to a compatible addressable RGB header and use the motherboard lighting software to configure colours and effects. Use the MagForce 2.0 magnetic connection features to align fans when stacking or positioning them closely for improved routing.

Recommendations

Place the CT140 EX Reverse ARGB Sync fans to create a balanced airflow plan: pair intake fans at the front or bottom with exhaust fans at the top or rear. For radiator setups, position fans to push or pull air consistently through the fins and monitor temperatures after installation to fine-tune PWM curves. Avoid obstructing fan intake or exhaust and periodically clean blades to maintain performance and low noise.
