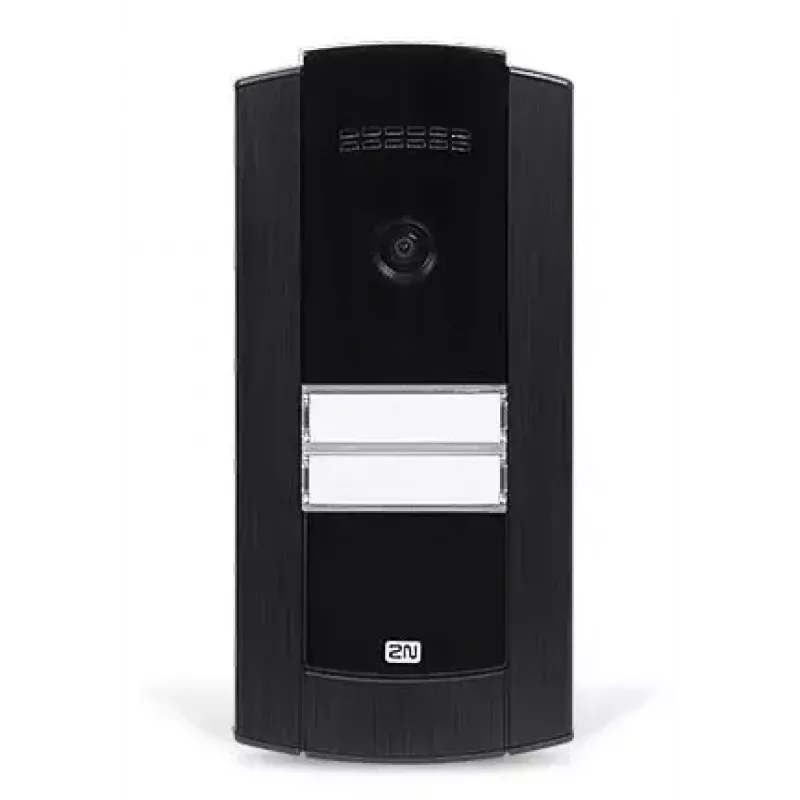

Videoportero automático 2N IP Base Negro

2N® IP Base is a compact video intercom designed for smaller installations, offering HD camera video and high-quality audio in a durable metal housing. The unit supports one- or two-button configurations, has integrated inputs/outputs for electric locks or other devices, and includes a tamper switch. It is suitable for outdoor mounting with IP65 protection and measures 109 × 31 × 229 mm.

Advantages

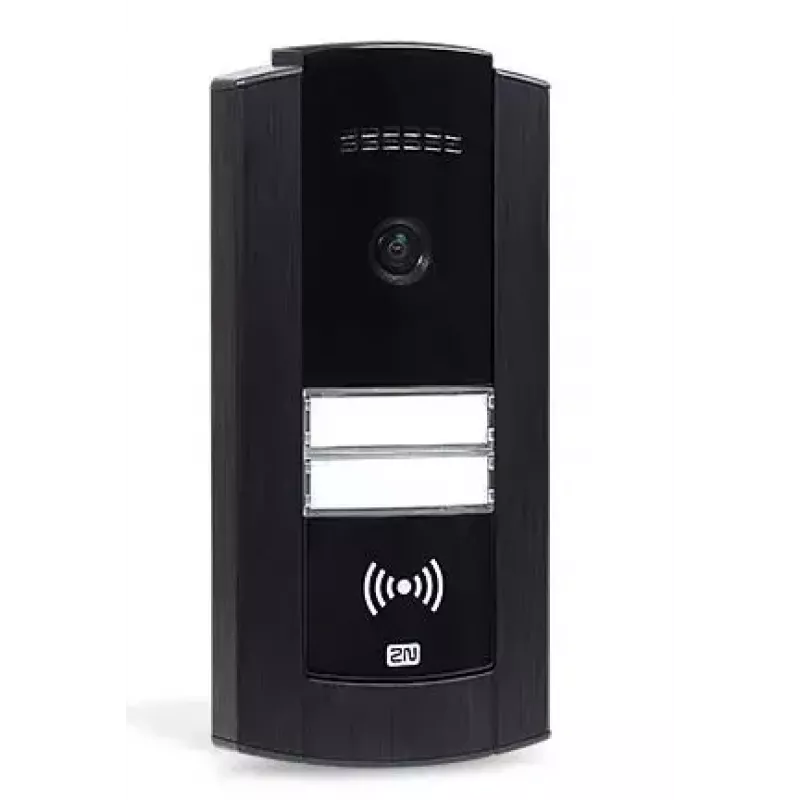

The intercom provides HD video (1280 × 960 px) with a wide viewing angle and advanced audio processing including echo cancellation for clear two-way communication. Installation is fast and intuitive, reducing installation time and costs, and remote configuration via 2N® cloud service allows secure, centralized device management. The basic model can be extended with a 125 kHz or 13.56 MHz RFID card reader for access control, and the aluminium frame meets IK7 impact resistance.

Suitable for

• Small residential entrances and apartment buildings
• Small commercial premises and offices
• Access control points requiring basic RFID or electric lock integration

Key specifications

• Model: 2N IP Base (MPN: 9156111CB)
• Video resolution: up to 1280 × 960 px (HD)
• Viewing angle: horizontal 135°, vertical 109°
• Audio: 2 W speaker; supported codecs G.711, G.722; echo cancellation
• Protection rating: IP65; impact resistance IK7
• Power: DC, typical consumption 400 mA
• Dimensions: 109 mm (W) × 31 mm (D) × 229 mm (H)

How to use

Mount the intercom on a suitable outdoor surface and connect power and network according to the installation guide. Choose the one- or two-button configuration as required and connect optional equipment such as an electric lock via the provided inputs/outputs. If using RFID, install the compatible 125 kHz or 13.56 MHz reader module. Configure basic settings locally or use 2N® Remote Configuration to apply settings and updates over a secured cloud connection.

Recommendations

For reliable operation, install the unit at a height that provides the best camera view of the entry area and protects the device from direct spray. Use a stable DC power supply and keep firmware updated via 2N® Remote Configuration. For access control, test RFID compatibility before final installation.
