Videoportero Hikvision DS-KH8350-WTE1

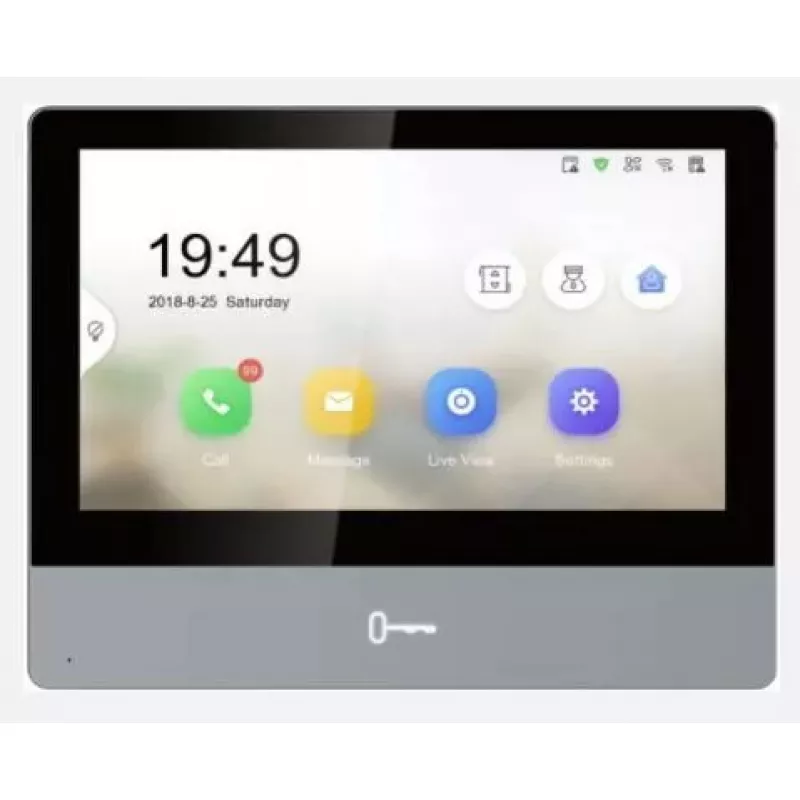

The Hikvision DS-KH8350-WTE1 is a 7-inch video intercom indoor monitor with a slim, two-tone black and grey design. It provides HD video and audio communication with door stations and external cameras, supports PoE and Wi‑Fi connectivity, and allows remote unlocking and monitoring through client software or mobile apps. The device features a capacitive IPS touchscreen and an updated user interface for intuitive operation.

Advantages

Premium tempered glass on the front and an aerospace-grade aluminum frame contribute to a durable, premium build. The 7-inch colorful IPS capacitive touchscreen (1024 × 600) offers clear visuals while the 8.6 mm ultra-slim profile keeps the unit unobtrusive. The product won the Reddot Award 2017 and supports standard PoE for flexible installation. Additional features include UI V2.0 for easier navigation, capture during video calls, remote unlocking via client or mobile, and live view of door stations and external cameras.

Suitable for

• Residential apartment entry panels and home intercom systems
• Small offices requiring visitor monitoring and remote access
• Integration with Hikvision camera systems for centralized monitoring

Key specifications

• Display diagonal: 17.8 cm (7")
• Display technology: IPS capacitive touchscreen
• Display resolution: 1024 × 600
• Dimensions (W×H×D): 180 × 140 × 22.4 mm; profile thickness: 8.6 mm
• Colour: Black / Grey
• Network: Fast Ethernet (10/100 Mbit/s), Wi‑Fi 802.11b/g/n (Wi‑Fi 4)
• Power: AC/DC indoor unit; typical power consumption 7 W (200 mA indicated)
• Model / MPN: DS-KH8350-WTE1 / DS-KH8350-WTE1/EU
• EAN: 6954273691592

How to use

Install the DS-KH8350-WTE1 on an indoor wall or mount according to the manufacturer's instructions; connect to the local network via Ethernet with PoE or through Wi‑Fi. Use the capacitive touchscreen and the UI V2.0 to view live video, answer calls from door stations, capture images during calls, and operate remote unlocking. For remote monitoring and configuration, install the Hikvision client software on a PC or the Hikvision mobile app and register the device following the setup wizard.

Recommendations

Place the unit at eye level in a dry indoor location, ensure stable network connectivity for live view and remote unlock features, and apply regular firmware updates provided by Hikvision to maintain security and compatibility.
