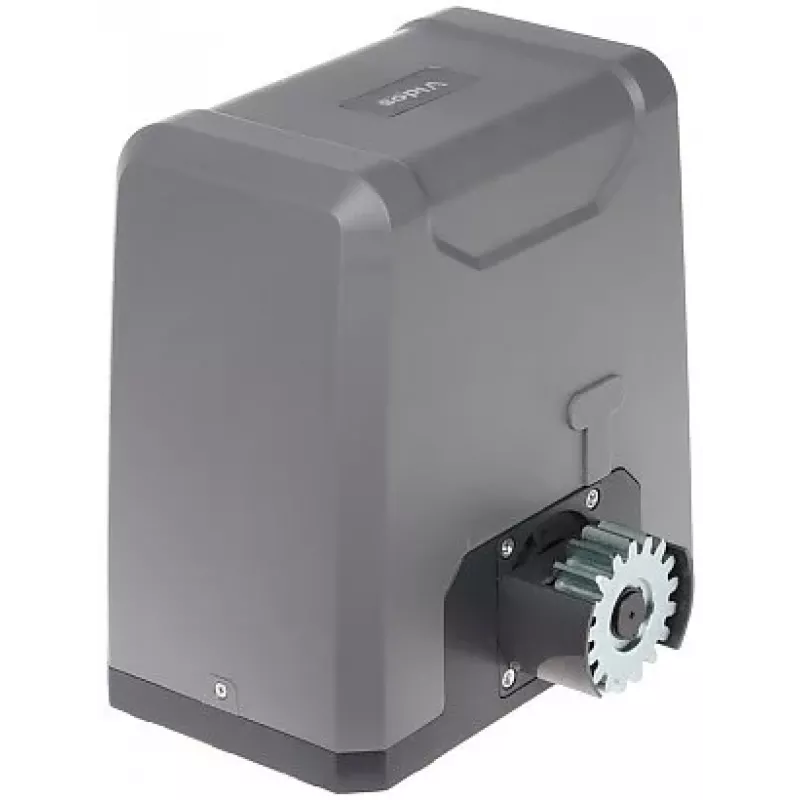

VIDOS AB1000 Motor para Puerta Corredera 1000kg 230V 370W IP44

The VIDOS AB1000 is a robust and reliable sliding gate opener designed for residential and light commercial applications. With a maximum gate weight capacity of 1000 kg, it provides powerful and smooth operation for sliding gates up to 12 meters per minute. The integrated control unit, magnetic limit switches, and amperometric obstacle detection ensure safe and convenient use. Suitable for gates requiring frequent operation, the AB1000 features a duty cycle of S2=15 min and operates in temperatures from -20°C to +50°C.

Advantages

High torque of 25 Nm ensures reliable movement even for heavy gates. Soft start/stop function reduces mechanical stress and extends gate life. Keyed manual release allows operation during power outages. Supports up to 60 remote controls and includes pedestrian mode for partial opening.

Suitable for

• Residential sliding gates up to 1000 kg
• Light commercial entrances
• Gates requiring automatic closing and obstacle detection

Key specifications

• Max Gate Weight: 1000 kg
• Power Supply: 230V AC, 50Hz
• Motor Power: 370 W
• Max Torque: 25 Nm
• Gate Opening Speed: 12 m/min
• Duty Cycle: S2=15 min
• Protection Rating: IP44
• Operating Temperature: -20°C to +50°C
• Limit Switch Type: Magnetic
• Gear Material: Steel
• Soft Start/Stop: Yes
• Obstacle Detection: Amperometric
• Manual Release: Keyed
• Integrated Control Unit: Yes
• Radio Frequency: 433.92 MHz
• Max Remote Controls: 60
• Auto-Close Function: Yes
• Pedestrian Mode: Yes
• Photocell Input: Yes

Recommendations

For optimal performance, ensure proper installation and regular maintenance. Use only compatible accessories and remote controls. The AB1000 is designed for gates that are well-balanced and free of excessive friction.
