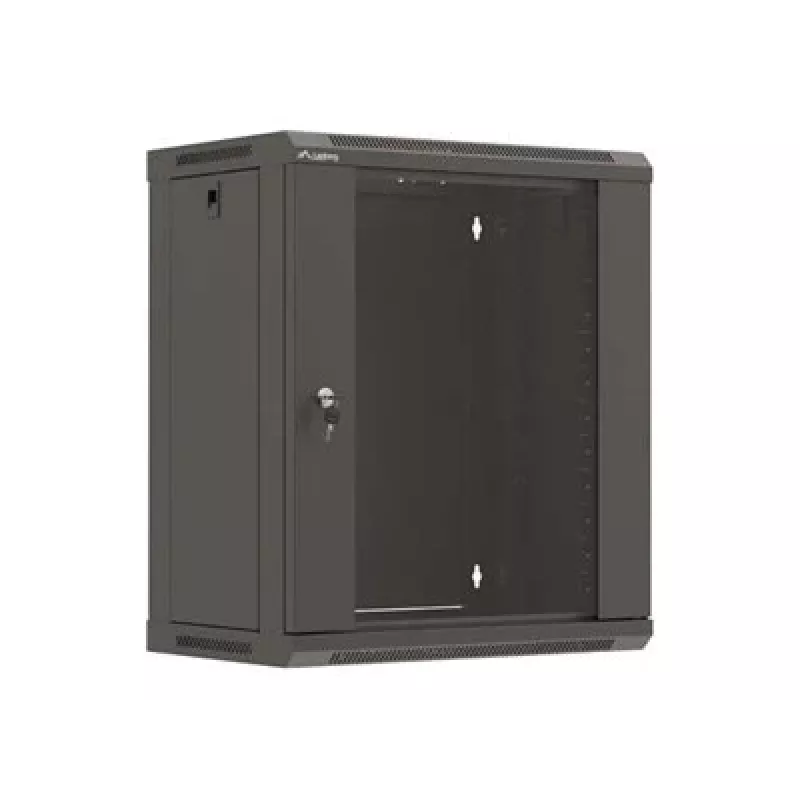

LANBERG WF03-5312-10B armario de pared 19 pulgadas 12U 540x350 Flat Pack con puerta de cristal negro

The Lanberg WF03-5312-10B is a 19-inch wall-mount rack cabinet designed for efficient equipment management in server rooms, offices, and data centers. With a 12U capacity and a compact depth of 350 mm, this flat-pack cabinet offers a modern appearance and robust construction from cold-rolled steel. The tempered glass front door provides visibility and security, while the 220° door opening allows easy access. Suitable for various networking and IT equipment, it supports up to 60 kg load and meets ETSI and IP20 standards.

Advantages

This cabinet combines durability with ease of installation. The flat-pack design reduces shipping volume and allows for quick assembly on-site. The lockable glass door protects equipment while enabling visual monitoring. Four adjustable vertical mounting rails accommodate different device depths, and the 220° door opening provides full access for cabling and maintenance. The cabinet includes a grounding kit, mounting bracket, and M6 screws for secure installation.

Suitable for

• Networking equipment such as switches, patch panels, and routers
• Server and storage devices in small to medium-sized deployments
• Wall-mount installations where floor space is limited
• Environments requiring dust protection and basic security (IP20)

Key specifications

• Rack type: Wall-mount
• Rack standard: 19 inch
• Rack units: 12U
• External dimensions (WxDxH): 600 x 450 x 635 mm
• Internal usable depth: 305 mm
• Material: SPCC cold-rolled steel, tempered glass front door
• Colour: Black (RAL 9004)
• Load capacity: 60 kg
• Door opening angle: 220°
• Protection rating: IP20
• Assembly: Flat-pack (self-assembly required)
• Package content: Cabinet, front lock, grounding cable, M6 screws, mounting bracket
• Manufacturer warranty: 3 years

Recommendations

For optimal performance, ensure the wall is capable of supporting the cabinet's weight (13.8 kg empty) plus the installed equipment. Use the included mounting bracket and screws for secure attachment. The cabinet is designed for indoor use only; avoid exposure to moisture or extreme temperatures. For additional ventilation, optional fan slots are available on the top and bottom panels.
