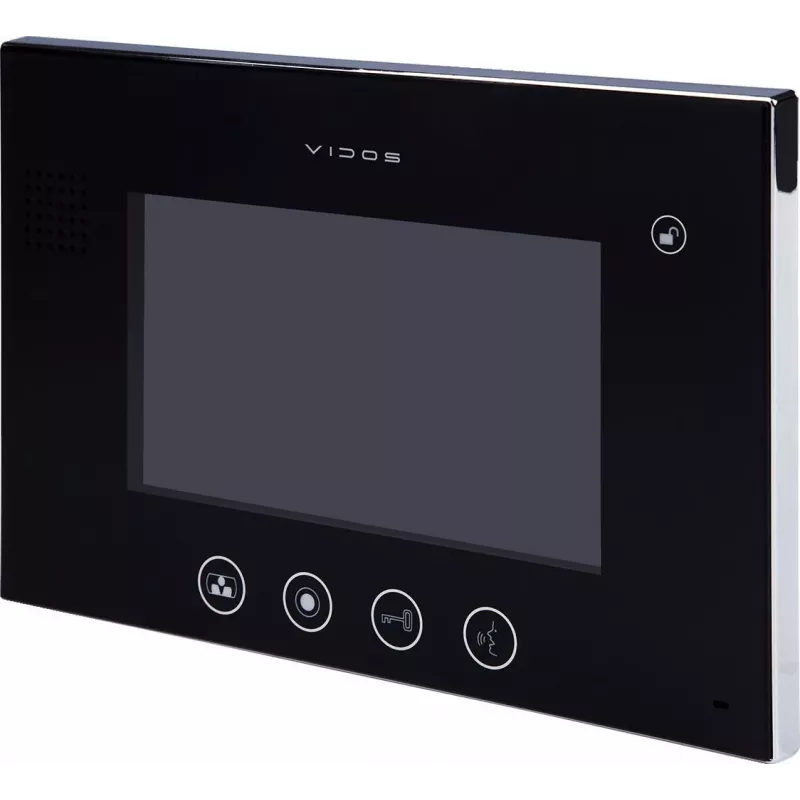

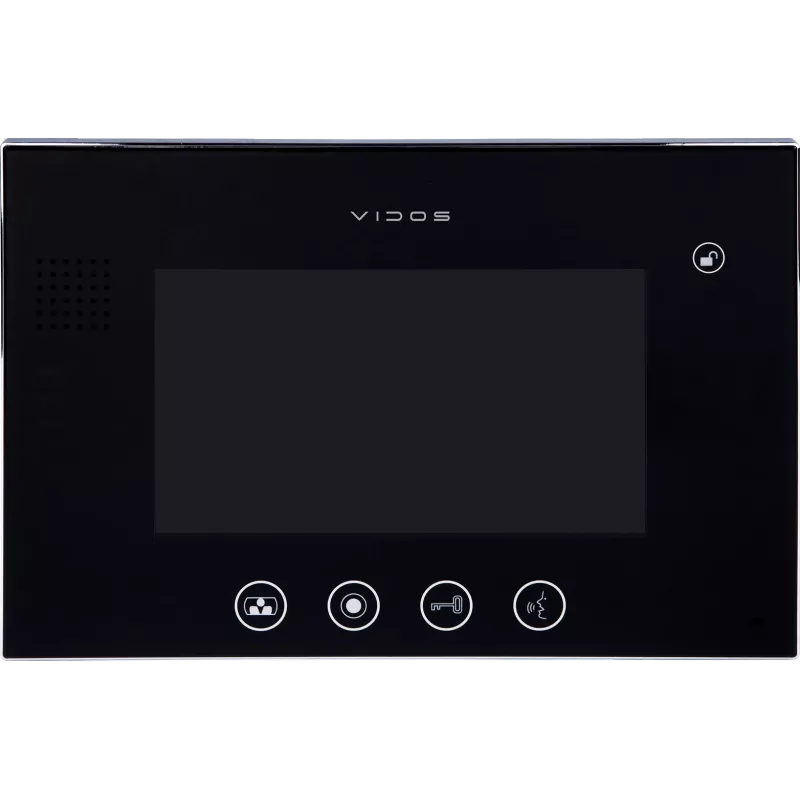

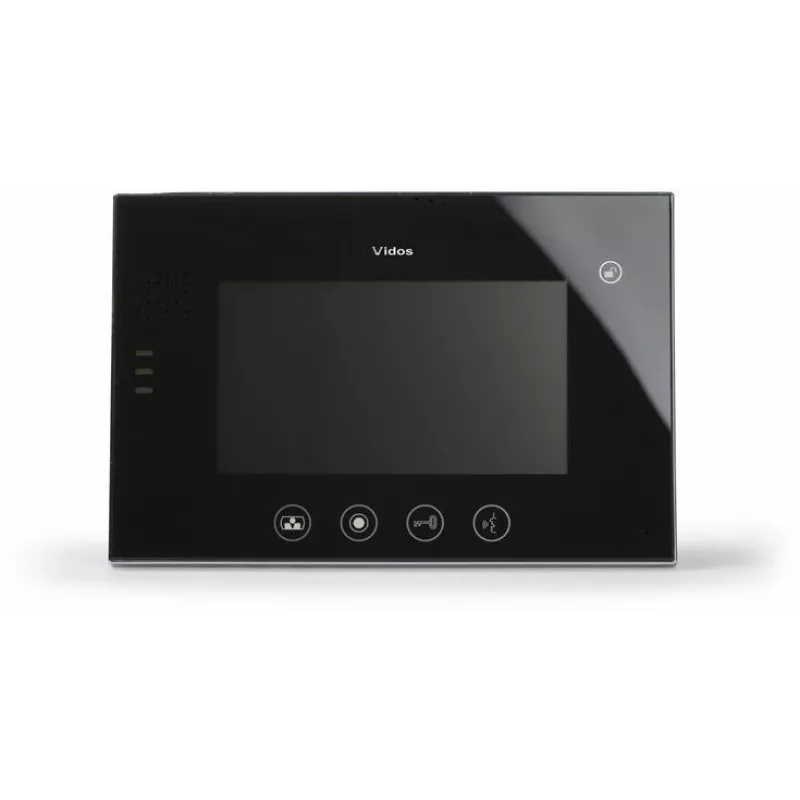

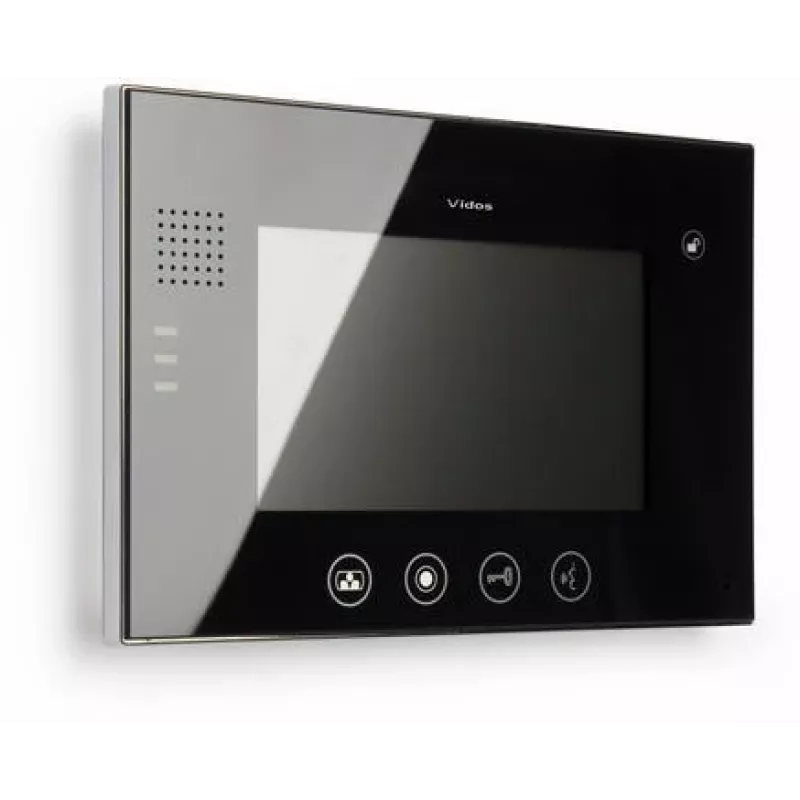

VIDOS M670B Monitor TFT-LCD de 7" para porteros automáticos

The VIDOS M670B is a high-quality 7-inch TFT LCD color monitor designed for modern door entry and intercom systems. With a crisp 800x480 resolution and hands-free communication, this surface-mounted monitor provides clear audio and video, allowing you to see and speak with visitors at your door. It supports up to 2 outdoor panels (or 1 outdoor panel + 1 CCTV camera) and up to 4 internal monitors (1 master + 3 slaves), making it ideal for multi-unit residential or small commercial applications.

Advantages

Easy to install and operate, the M670B offers an intuitive OSD menu for adjusting brightness, contrast, color saturation, and volume. It features 16 ringtone melodies, door release control for electric strikes or gates, and intercom functionality between monitors. With low power consumption (1W standby, 7W operating) and a wide operating temperature range (0°C to +50°C), it is reliable for continuous use.

Suitable for

• Apartment buildings and gated communities
• Office intercom systems
• Small commercial premises
• Homes requiring multi-monitor setups

Key specifications

• Display: 7-inch TFT LCD, 800x480 pixels, color
• Communication: Hands-free, 4-wire system
• Max outdoor panels: 2 (or 1 outdoor + 1 CCTV)
• Max internal monitors: 4 (1 master + 3 slaves)
• Power: 14.5V DC, consumption 1W standby / 7W operating
• Installation: Surface-mounted
• OSD menu: Yes
• Ringtone melodies: 16
• Adjustable parameters: Brightness, contrast, color saturation, volume
• Operating temperature: 0°C to +50°C

Recommendations

For optimal performance, pair the M670B with compatible VIDOS outdoor panels and power supplies. Ensure proper wiring according to the 4-wire system specifications. This monitor is a reliable choice for enhancing security and convenience in any property.
