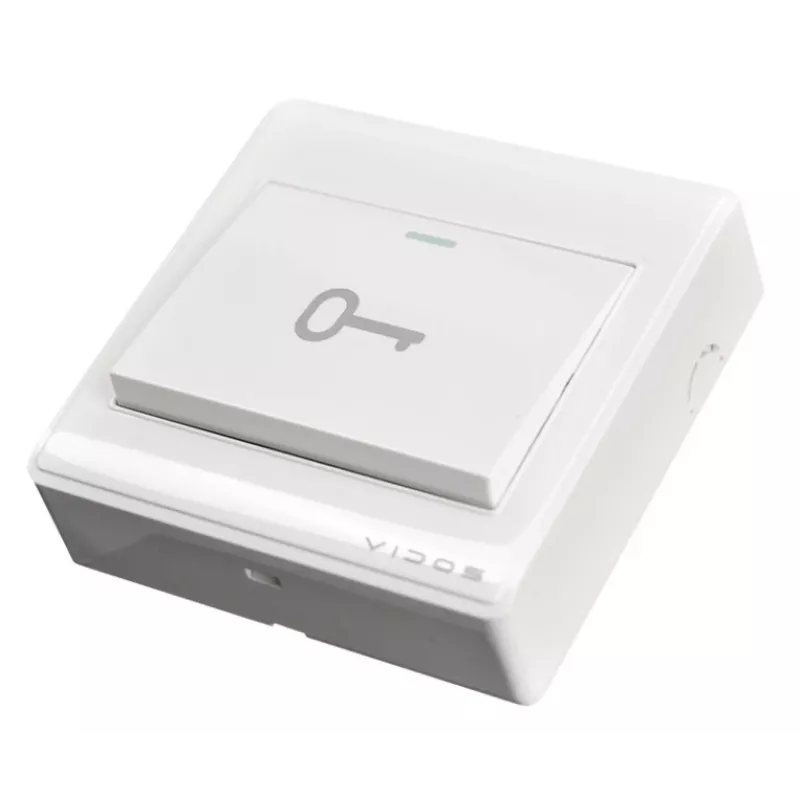

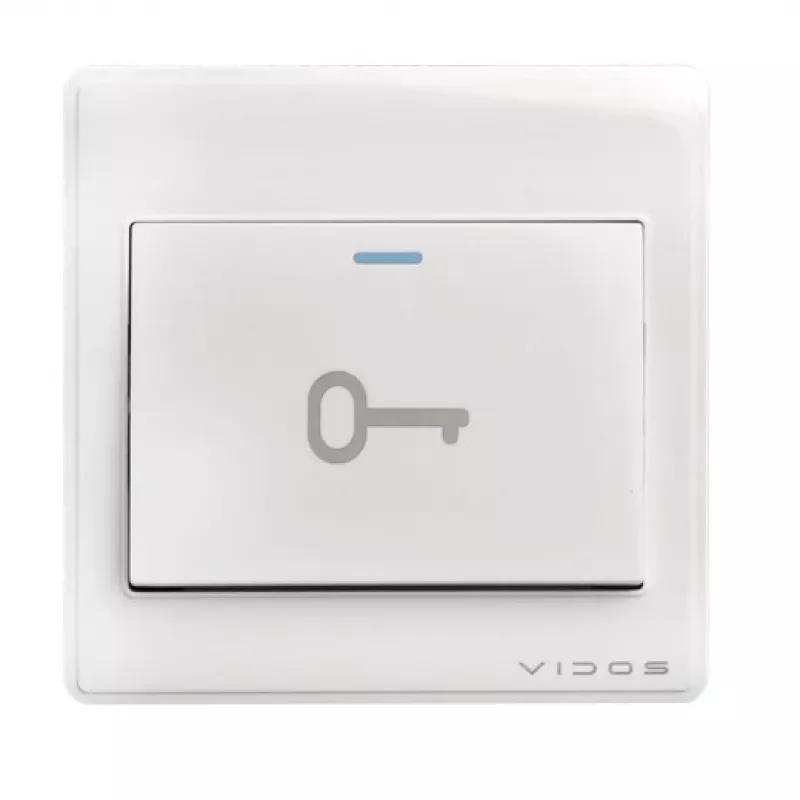

VIDOS OP07 Botón de salida – pulsador de apertura de puerta de acero inoxidable con contactos NO/NC

In a busy office building, employees and visitors need a quick, reliable way to exit secured areas without fumbling for keys or badges. The VIDOS OP07 exit button provides exactly that: a robust, surface-mounted push button that instantly releases an electric door lock. Its stainless steel faceplate and momentary action make it a staple in access control systems, intercoms, and door automation setups.

Key specifications

• Momentary push button for door release
• Contact configuration: NO (Normally Open), NC (Normally Closed), COM (Common)
• Stainless steel faceplate with durable plastic housing
• Surface mount installation
• Maximum ratings: 36V DC, 3A
• Mechanical life: 500,000 operations
• Operating temperature: -20°C to +50°C
• Operating humidity: 0-95% non-condensing
• Screw terminal connections
• Mounting screws included

Why choose it

The VIDOS OP07 is built for daily use in high-traffic environments. The stainless steel faceplate resists wear and corrosion, while the simple push-to-exit action ensures fast egress. With both NO and NC contacts, it integrates easily with most access controllers and door strikes. Its compact design and included mounting hardware make installation straightforward for any technician.

Ideal use cases

• Office buildings and commercial facilities
• Residential apartment entry systems
• Industrial sites with controlled access
• Intercom and video door phone systems
• Automatic door openers and magnetic locks

Good to know

The OP07 is a momentary switch: the circuit is active only while the button is pressed, then returns to its default state. This ensures secure re-locking after each use. It does not include an indicator light, keeping power consumption minimal and the design clean. For outdoor installations, ensure the unit is protected from direct rain or moisture, as it is rated for indoor surface mounting.
