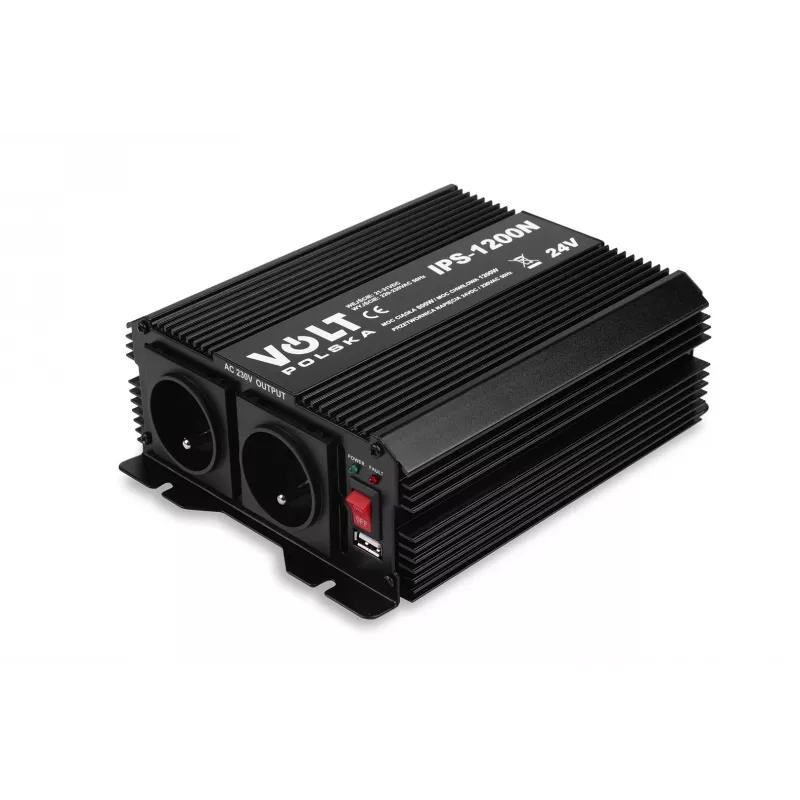

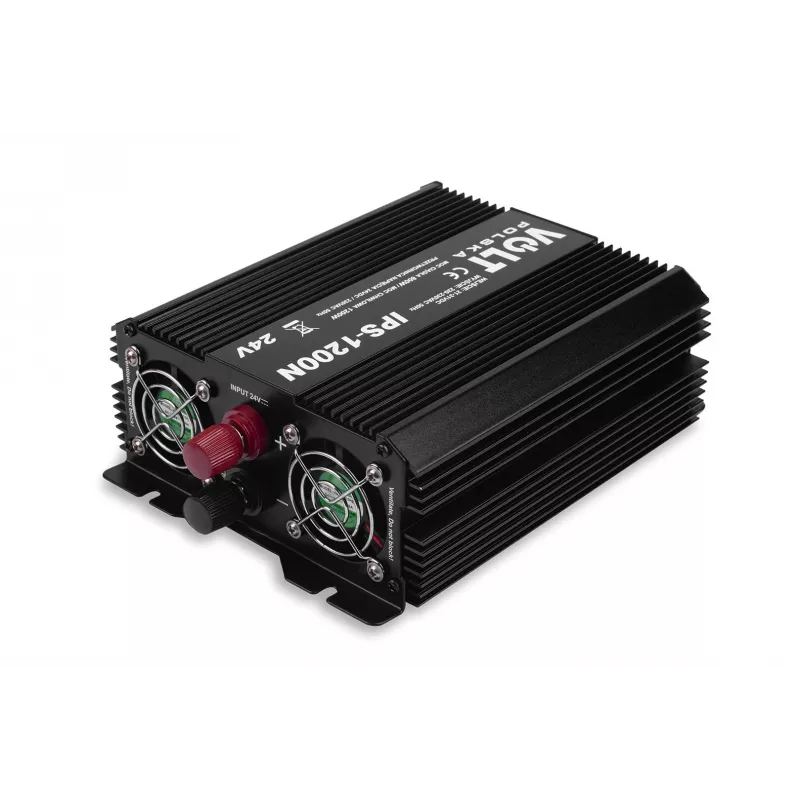

Convertidor de tensión Volt 800/1200W 24V a 230V modelo 20039

The Volt power inverter model 20039 converts 24 V DC from a vehicle or battery bank into 230 V AC mains power with a continuous rated output of 800 W and a peak surge capacity of 1200 W. It is built to provide AC power for household appliances, power tools and electronic devices where grid power is unavailable, offering a compact solution for mobile work, camping, emergency backup and off-grid installations. The unit includes basic protection features to help prevent overload and short-circuit conditions and provides a standard AC socket for connecting compatible equipment.

Advantages

The inverter supplies a stable AC output suitable for many resistive and electronic loads and can handle temporary surge currents up to 1200 W to start motors and compressors. Its rated 800 W continuous power supports sustained operation of mid-power appliances. integrated protection functions help protect both the inverter and connected devices from common electrical faults. The compact design and 24 V input make it compatible with many vehicle electrical systems and battery banks used in mobile, recreational and off-grid setups.

Suitable for

Key specifications

How to use

Install the inverter following the manufacturer’s recommendations for cooling and ventilation, and connect it to a 24 V battery or vehicle electrical system using appropriately rated cables and secure terminals. Plug the AC equipment into the inverter’s standard outlet and switch the inverter on. Monitor the load to ensure the combined consumption of connected devices does not exceed the continuous 800 W rating; allow for the peak 1200 W surge only for short starting periods. Observe the inverter’s indicators or protection cutouts to respond to overload or fault conditions.

Recommendations

For reliable operation, use a battery with sufficient capacity and a low internal resistance, route cables to minimise voltage drop, and fuse the positive supply near the battery. Avoid powering high-demand inductive loads continuously near the inverter’s maximum rating. Ensure adequate ventilation and keep the unit dry and free from dust. Refer to the product manual for detailed safety and installation instructions.
