VOLTCRAFT adaptador de medición conector CEE macho a conector CEE hembra DLA-3L 32

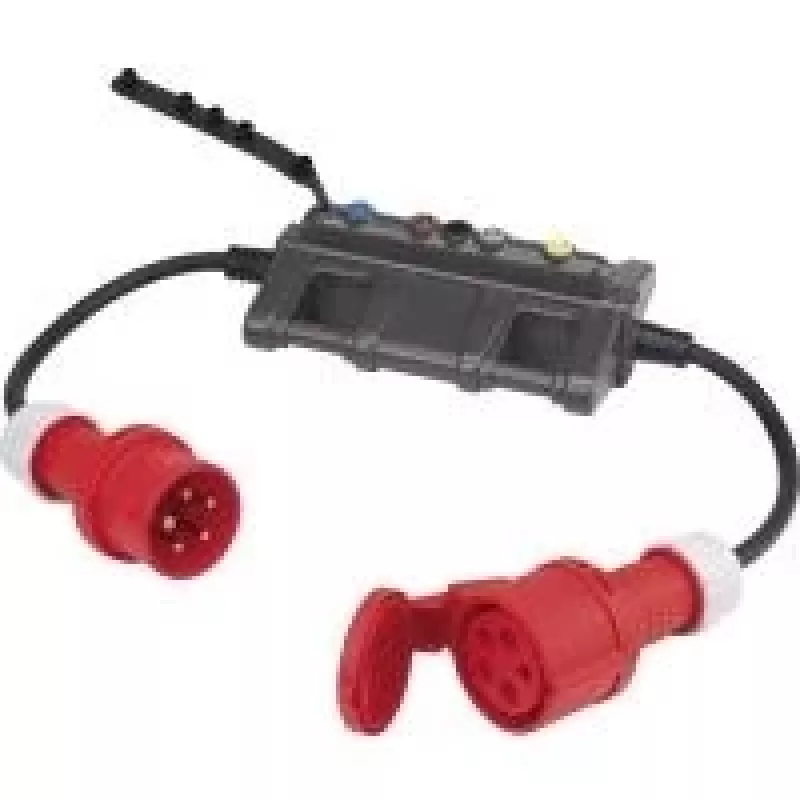

Testing three-phase electrical installations and devices requires safe access to live conductors without interrupting the circuit. The VOLTCRAFT DLA-3L 32 measuring adapter provides exactly that: it connects between a CEE 32 A plug and socket, exposing all five conductors (L1, L2, L3, N, PE) through 4 mm safety sockets for direct measurement.

Who is it for

Electricians, maintenance technicians, and test engineers who need to measure voltage, current, or perform safety checks on 400 V three-phase equipment. It is suitable for use in industrial environments, workshops, and wherever CEE 32 A connections are standard.

Main features

• Rated for 32 A and 400 V AC, matching standard CEE 5-pin connections.
• Integrated test points for L1, L2, L3, N, and PE, each with a 4 mm safety socket.
• Robust plastic housing with IP44 splash protection.
• Compact in-line design: plug on one side, socket on the other.
• Colour: blue/grey, typical for industrial CEE components.

Specifications

• Product type: Measuring adapter
• Input connector: CEE 32 A, 5-pin plug (3P+N+PE)
• Output connector: CEE 32 A, 5-pin socket (3P+N+PE)
• Rated current: 32 A
• Rated voltage: 400 V AC
• Number of phases: 3-phase
• Test points: L1, L2, L3, N, PE
• Test point connection: 4 mm safety sockets
• Protection class: IP44
• Housing material: Robust plastic
• Operating temperature range: -10 to +40 °C
• Colour: Blue/Grey

Tips

Always verify the adapter is disconnected from power before connecting or disconnecting measurement leads. Use only insulated test probes rated for the voltage being measured. For repeated testing, consider a dedicated test lead set to avoid wear on the adapter's sockets.
