VOLTCRAFT BS-802 cable sonda de cámara Ø 5,5 mm, 1 m, HD 1280x720, iluminación LED, función de giro, impermeable IP67 (VC-18667020)

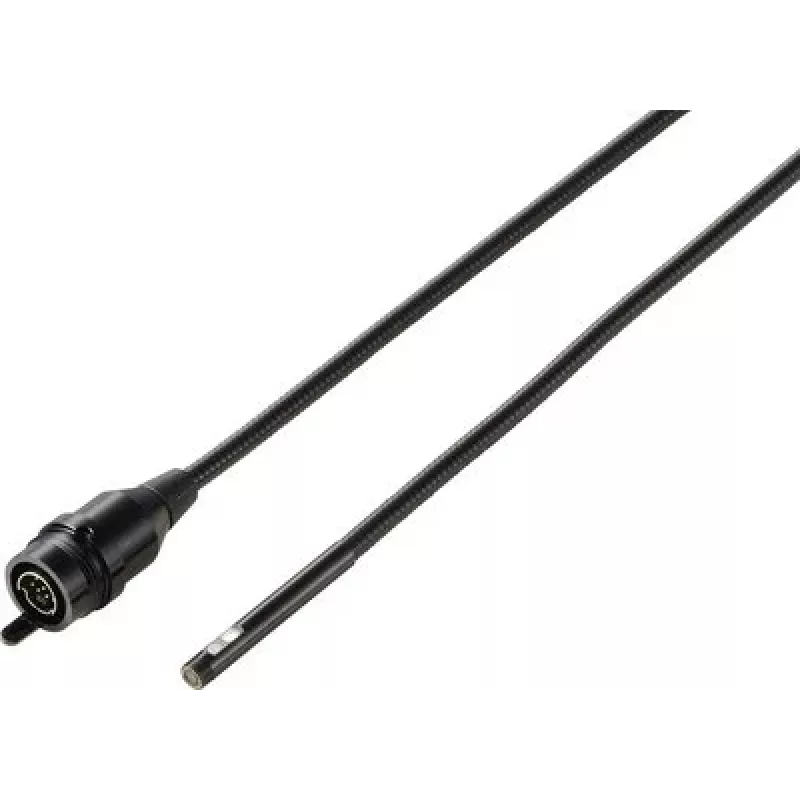

Industrial inspection camera cable with a 5.5 mm semi-rigid probe, delivering HD 1280x720 resolution and a 70° field of view for precise visual diagnostics. The probe head articulates 180° in each direction, allowing you to navigate tight spaces with ease, while six adjustable LEDs illuminate dark cavities. Rated IP67, the probe and cable withstand immersion in water up to 1 meter for 30 minutes, making it suitable for automotive, HVAC, and machinery inspections. Powered directly by the VOLTCRAFT BS-802 main unit, no additional batteries are required.

Advantages

The two-way swivel mechanism provides exceptional maneuverability, enabling you to inspect around corners and behind obstacles without repositioning the probe. The high-resolution CMOS sensor captures sharp, detailed images, while the adjustable LED brightness ensures optimal lighting in varying conditions. The semi-rigid cable maintains its shape for guided insertion yet remains flexible enough to follow complex paths. With a focal range of 30–80 mm, you can focus on both close-up details and wider areas, and the IP67 waterproof rating guarantees reliable performance in wet or dusty environments.

Suitable for

• Automotive engine and body cavity inspection
• HVAC duct and vent examination
• Industrial machinery and equipment maintenance
• Plumbing and pipe interior checks
• Electrical conduit and wiring inspection

Key specifications

• Probe diameter: 5.5 mm
• Probe length: 1 m
• Camera resolution: 1280 x 720 pixels (HD)
• Articulation: Two-way swivel, 180° each direction
• Illumination: 6 adjustable LEDs
• Waterproof rating: IP67 (probe and cable)
• Field of view: 70°
• Focal length: 30–80 mm
• Sensor type: CMOS
• Cable type: Semi-rigid
• Operating temperature: -10 to +50 °C
• Power source: Powered by main unit
• Probe head material: Stainless steel / ABS
• Compatibility: VOLTCRAFT BS-802 Endoscope

Recommendations

For optimal results, pair this camera cable with the VOLTCRAFT BS-802 endoscope main unit. The combination offers a complete inspection solution with live viewing and recording capabilities. The probe's small diameter and articulation make it ideal for inspecting engine cylinders, wall cavities, and other hard-to-reach areas. Regular cleaning of the lens and LEDs after use will maintain image clarity and prolong the life of the probe.
