VOLTCRAFT cable de medición altamente flexible conector de láminas de 2 mm a conector de láminas de 2 mm, 0,6 m, verde, 2,2 A, MSB-200 (VC-8557715)

Rated for 2.2 A and 30 V AC / 60 V DC, this VOLTCRAFT measuring lead delivers reliable signal integrity in a highly flexible, green PVC jacket. The 0.6 m length with 2 mm lamella plugs on both ends is ideal for tight test setups and frequent reconnection.

Overview

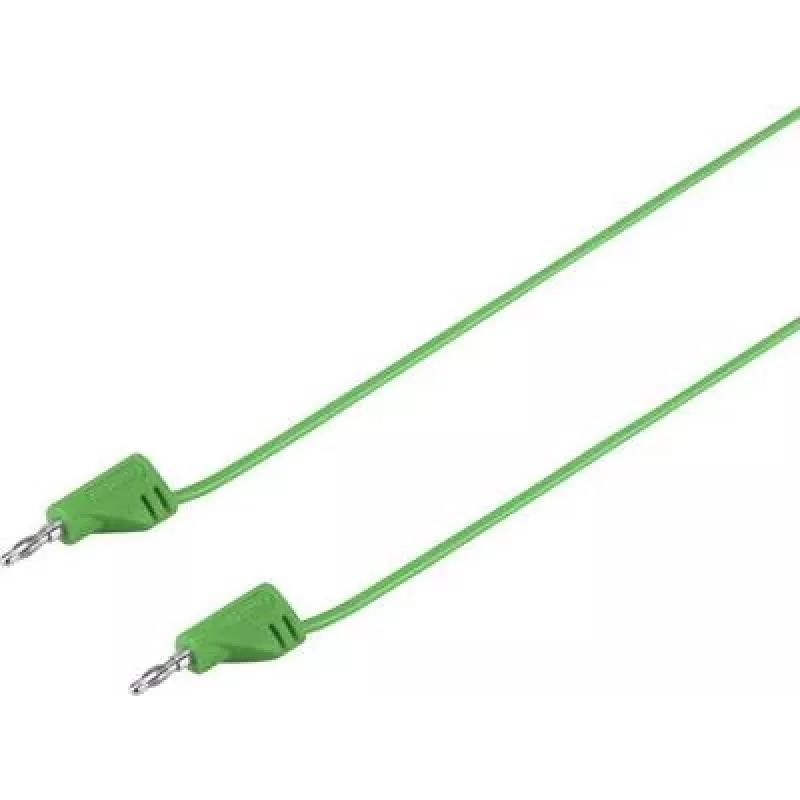

The VOLTCRAFT MSB-200 is a single highly flexible measuring lead terminated with 2 mm lamella plugs on both ends. Its 0.25 mm² copper conductor and PVC insulation ensure low resistance and safe operation up to 2.2 A. The green colour aids quick identification in multi-lead configurations.

What stands out

• Highly flexible cable withstands repeated bending without damage.
• 2 mm lamella plugs provide secure contact in standard sockets.
• Rated for CAT I measurements up to 60 V DC.
• RoHS compliant construction.

Technical details

• Connector A: 2 mm lamella plug
• Connector B: 2 mm lamella plug
• Cable length: 0.6 m
• Rated current: 2.2 A
• Rated voltage: 30 V AC / 60 V DC
• Safety category: CAT I
• Conductor cross-section: 0.25 mm²
• Conductor material: Copper
• Insulation: PVC
• Operating temperature: -15 °C to +70 °C
• Colour: Green
• RoHS compliant: Yes

Our verdict

A dependable, flexible test lead for low-energy measurements, combining durability with precise connectivity in a compact 0.6 m length.
