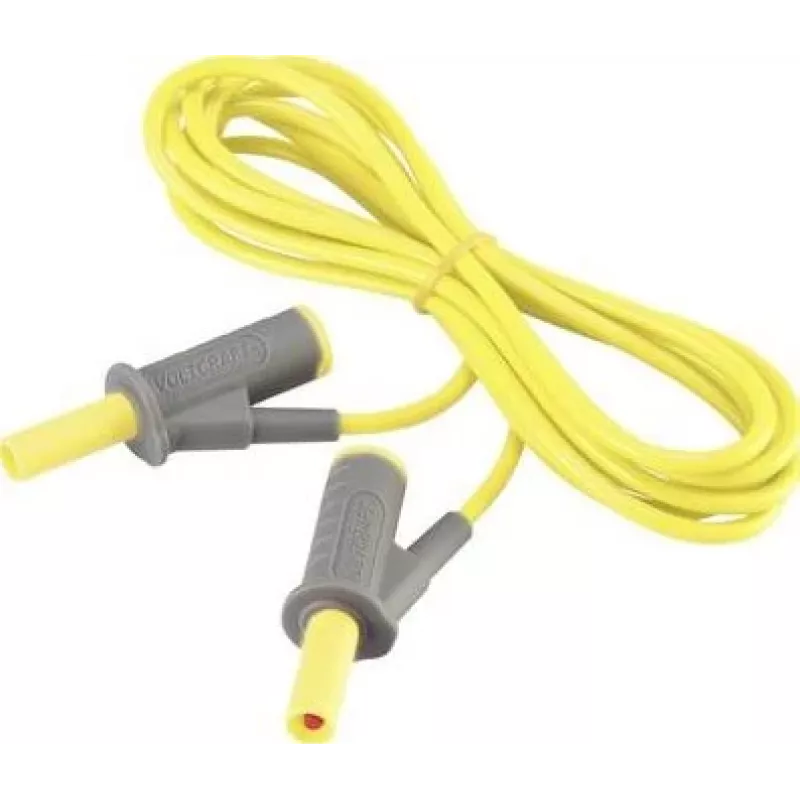

VOLTCRAFT MSB-501 cable de medición de seguridad, banana apilable de 4 mm a igual, 2 m, amarillo, CAT III 1000 V / CAT IV 600 V, 16 A VC-8063480

The VOLTCRAFT MSB-501 sets itself apart from ordinary test leads with its stackable 4 mm banana plugs, allowing multiple connections without sacrificing safety or signal integrity. Built for demanding measurement tasks, this 2-metre yellow lead combines robust construction with precise electrical performance, making it a reliable choice for professionals who need consistent results in the lab or in the field.

Highlights

• Stackable 4 mm safety banana plugs on both ends for versatile connection options
• Rated for CAT III 1000 V and CAT IV 600 V, ensuring safe use in high-energy circuits
• Supports up to 16 A current, suitable for a wide range of testing scenarios
• Nickel-plated brass contacts with low contact resistance (< 30 mΩ) for accurate readings
• Flexible PVC insulation with a temperature range of -15 to +70 °C for durability
• Complies with IEC 61010-031 and RoHS, meeting international safety standards

In daily use

The MSB-501 excels in environments where reliability and safety are paramount. Its stackable plugs let you daisy-chain leads or connect multiple instruments to the same point, reducing clutter and setup time. The bright yellow jacket improves visibility, helping you quickly identify the lead among other cables. Whether you're troubleshooting industrial equipment, performing laboratory experiments, or conducting field measurements, this lead delivers stable performance with minimal signal loss. The high insulation resistance (> 1 GΩ) and rugged construction ensure long-term dependability, while the wide operating temperature range means it can handle both cold storage areas and hot machinery spaces.

Full specifications

• Product type: Safety test lead
• Connector A: 4 mm safety banana plug, stackable
• Connector B: 4 mm safety banana plug, stackable
• Cable length: 2 m
• Colour: Yellow
• Rated voltage: 1000 V AC/DC
• Rated current: 16 A
• Measurement category: CAT III 1000 V, CAT IV 600 V
• Insulation material: PVC
• Conductor material: Copper
• Contact material: Nickel-plated brass
• Contact resistance: < 30 mΩ
• Insulation resistance: > 1 GΩ
• Operating temperature: -15 to +70 °C
• Safety standard: IEC 61010-031
• Compliance: RoHS

Final note

The VOLTCRAFT MSB-501 is a professional-grade test lead that combines safety, flexibility, and precision. Its stackable design and high ratings make it an essential accessory for any serious multimeter user.
