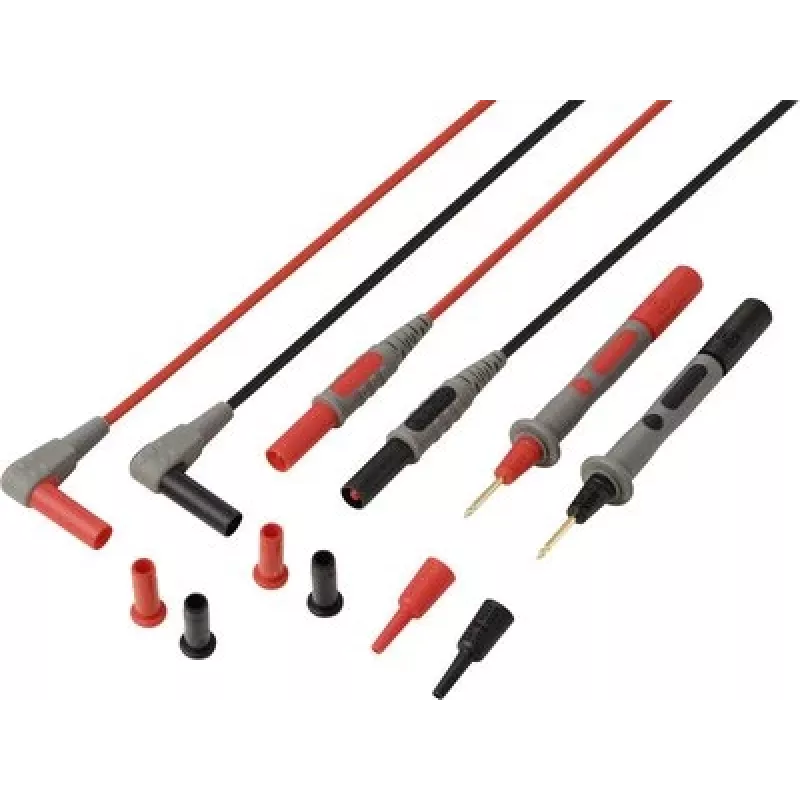

VOLTCRAFT MSL-820 cables de medición de PVC Premium, contactos dorados, 1,2 m, 1 par (rojo/negro) VC-17312685

In electronics labs and field service, precise measurements demand reliable connections. The VOLTCRAFT MSL-820 Premium PVC Test Leads deliver exactly that: a pair of 1.2 m safety test leads with gold-plated contacts for low resistance and high signal integrity. Each lead features straight 4 mm banana plugs on both ends, stackable for convenient daisy-chaining. The flexible PVC insulation is rated for CAT III 1000 V and CAT IV 600 V, ensuring safe operation in demanding environments. With a 10 A current rating and 0.75 mm² cross-section, these leads handle most multimeter and test equipment applications. The set includes one red and one black lead, colour-coded for easy polarity identification.

Key specifications

• Length: 1.2 m per lead
• Connectors: 4 mm banana plug (straight) on both ends, stackable
• Contact material: Gold-plated brass
• Insulation: PVC
• Current rating: 10 A
• Voltage rating: 1000 V CAT III / 600 V CAT IV
• Cable cross-section: 0.75 mm²
• Colours: Red and black (1 pair)
• Operating temperature: -15 °C to +70 °C
• Compliance: EN 61010-031
• Internal resistance: < 30 mΩ
• Insulation resistance: > 1 GΩ

Why choose it

Gold-plated contacts minimise oxidation and ensure stable, low-resistance connections over time. The stackable banana plugs allow multiple leads to be connected to a single point, simplifying complex measurement setups. The robust PVC jacket resists abrasion and remains flexible even in cold conditions, making these leads suitable for both bench and field use. With safety ratings up to CAT III 1000 V, they provide peace of mind when working on high-energy circuits.

Ideal use cases

• Connecting multimeters to circuits for voltage, current, and resistance measurements
• Bench testing of electronic components and prototypes
• Field service and troubleshooting in industrial environments
• Educational laboratories and electronics training
• Stacking multiple connections for simultaneous measurements

Good to know

The leads are compliant with EN 61010-031, the international safety standard for test leads. They are designed for use with instruments that accept 4 mm banana plugs. The set includes two leads: one red and one black, allowing clear identification of positive and negative connections. For best performance, ensure plugs are fully inserted and avoid exceeding the specified ratings.
