WAGO 2002-1407 borne de protección de 4 conductores 0,25-2,5 mm² 4 mm² verde-amarillo

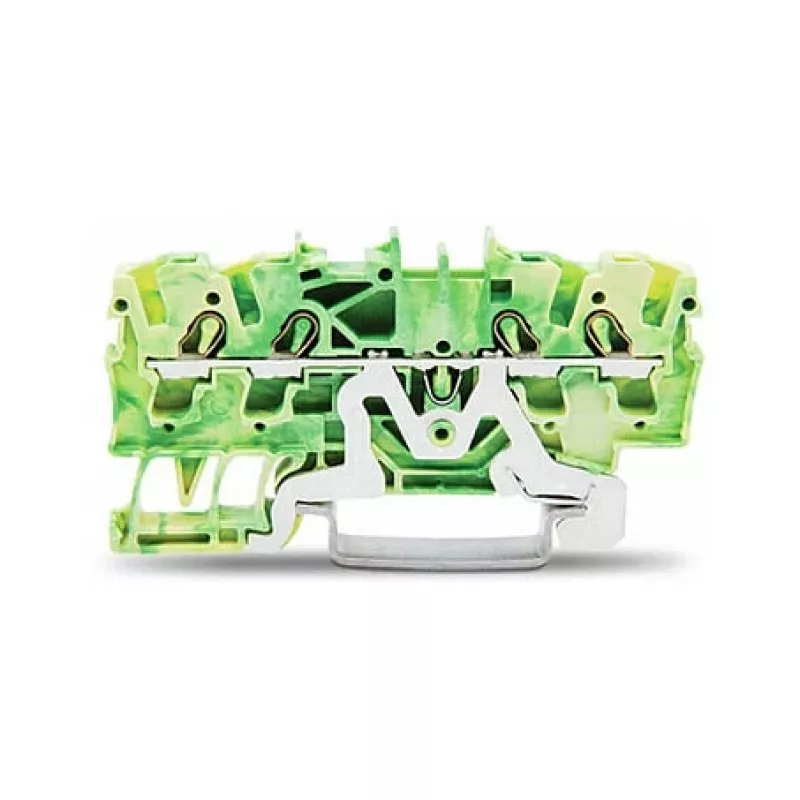

The WAGO 2002-1407 is a 4-conductor protective conductor (PE) terminal block from the TOPJOB® S series, designed for reliable and safe grounding connections in electrical installations. With a nominal cross-section of 2.5 mm² and a rated current of 24 A, it accommodates solid, stranded, and fine-stranded conductors from 0.25 to 4 mm² (22-12 AWG). The green-yellow housing clearly identifies it as a protective conductor terminal, ensuring compliance with safety standards.

Advantages

• Push-in CAGE CLAMP® connection technology for fast, tool-free wiring
• Compact 4-conductor design saves space on DIN-rail 35
• V0 flammability class per UL94 for high fire safety
• Wide operating temperature range from -35 to +105 °C
• Suitable for solid, stranded, and fine-stranded conductors with or without ferrules

Suitable for

• Protective conductor (PE) connections in control cabinets and distribution boards
• Industrial automation and building installation
• Grounding of electrical equipment and machinery

Key specifications

• Series: TOPJOB® S
• Number of conductors: 4
• Connection type: Protective conductor (PE)
• Nominal cross-section: 2.5 mm²
• Connection technology: Push-in CAGE CLAMP®
• Color: Green-yellow
• Mounting type: DIN-rail 35
• Rated current (IEC): 24 A
• Stripping length: 9 – 10 mm
• Insulation material: Polyamide 66 (PA 66)
• Solid conductor size: 0.25 - 4 mm² / 22 - 12 AWG
• Fine-stranded conductor size: 0.25 - 4 mm² / 22 - 12 AWG
• Fine-stranded with ferrule size: 0.25 - 2.5 mm² / 22 - 14 AWG
• Pollution degree: 3
• Flammability class: V0 per UL94
• Operating temperature: -35 to +105 °C
• Number of potentials: 1 (PE)
• Number of clamping units: 4

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length (9-10 mm) for reliable connection. Suitable for use in industrial environments with pollution degree 3.
